GENERATOR (CE SPEC FIGURE 8-12. AC BOX AT PLATFORM INSTALLATION - 220V CEE7 SIDE GROUND 2 X 4 BOX WITH 4000W GENERATOR

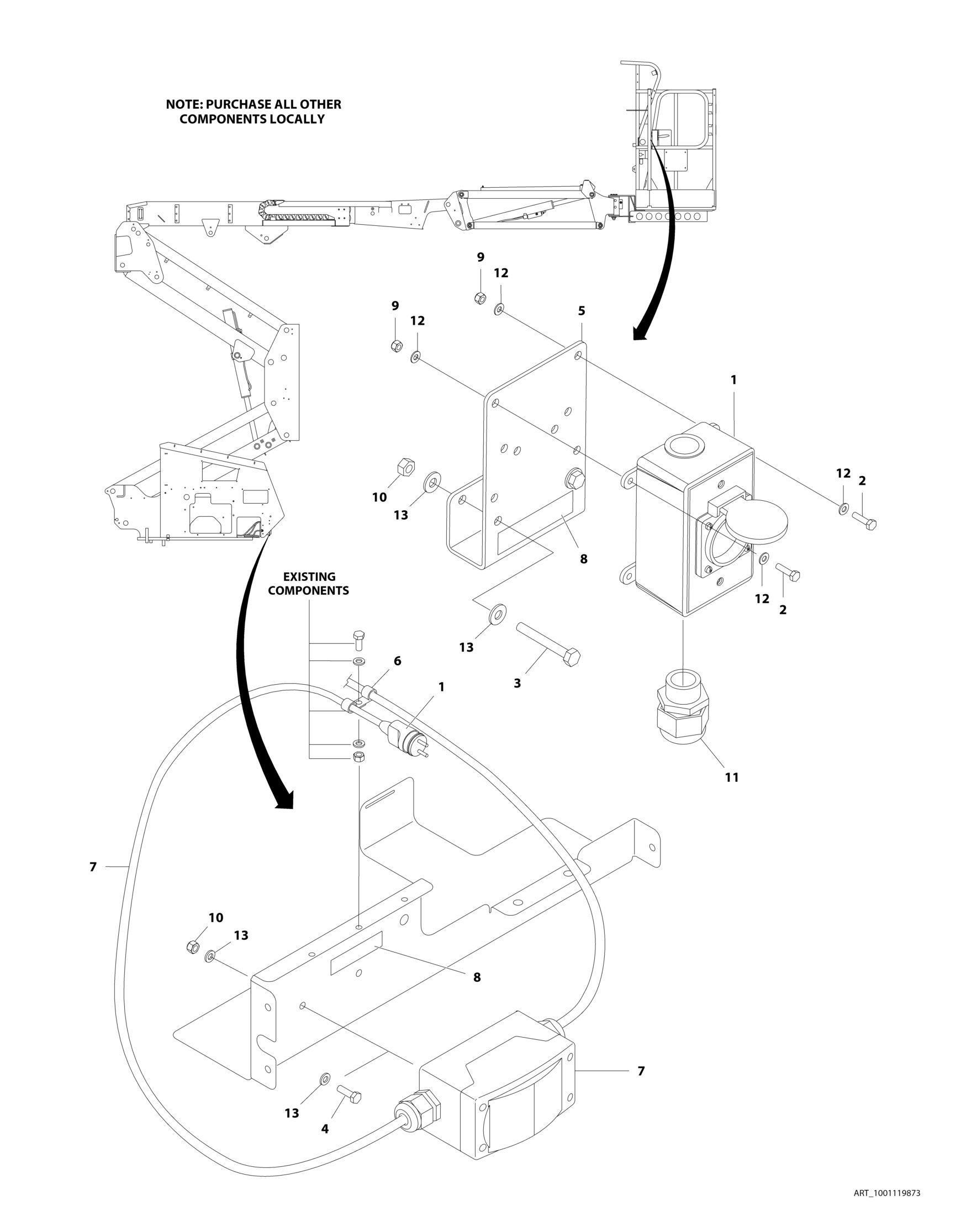

FIGURE 8-11. AC BOX AT PLATFORM INSTALLATION - 220V CEE7 SIDE GROUND 2 X 4 BOX WITHOUT 4000W GENERATOR (CE SPEC)

FIGURE 8-11. AC BOX AT PLATFORM INSTALLATION - 220V CEE7 SIDE GROUND 2 X 4 BOX WITHOUT 4000W GENERATOR (CE SPEC)

ITEM PART NUMBER QTY

DESCRIPTION

1001119873 Ref AC BOX AT PLATFORM INSTALLATION - 220V CEE7 SIDE GROUND WITH 2IN X 4IN BOX 1 0275453 1 Receptacle Box Kit (See Separate Breakdown in this Section) 2 0700408 4 Bolt, M4 x 16 3 0700618 2 Bolt M6 x 50 4 0760610 2 Bolt M6 x 20 5 1001193018 1 Bracket 6 1320043 1 Clamp 7 2902549 1 Breaker Box Kit (See Separate Breakdown in this Section) 8 3252507 2 Decal - 220V - 50/60Hz 9 3290405 4 Nut M4 10 3290605 4 Nut M6 11 4460968 1 Connector, Strain Relief 12 4811400 8 Washer M4 13 4811700 8 Washer M6

REV

B
