CE SPECS FIGURE 8-11. AC BOX AT PLATFORM INSTALLATION - 220V CEE7 SIDE GROUND 2 X 4 BOX WITHOUT 4000W

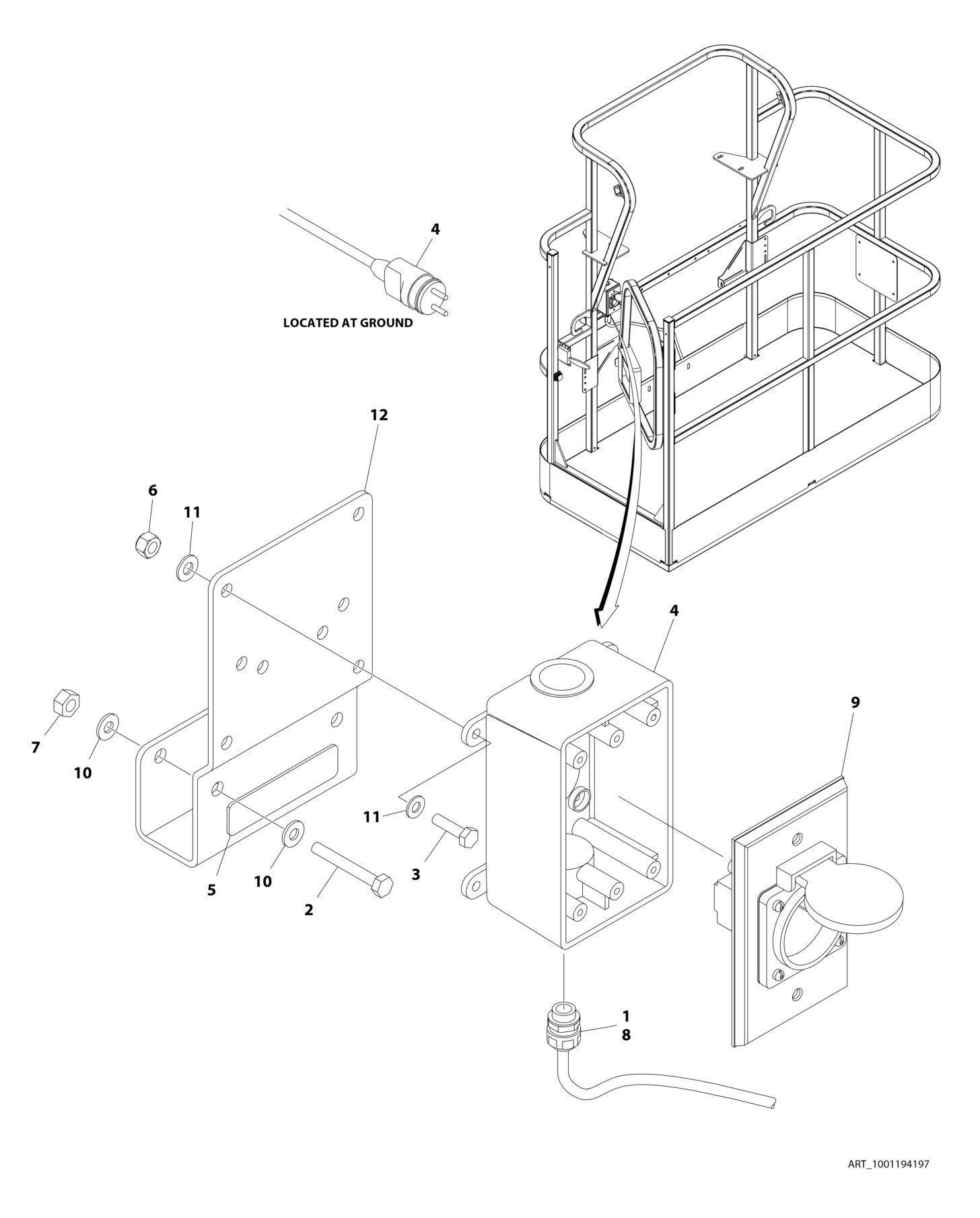

FIGURE 8-10. AC BOX AT PLATFORM INSTALLATION - 220V CEE7 POST GROUND 2 X 4 BOX WITH 4000W GENERATOR (CE SPECS)

FIGURE 8-10. AC BOX AT PLATFORM INSTALLATION - 220V CEE7 POST GROUND 2 X 4 BOX WITH 4000W GENERATOR (CE SPECS)

ITEM PART NUMBER QTY

DESCRIPTION

1001194197 Ref AC BOX AT PLATFORM INSTALLATION 1 0100020 AR Sealant, Pipe 2 0641416 2 Bolt 1/4 x 2 3 0700408 4 Bolt M4 x 16 4 0861731 1 Box, Switch 5 3251242 1 Decal - 240V/50Hz 6 3290405 4 Nut M4 7 3311405 2 Nut 1/4 8 4460662 1 Connector, Strain Relief 9 4461244 1 Receptacle 10 4711400 4 Washer 1/4 11 4811400 8 Washer M4 12 1001193018 1 Bracket, AC Receptacle 13 4460806 2 Terminal, Fork (Not Shown) 14 1001205958 1 Terminal (Not Shown)

REV

B
