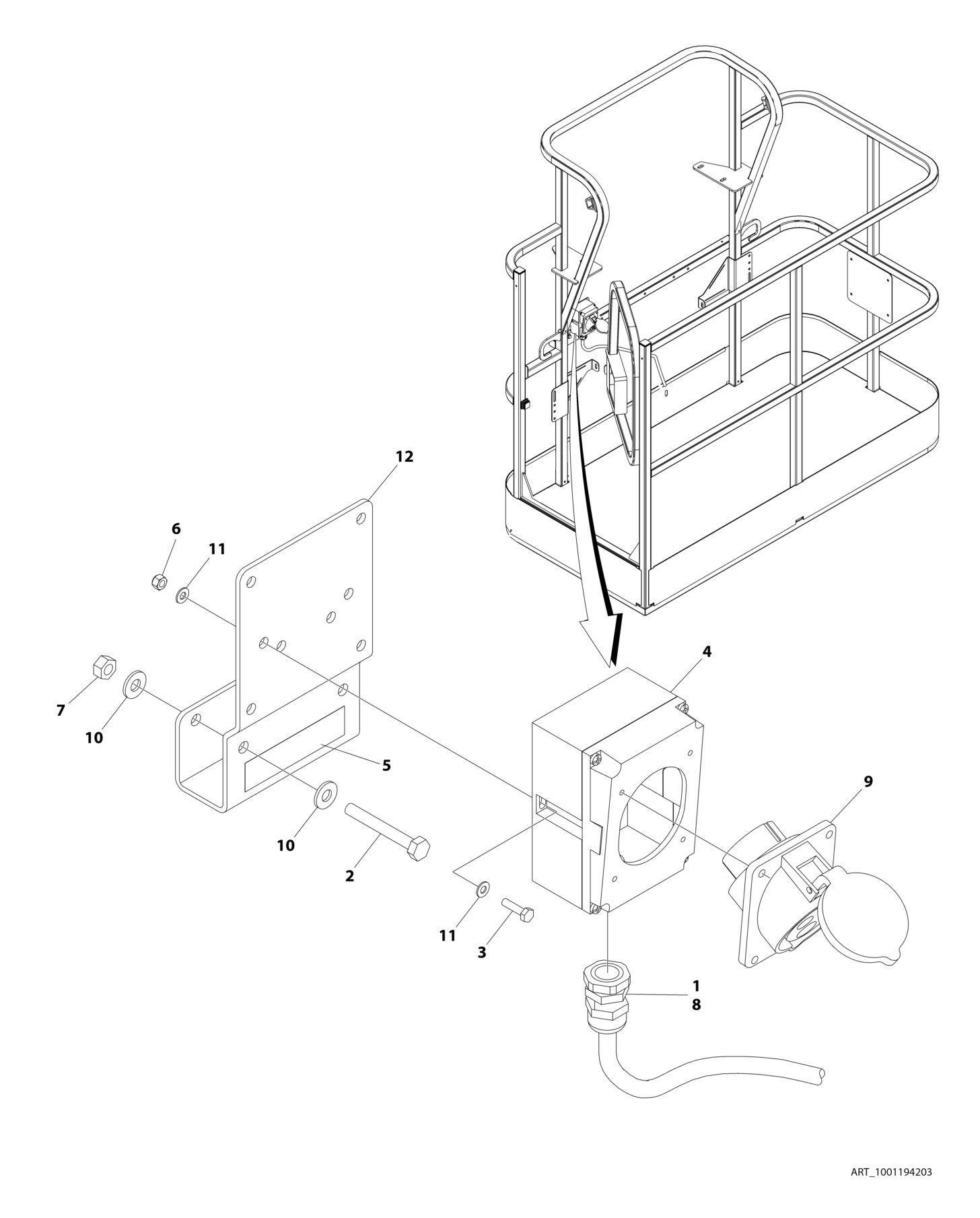

FIGURE 8-5. AC BOX AT PLATFORM INSTALLATION - 110V IEC YELLOW WITH 4000W GENERATOR (CE SPECS

FIGURE 8-5. AC BOX AT PLATFORM INSTALLATION - 110V IEC YELLOW WITH 4000W GENERATOR (CE SPECS)

FIGURE 8-5. AC BOX AT PLATFORM INSTALLATION - 110V IEC YELLOW WITH 4000W GENERATOR (CE SPECS)

ITEM PART NUMBER QTY

DESCRIPTION

1001194203 Ref AC BOX AT PLATFORM INSTALLATION 1 0100020 AR Sealant, Pipe 2 0641416 2 Bolt 1/4 x 2 3 0700408 2 Bolt M4 x 16 4 0861781 1 Box, Switch 5 1705325 1 Decal - 110V 6 3290405 2 Nut M4 7 3311405 2 Nut 1/4 8 4460968 1 Connector, Strain Relief 9 4461198 1 Receptacle 10 4711400 4 Washer 1/4 11 4811400 4 Washer M4 12 1001193018 1 Bracket, AC Receptacle

REV

B
