FIGURE 8-6. AC BOX AT PLATFORM INSTALLATION - 220V (CSA SPEC

from JLG 340AJ PVC 2001 2007 Parts Manual - PDF DOWNLOAD

by www.heydownloads.com

FIGURE 8-31. BREAKER BOX INSTALLATION

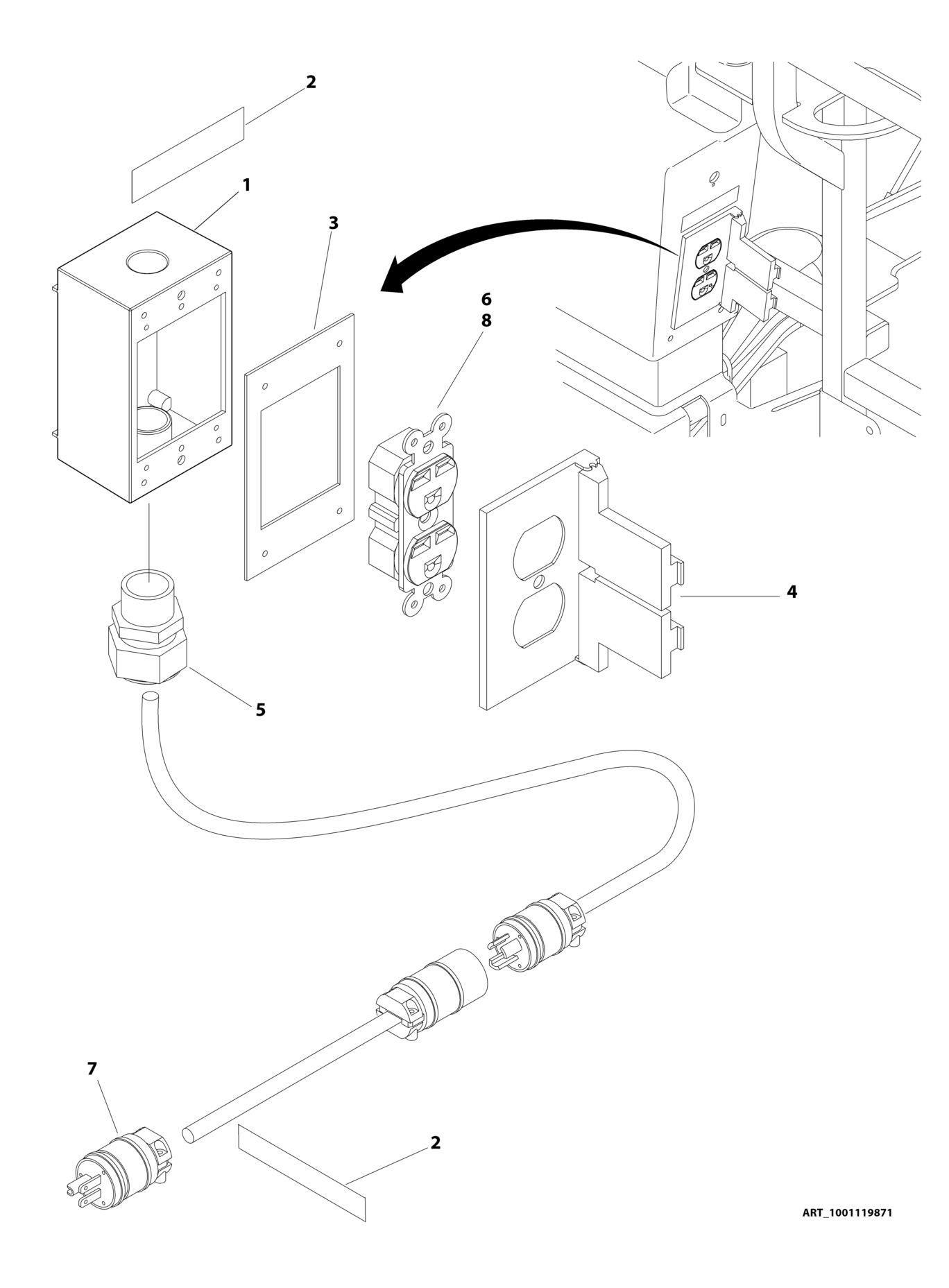

FIGURE 8-6. AC BOX AT PLATFORM INSTALLATION - 220V (CSA SPEC)

ITEM PART NUMBER QTY

DESCRIPTION

1001119871 Ref AC BOX AT PLATFORM INSTALLATION - 220V 1 0860038 1 Box, Switch 2 3252507 2 Decal - 220V - 50/60Hz 3 3960422 1 Gasket 4 4060092 1 Shield, Weather 5 4460071 1 Connector, Strain Relief 6 4460125 1 Receptacle 7 4460233 1 Plug, Male 8 4460315 3 Terminal, Spade

FIGURE 8-6. AC BOX AT PLATFORM INSTALLATION - 220V (CSA SPEC

Next Article

FIGURE 8-31. BREAKER BOX INSTALLATION

ITEM PART NUMBER QTY

DESCRIPTION

REV
