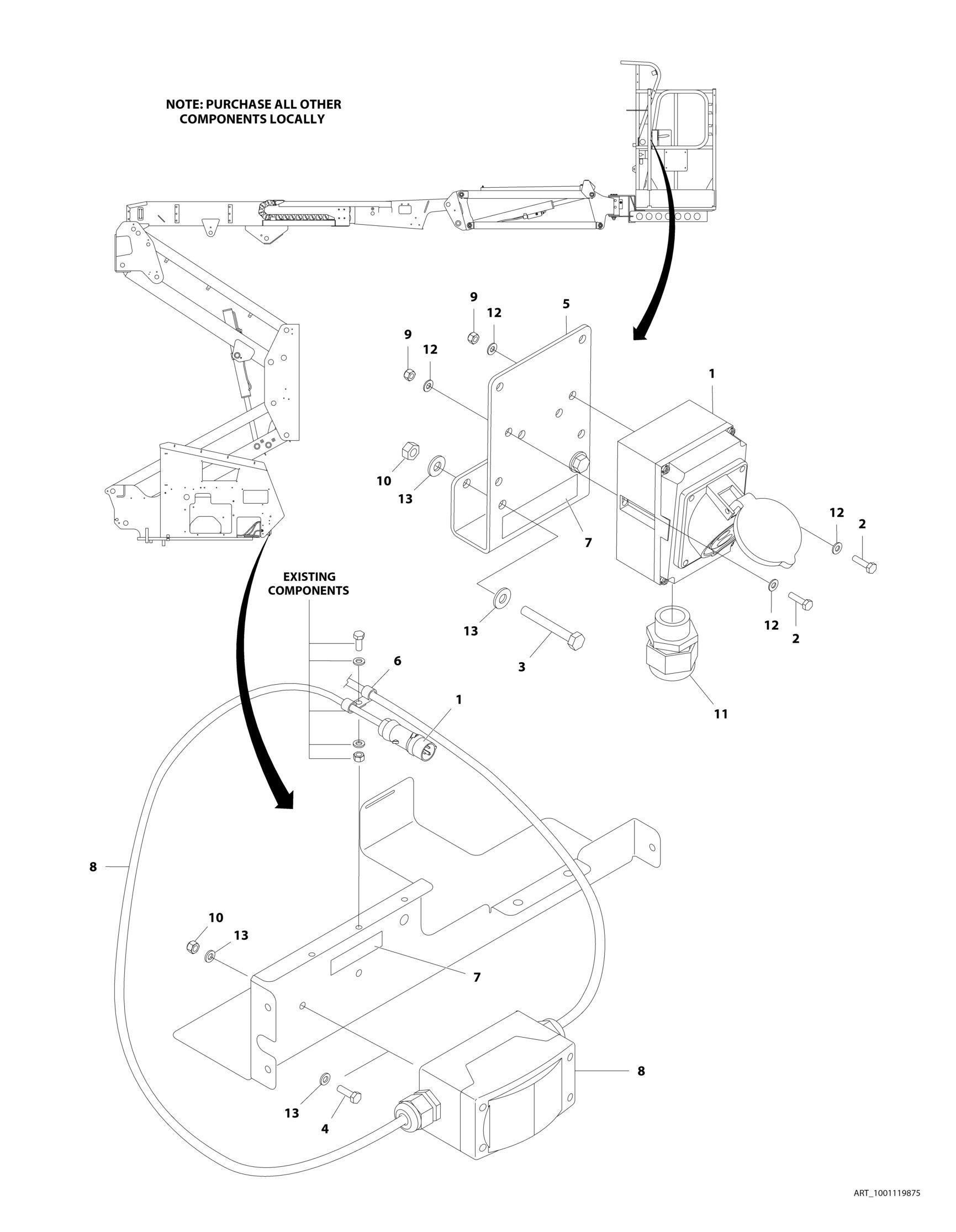

FIGURE 8-4. AC BOX AT PLATFORM INSTALLATION - 110V IEC YELLOW WITHOUT 4000W GENERATOR (CE SPEC

FIGURE 8-4. AC BOX AT PLATFORM INSTALLATION - 110V IEC YELLOW WITHOUT 4000W GENERATOR (CE SPEC)

FIGURE 8-4. AC BOX AT PLATFORM INSTALLATION - 110V IEC YELLOW WITHOUT 4000W GENERATOR (CE SPEC)

ITEM PART NUMBER QTY DESCRIPTION REV

1001119875 Ref AC BOX AT PLATFORM INSTALLATION - 110V IEC YELLOW B 1 0275216 1 Receptacle Box Kit (See Separate Breakdown in this Section) 2 0700408 2 Bolt M4 x 16 3 0700618 2 Bolt M6 x 50 4 0760610 2 Bolt M6 x 20 5 1001193018 1 Bracket 6 1320043 1 Clamp 7 1705325 2 Decal - 120V - 50Hz 8 2902549 1 Breaker Box Kit (See Separate Breakdown in this Section) 9 3290405 2 Nut M4 10 3290605 4 Nut M6 11 4460968 1 Connector, Strain Relief 12 4811400 4 Washer M4 13 4811700 8 Washer M6
