FIGURE 8-2. AC BOX AT PLATFORM INSTALLATION - LOCALLY SUPPLIED (CE SPEC FIGURE 8-3. AC BOX AT PLATFORM INSTALLATION - 110V (ANSI, ANSI EXPORT, CHINA, CSA AND JAPANESE SPECS) ...................................................................................................................................................................................................... 344
ITEM PART NUMBER QTY
DESCRIPTION
1001130588 Ref AC BOX AT PLATFORM INSTALLATION - LOCALLY SUPPLIED COMPONENTS 1 0760610 2 Bolt M6 x 20 2 1320043 1 Clamp 3 2902549 1 Breaker Box Kit (See Separate Breakdown in this Section) 4 3252507 1 Decal - 220V - 50/60Hz 5 3290605 2 Nut M6 6 4460121 3 Cap, Wire (Not Shown - Located inside Receptacle Box) 7 4811700 4 Washer M6
REV
A
ITEM PART NUMBER QTY
DESCRIPTION

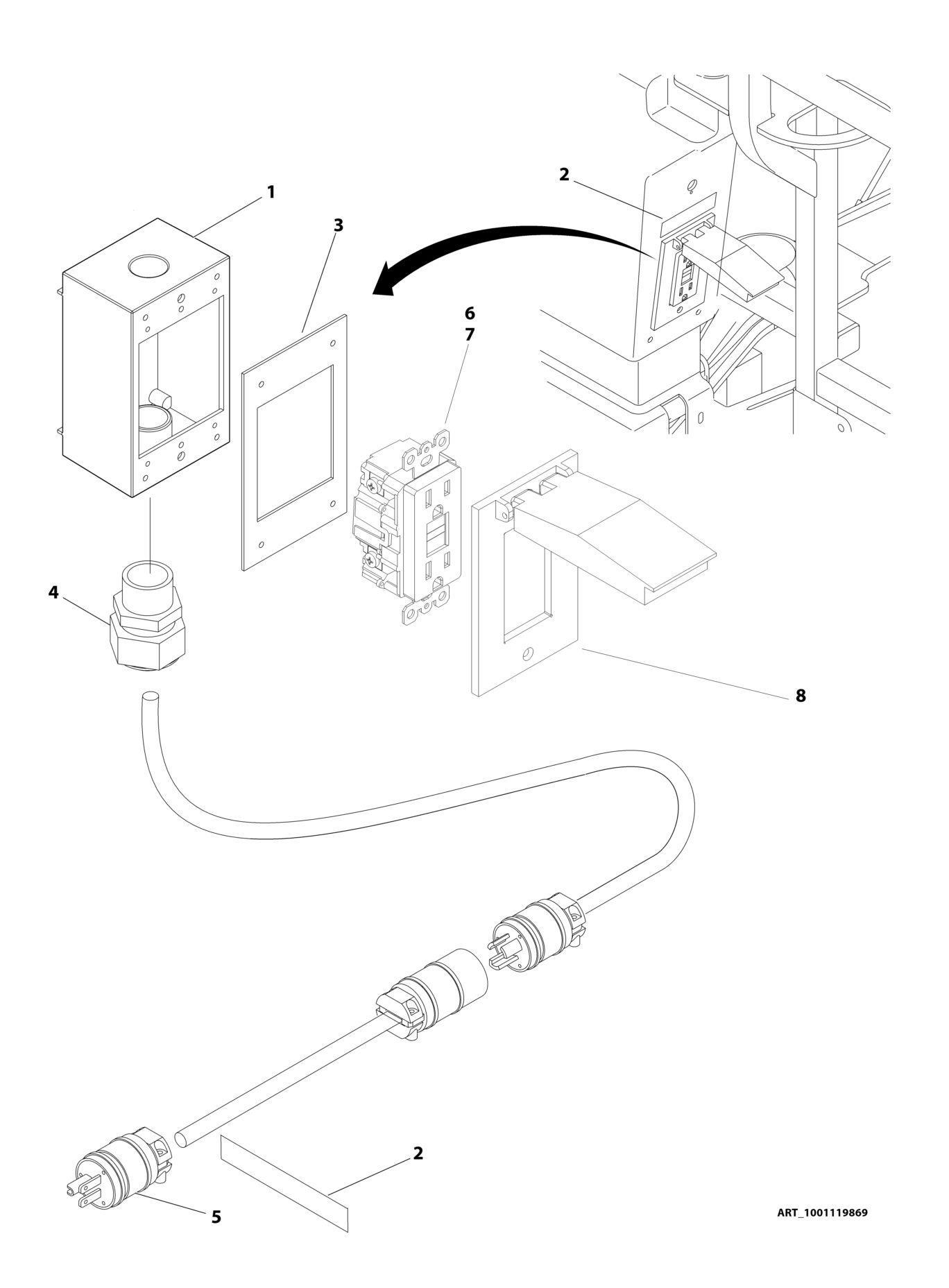

1001119869 Ref AC BOX AT PLATFORM INSTALLATION - 110V 1 0860038 1 Box, Switch 2 3251243 2 Decal - 120V - 60Hz 3 3960422 1 Gasket 4 4460071 1 Connector, Strain Relief 5 4460205 1 Plug, Male 6 4460315 3 Terminal, Spade 7 4460346 1 Receptacle 8 1001110873 1 Shield, Cover
REV
A
