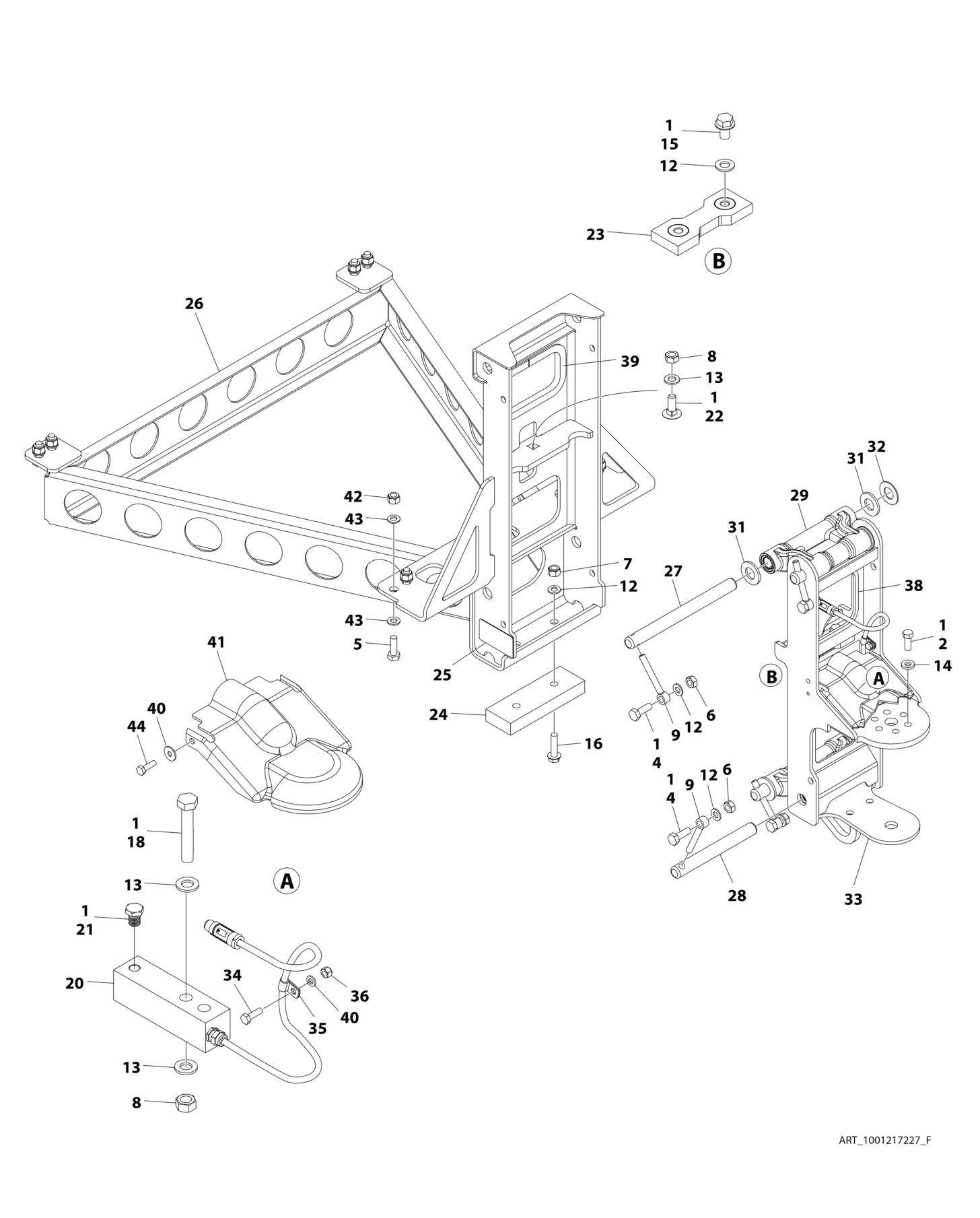

FIGURE 4-10. PLATFORM SUPPORT INSTALLATION - WITH 1 CELL LSS (PVC 2007
ITEM PART NUMBER QTY DESCRIPTION
REV
1001217227 Ref PLATFORM SUPPORT INSTALLATION - WITH 1 CELL LSS F 1 0100011 AR Compound, Locking 2 0681608 6 Bolt 3/8 x 1 4 0761014 4 Bolt M10 x 30 5 0761215 8 Bolt M12 x 35 6 3291001 4 Nut M10 7 3291005 AR Nut M10 8 3291201 3 Nut M12 9 3841143 4 Keeper, Pin 12 4812000 AR Washer M10 13 4812100 5 Washer M12 14 4891600 6 Washer 3/8 15 5251008 2 Bolt M10 x 16 16 5251016 2 Bolt M10 x 40 18 1001098828 2 Bolt M12 x 70 Grade 10.9 20 1001247468 1 Cell, Load Sensing 21 1001188622 1 Screw 22 1001188844 1 Bolt M12 x 35 23 1001190985 1 Pad, Wear 24 1001200491 1 Pad, Wear 25 1001216630 2 Decal - Tie Down/No Lift 26 1001217228 1 Platform Support 27 1001217242 2 Pin 28 1001217243 2 Pin 29 1001217244 2 Link 31 1001217253 8 Bearing, Thrust 32 1001217254 4 Bearing, Thrust 33 1001217267 1 Support 34 0760610 AR Bolt M6 x 20 35 1320136 1 Clamp 36 3290605 1 Nut M6 38 4060804 14.4 in/ 36.5cm Shield 39 4060805 15.9 in/ 40.5 cm Shield 40 4811702 3 Washer M6 41 1001228627 1 Cover 42 3291205 AR Nut M12 43 5241200 AR Washer M12 44 0760606 AR Bolt M6 x 12
