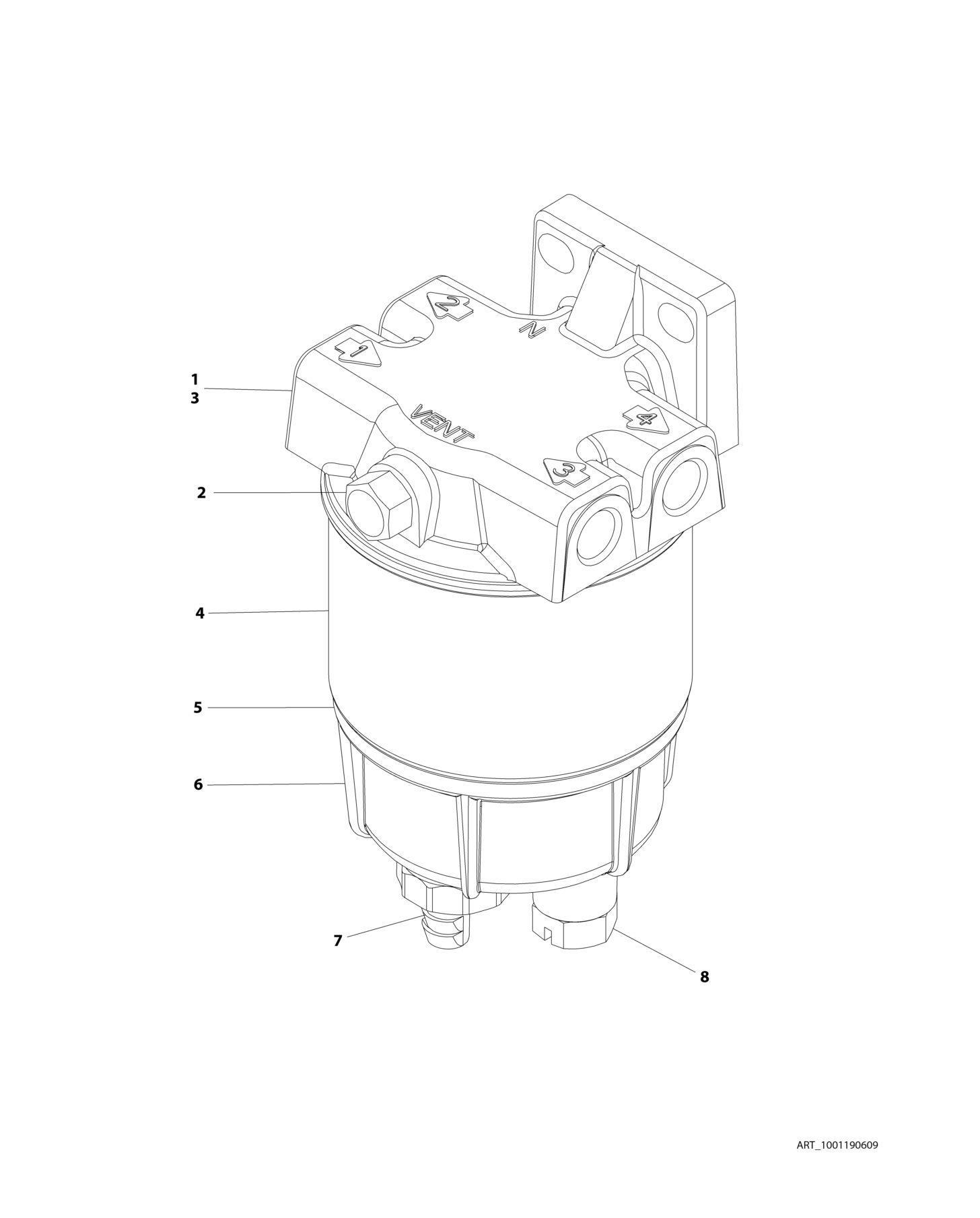

FIGURE 3-19. FUEL/WATER SEPARATOR ASSEMBLY (KUBOTAT ENGNIES) (PVC2007)

ITEM PART NUMBER QTY DESCRIPTION REV

1001190609 Ref FUEL/WATER SEPARATOR ASSEMBLY - DIESEL ENGINES B 1 70005293 1 Head, Mounting 2 70005294 1 Plug 3 70005295 1 Gasket, Head 4 70005296 1 Element 5 70005297 1 O-Ring 6 70002901 1 Bowl 7 70004070 1 Drain, Self Venting 8 70004069 1 Plug
