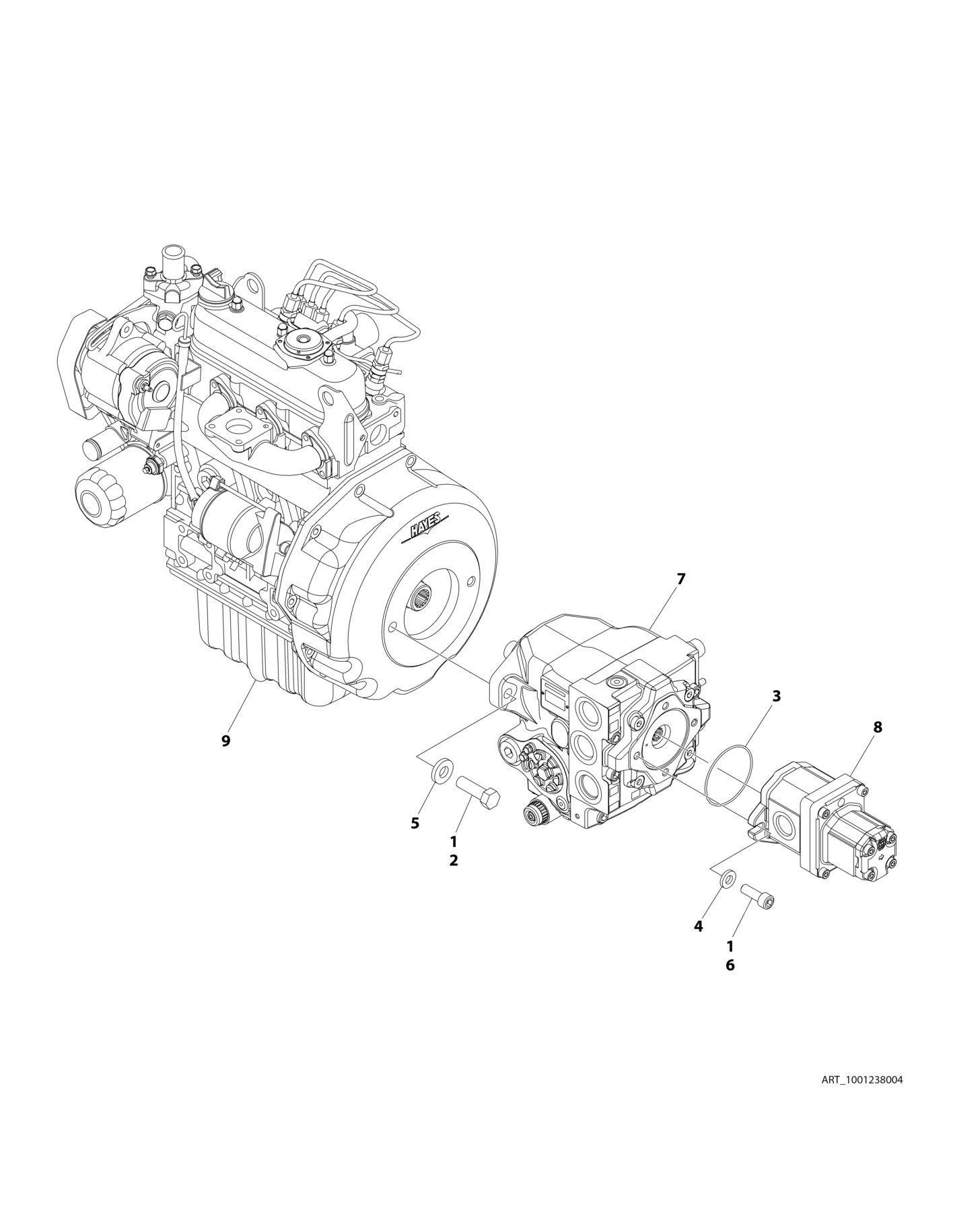

FIGURE 3-13. KUBOTA ENGINE AND PUMP SUB-ASSEMBLY
FIGURE 3-13. KUBOTA ENGINE AND PUMP SUB-ASSEMBLY
FIGURE 3-13. KUBOTA ENGINE AND PUMP SUB-ASSEMBLY
ITEM PART NUMBER QTY
DESCRIPTION
1001238004 Ref KUBOTA ENGINE AND PUMP SUB-ASSEMBLY 1 0100011 AR Compound, Locking 2 0641813 2 Bolt 1/2 x 1-5/8 3 3790152 1 O-Ring 4 4891600 2 Washer 3/8 5 4891800 2 Washer 1/2 6 83191040 2 Capscrew M10 x 30 7 1001117028 1 Axial Pump Assembly (See Separate Breakdown in this Section) 8 1001117029 1 Gear Pump Assembly (See Separate Breakdown in this Section) 9 1001238001 1 Kubota Engine Assembly (Use p/n 1001238001) (See Separate Breakdown in this Section)
