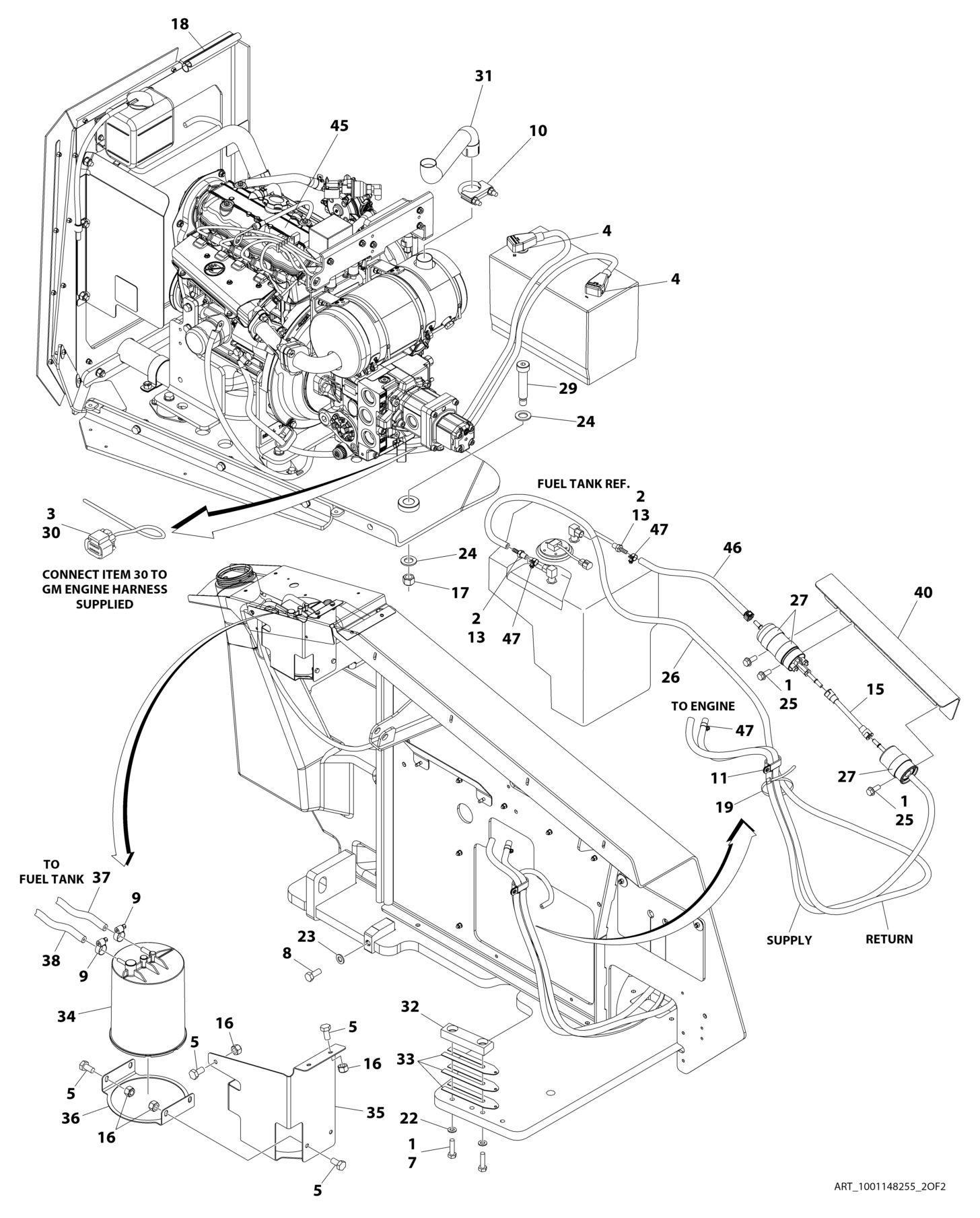

FIGURE 3-1. GM ENGINE INSTALLATION (WITHOUT ARCTIC PACKAGE
ITEM PART NUMBER QTY DESCRIPTION
REV
1001148255 Ref GM ENGINE INSTALLATION (WITHOUT ARCTIC PACKAGE) H 1 0100011 AR Compound, Locking 2 0100020 AR Sealant, Pipe 3 0100048 AR Grease, Dielectric 4 0100051 AR Grease, Battery Terminal 5 0760606 7 Bolt M6 x 12 7 0761016 2 Bolt M10 x 40 8 0761214 1 Bolt M12 x 30 8 0761217 1 Bolt M12 x 45 9 1320022 4 Clamp, Fuel Line 10 1320026 1 Clamp, Muffler 11 1321283 1 Clamp 13 2180348 2 Fitting, Barbed 15 1001156823 1 Hose 16 3290605 7 Nut M6 17 3291605 1 Nut M16 18 3960464 3 ft/0.9m Seal 19 4240033 AR Tie-Strap 22 4812000 2 Washer M10 23 4812102 1 Washer M12 24 4812500 2 Washer M20 25 5251012 3 Bolt M10 x 25 26 1001156819 76 in /1.9m Hose, Fuel Line 27 1001097588 3 Clip, Tube 29 1001118646 1 Bolt M20 x 80 30 1001119778 1 Harness, Fuel Pump (See Separate Breakdown in ELECTRICAL SECTION) 31 1001119902 1 Pipe, Exhaust 32 1001120087 1 Pad, Wear 33 1001120090 3 Shim 1.5 34 1001128801 1 Canister, Carbon 35 1001128931 1 Bracket, Mounting 36 1001128936 1 Ring 37 1001129255 7 in/17cm Hose 38 1001129256 9.5 ft /2.9m Hose 40 1001137367 1 Shield, Fuel Line 45 1001148254 1 GM Engine and Pump Sub-Assembly (See Separate Breakdown in this Section) 46 1001177156 1 Hose 47 1001174486 4 Clamp, Hose
