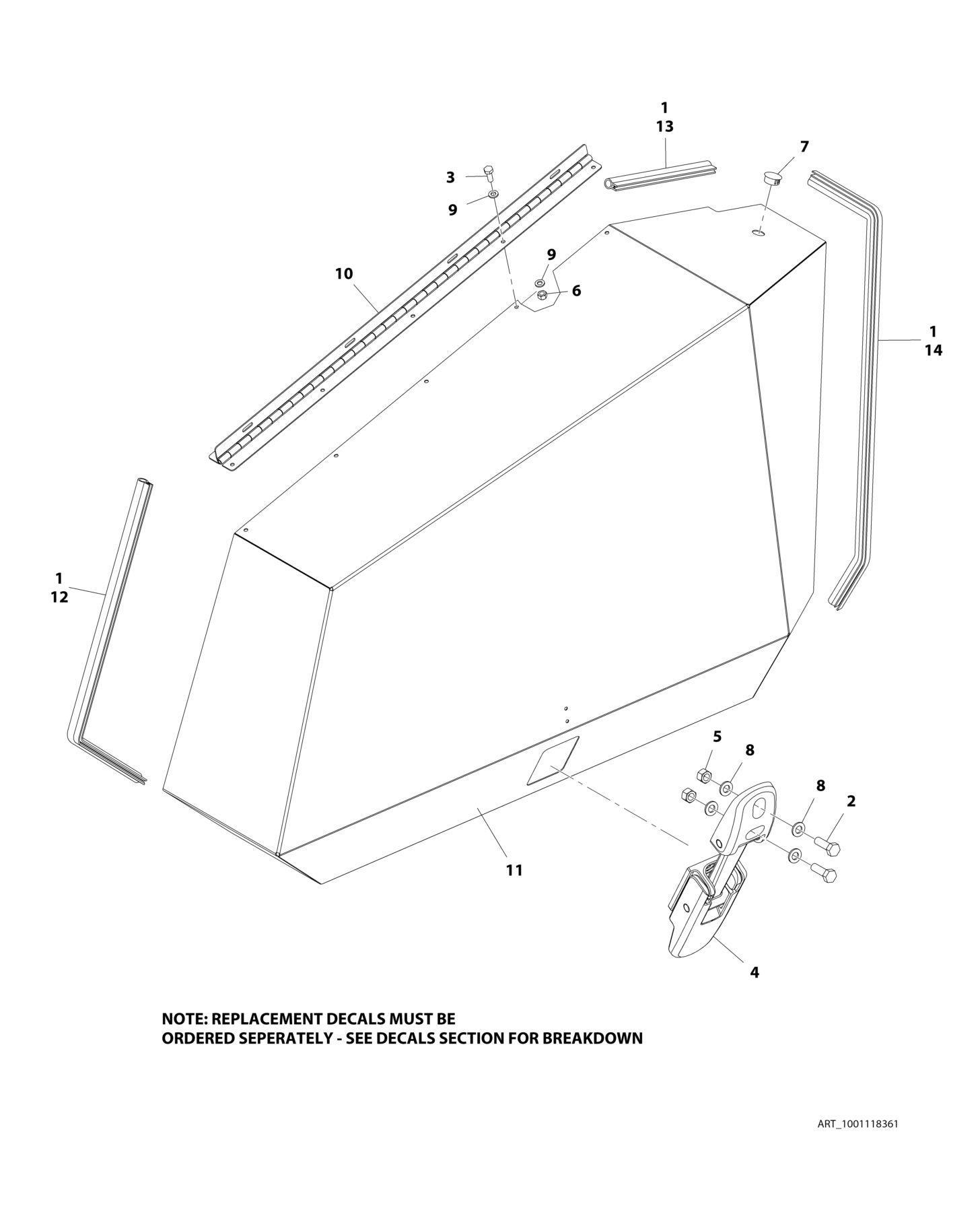

FIGURE 2-26. TANK SIDE HOOD ASSEMBLY
FIGURE 2-26. TANK SIDE HOOD ASSEMBLY
FIGURE 2-26. TANK SIDE HOOD ASSEMBLY
ITEM PART NUMBER QTY
DESCRIPTION
1001118361 Ref TANK SIDE HOOD ASSEMBLY 1 0100081 AR Adhesive 2 0760508 2 Bolt M5 x 16 3 0760608 5 Bolt M6 x 16 4 2940109 1 Latch 5 3290505 2 Nut M5 6 3290605 5 Nut M6 7 3520030 1 Plug, Hole 8 4811600 4 Washer M5 9 4811700 10 Washer M6 10 1001117281 1 Hinge 11 See Note 1 Hood, Replacement (Note: Use p/n 1001118361) 12 1001119089 1 Seal 13 1001119090 1 Seal 14 1001119091 1 Seal
REV
B
