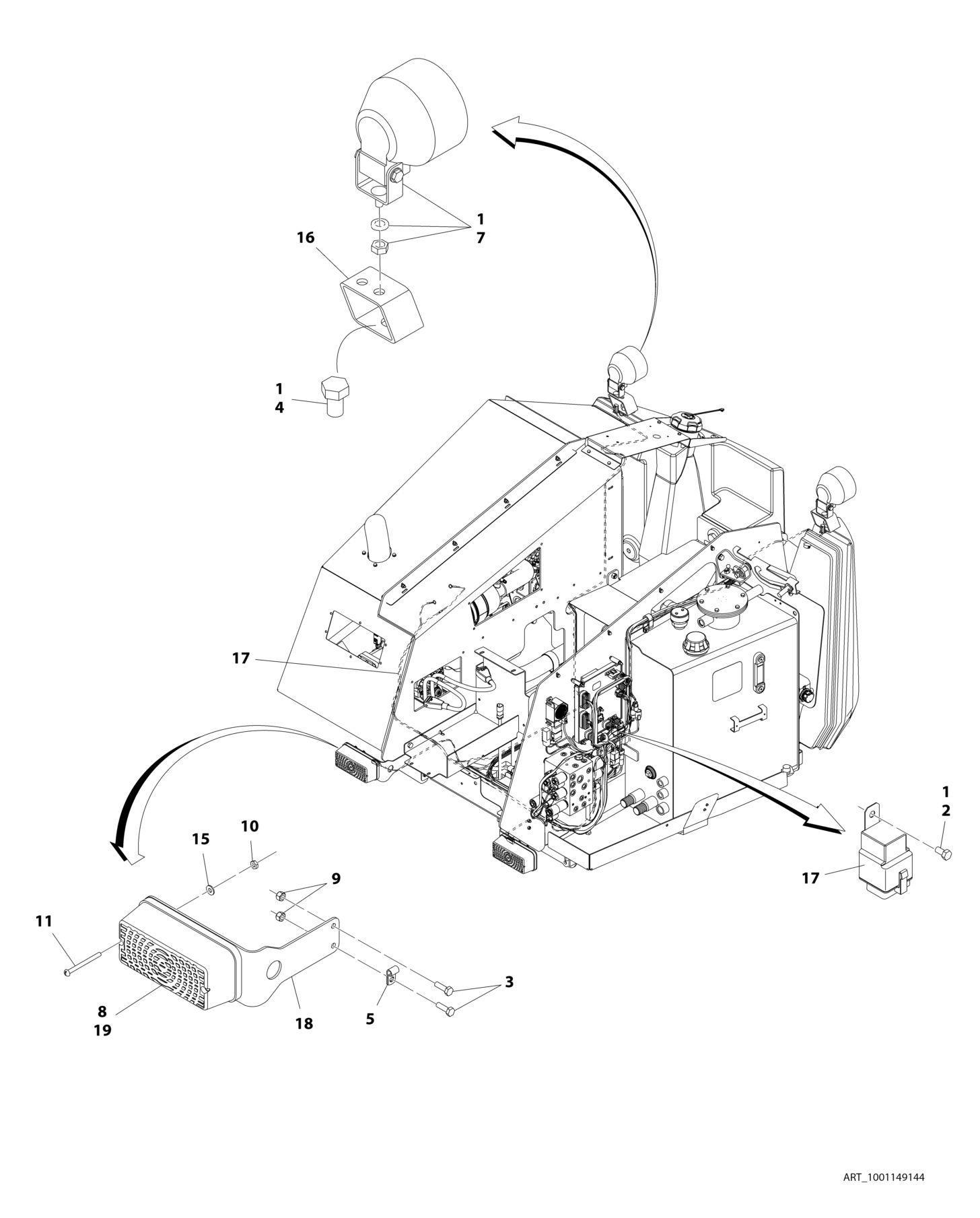

FIGURE 2-23. HEAD AND TAIL LIGHT INSTALLATION (OPTIONAL
ITEM PART NUMBER QTY
DESCRIPTION
1001149144 Ref HEAD AND TAIL LIGHT INSTALLATION (OPTIONAL) 1 0100011 AR Compound, Locking 2 0760505 1 Bolt M5 x 10 3 0760610 4 Bolt M6 x 20 4 0762014 2 Bolt M20 x 30 5 1320136 2 Clamp, Cable 6 1705170 1 Decal - Light (Not Shown - Located on Platform Console Box) 7 2920110 2 Light, Head 7 7016628 2 Bulb, Replacement (1 Per Assembly) 8 2920113 2 Light, Tail 9 3290605 4 Nut M6 10 3311005 4 Nut M10 11 3911036 4 Bolt M10 x 2-1/4 12 4240032 2 Tie-Strap (Not Shown) 13 4240033 4 Tie-Strap (Not Shown) 14 4360522 1 Switch, Push Button (Not Shown - Located on Platform Console Box) 15 4751000 4 Washer M10 16 1001120288 2 Mount, Light 17 1001120299 1 Chassis Light Harness (See Separate Breakdown in ELECTRICAL SECTION) 17 3740080 1 Relay 18 1001149147 2 Mount, Light 19 4460121 2 Cap, Wire
REV
A
