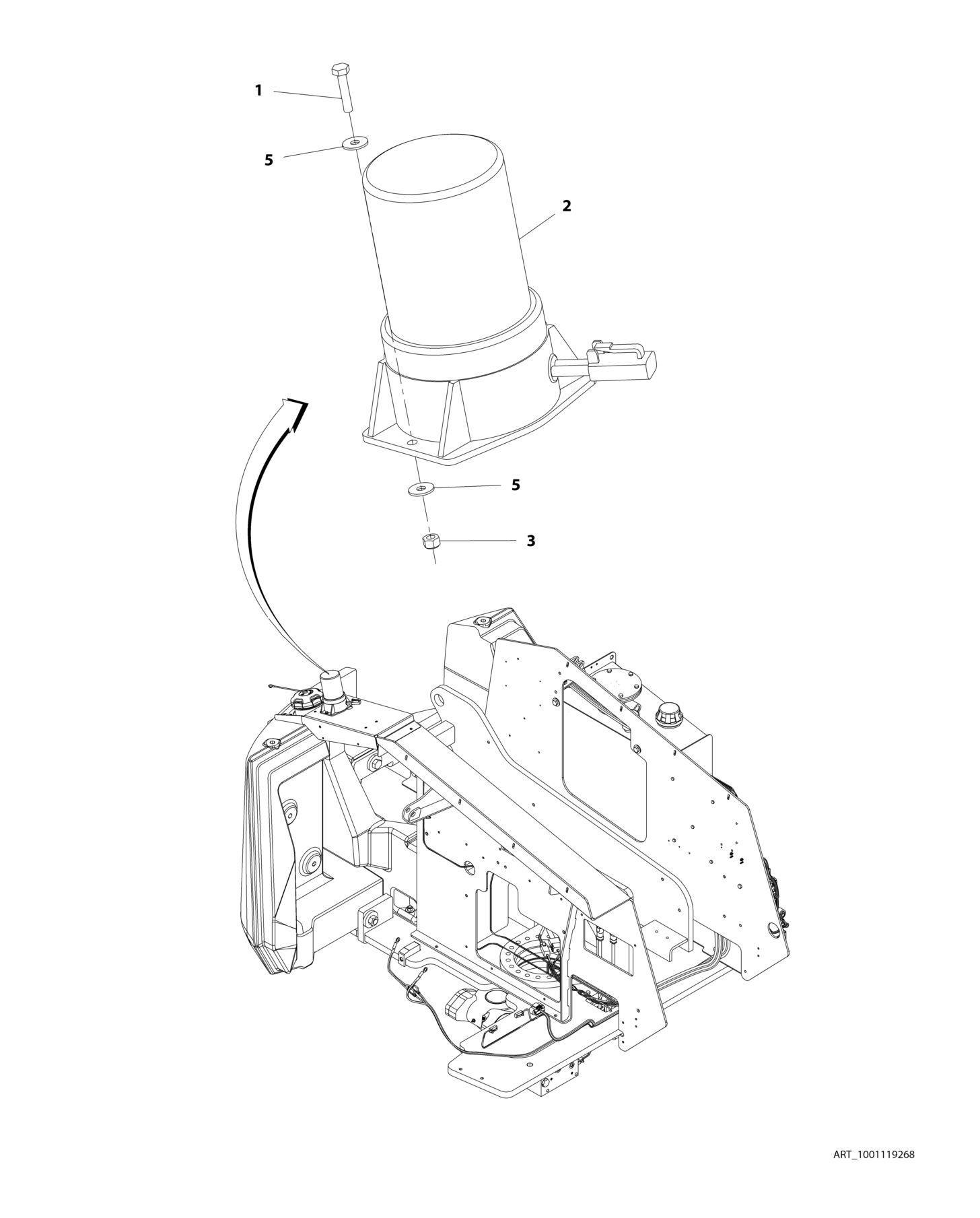

FIGURE 2-19. STROBE LIGHT INSTALLATION (AMBER) (OPTIONAL)

ITEM PART NUMBER QTY

DESCRIPTION

1001119268 Ref STROBE LIGHT INSTALLATION (AMBER) (OPTIONAL) 1 0760410 2 Bolt M4 x 20 2 2920161 1 Strobe Light Assembly 2 7016319 1 Bulb 2 7016372 1 Lens 2 4460891 1 Plug, Male - 2 Position 2 4460465 1 Socket, Female 3 3290405 2 Nut M4 5 1001091102 4 Washer M4 6 4240032 2 Tie-Strap (Not Shown)
