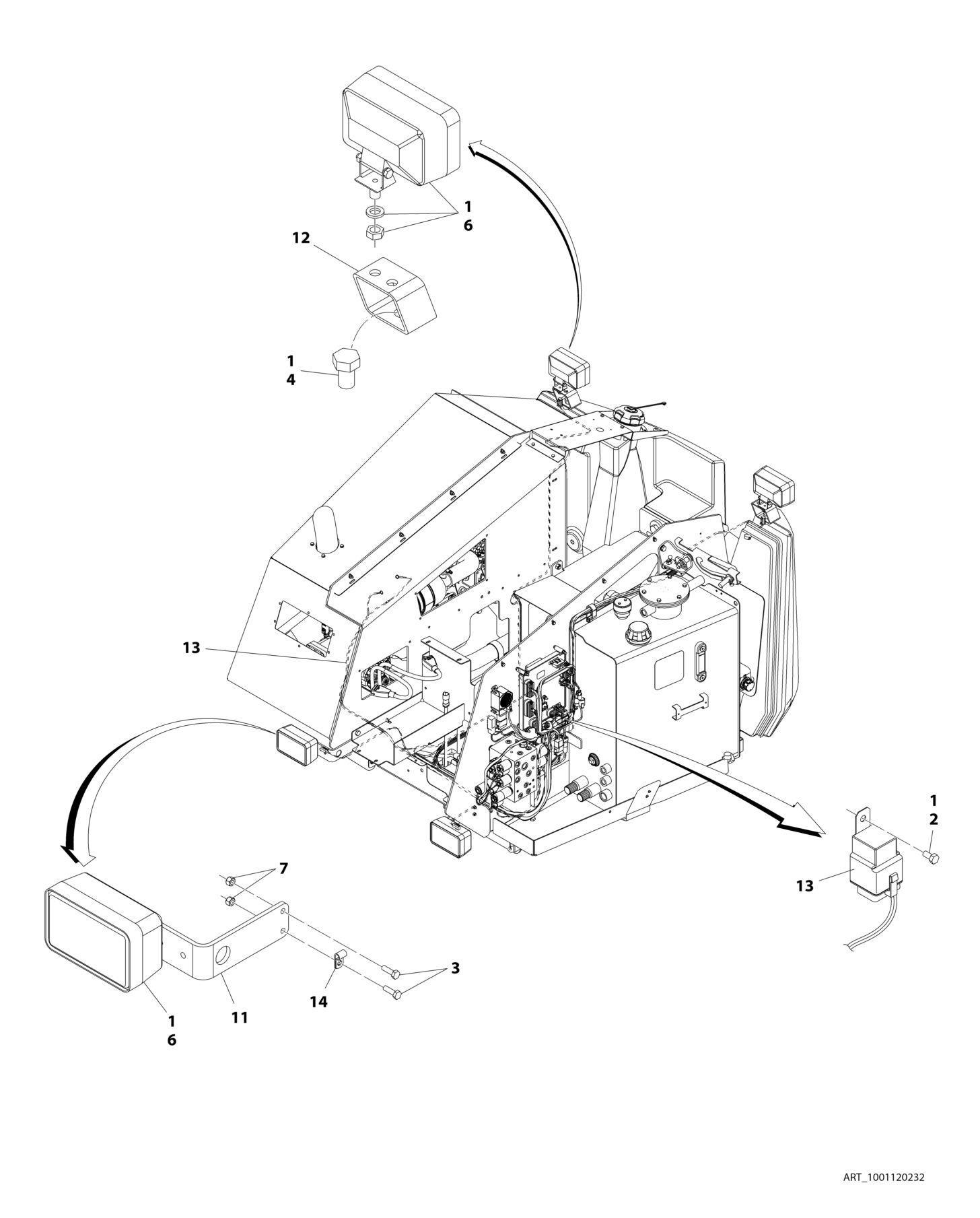

FIGURE 2-22. TURNTABLE FLOODLIGHT INSTALLATION (OPTIONAL
ITEM PART NUMBER QTY DESCRIPTION REV
1001120232 Ref TURNTABLE FLOODLIGHT INSTALLATION (OPTIONAL) B 1 0100011 AR Compound, Locking 2 0760505 1 Bolt M5 x 10 3 0760610 4 Bolt M6 x 20 4 0762014 2 Bolt M20 x 30 5 1705170 1 Decal - Light (Not Shown - Located on Platform Console Box) 6 2920157 4 Floodlight 6 7024452 4 Bulb, Replacement (1 Per Assembly) 7 3290605 4 Nut M6 8 4240032 2 Tie-Strap (Not Shown) 9 4240033 4 Tie-Strap (Not Shown) 10 4360522 1 Switch, Push Button (Not Shown - Located on Platform Console Box) 11 1001120287 2 Mount, Light 12 1001120288 2 Mount, Light 13 1001120299 1 Chassis Light Harness (See Separate Breakdown in ELECTRICAL SECTION) 13 3740080 1 Relay 14 1320136 2 Clamp, Cable
