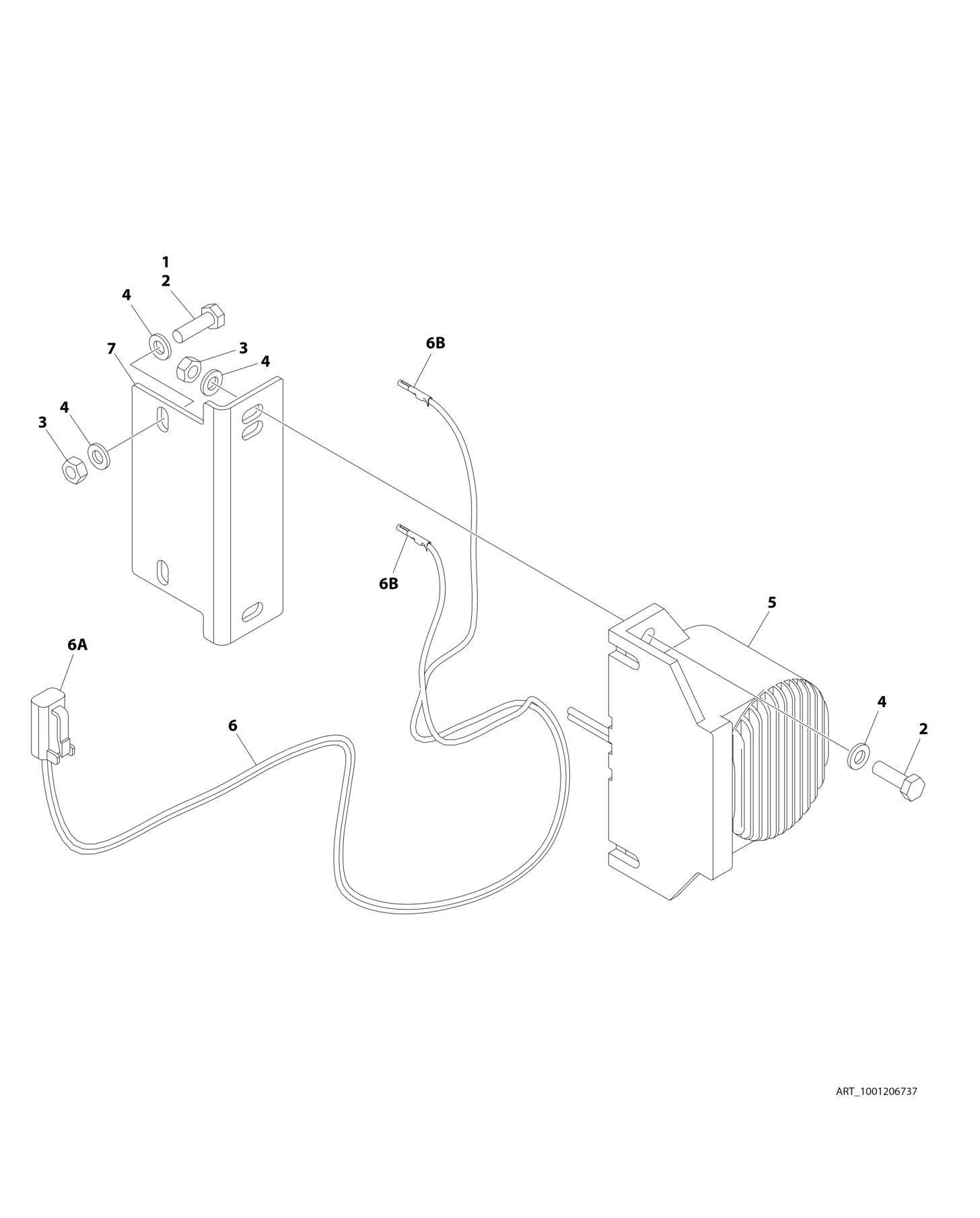

FIGURE 2-18. WHITE NOISE ALARM INSTALLATION

from JLG 340AJ PVC 2001 2007 Parts Manual - PDF DOWNLOAD

FIGURE 8-31. BREAKER BOX INSTALLATION

FIGURE 2-18. WHITE NOISE ALARM INSTALLATION

ITEM PART NUMBER QTY

DESCRIPTION

1001206737 Ref WHITE NOISE ALARM INSTALLATION 1 0100011 AR Compound, Locking 2 0760610 4 Bolt M6 x 20 3 3290601 4 Nut M6 4 4811700 8 Washer M6 5 1001182806 1 Alarm 6 1001190663 1 White Noise Motion Alarm Harness (See Separate Breakdown in this ection) 6A 4460891 1 Plug, Male - 2 Position 6A 4460465 1 Socket, Female 6B 4460871 2 Socket, Female 7 1001231886 1 Plate

FIGURE 2-18. WHITE NOISE ALARM INSTALLATION
