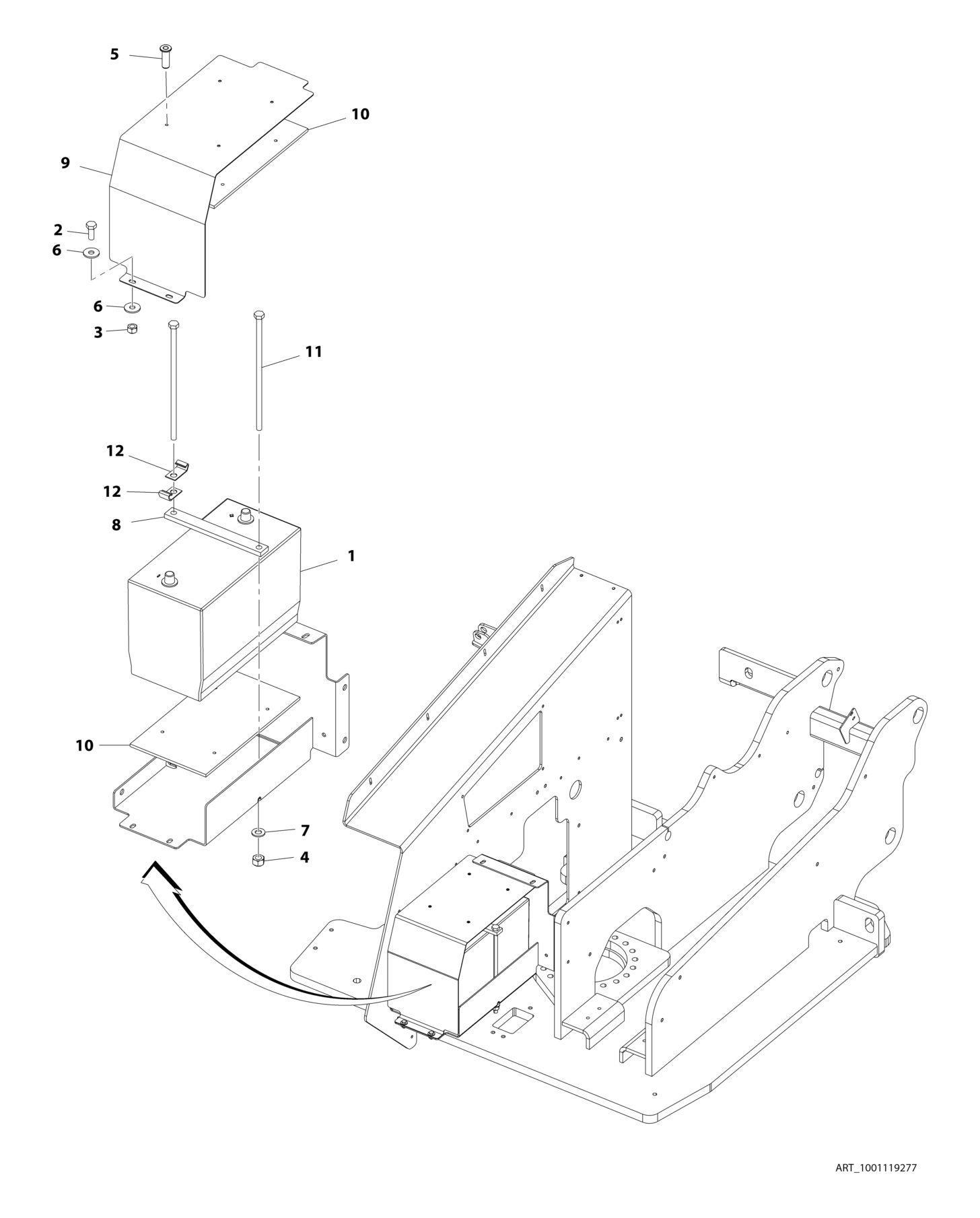

FIGURE 2-17. BATTERY INSTALLATION

from JLG 340AJ PVC 2001 2007 Parts Manual - PDF DOWNLOAD

FIGURE 8-31. BREAKER BOX INSTALLATION

FIGURE 2-17. BATTERY INSTALLATION

ITEM PART NUMBER QTY

DESCRIPTION

1001119277 Ref BATTERY INSTALLATION 1 0400075 1 Battery 2 0760610 2 Bolt M6 x 20 3 3290605 2 Nut M6 4 3291005 2 Nut M10 5 3820032 4 Rivet 6 4811702 4 Washer M6 7 4812000 2 Washer M10 8 0361810 1 Bar, Hold-down 9 1001117240 1 Cover 10 1001119278 2 Insulate 11 1001119280 2 Bolt M10 x 260 12 1320223 2 J-Clip

FIGURE 2-17. BATTERY INSTALLATION

Next Article

FIGURE 8-31. BREAKER BOX INSTALLATION

FIGURE 2-17. BATTERY INSTALLATION

FIGURE 2-17. BATTERY INSTALLATION

ITEM PART NUMBER QTY

DESCRIPTION

REV
