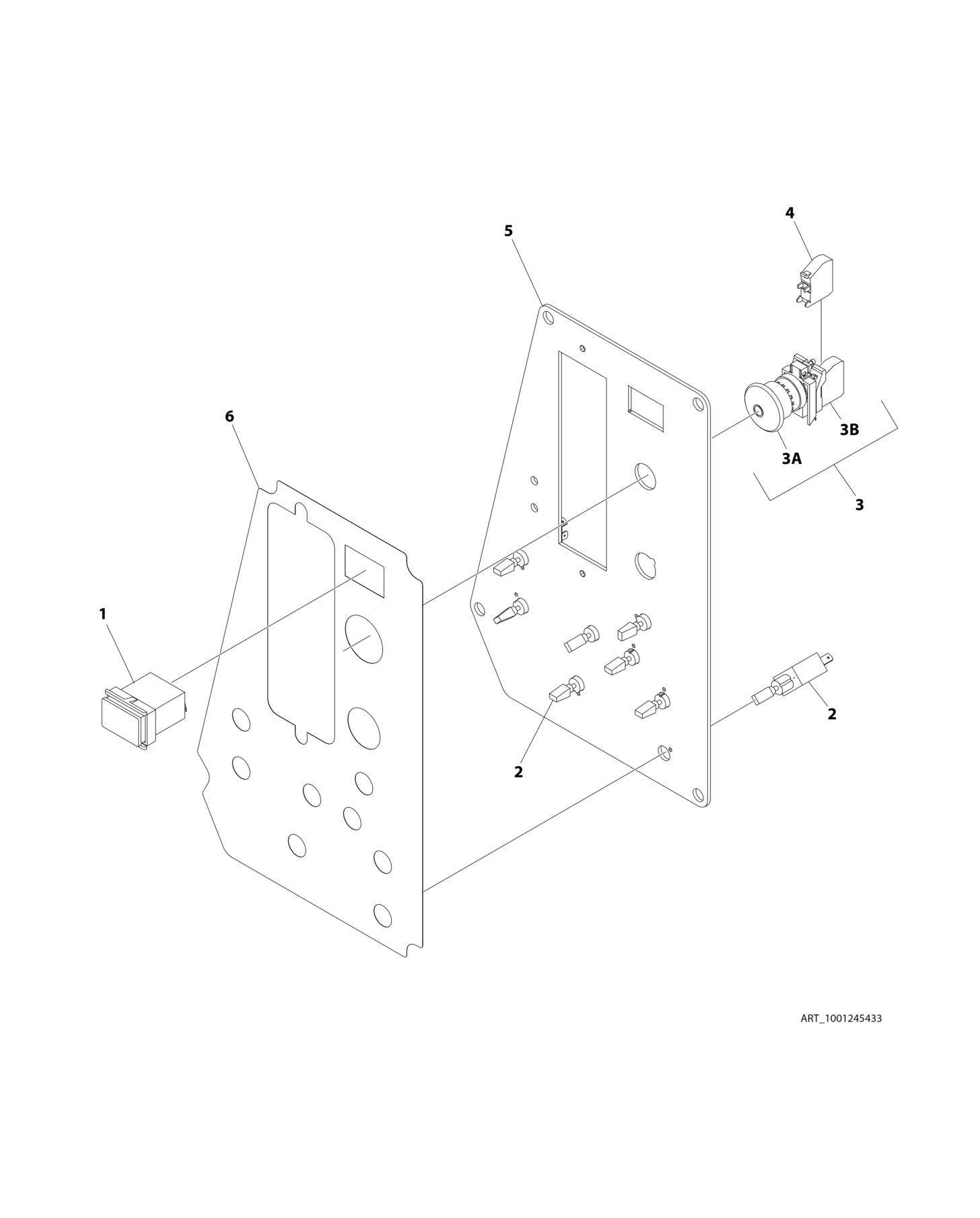

FIGURE 2-13. GROUND CONTROL ASSEMBLY (ALL SPECS EXCEPT CE

FIGURE 2-13. GROUND CONTROL ASSEMBLY (ALL SPECS EXCEPT CE)

FIGURE 2-13. GROUND CONTROL ASSEMBLY (ALL SPECS EXCEPT CE)

ITEM PART NUMBER QTY

DESCRIPTION

1001245433 Ref GROUND CONTROL ASSEMBLY 1 2420172 1 Gauge 2 4360328 8 Switch, Toggle 3 4360475 1 Switch, Emergency Stop 3A 7020175 1 Cap, Mushroom Head 3B 7020176 1 Block, Contact 4 4360476 1 Switch, Contact 5 1001119172 1 Panel 6 1001221398 1 Decal - Ground Control

REV

B
