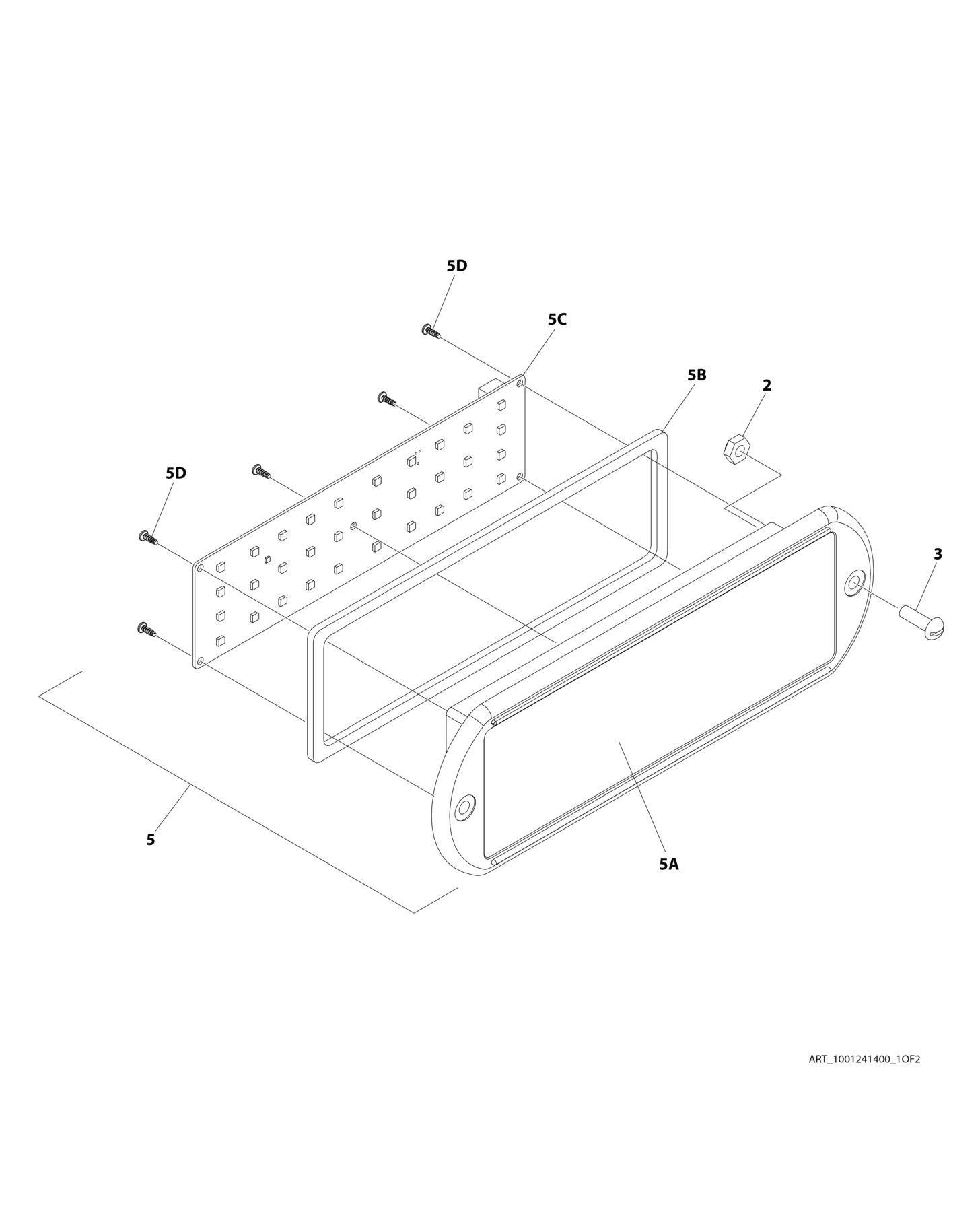

FIGURE 2-15. LIGHT PANEL INSTALLATION

from JLG 340AJ PVC 2001 2007 Parts Manual - PDF DOWNLOAD

FIGURE 8-31. BREAKER BOX INSTALLATION

FIGURE 2-15. LIGHT PANEL INSTALLATION

ITEM PART NUMBER QTY

DESCRIPTION

1001241400 Ref LIGHT PANEL INSTALLATION 2 3300408 2 Nut, Nylon Insert 3 0630518 2 Screw #10 x 3/4 5 1001236433 1 Light Panel Assembly 5A 1001236093 1 Lens, I-Con 5B 1001238749 1 Bezel (Includes Gasket) 5C 1001187807 1 Panel, LED Light 5D Ref Screw

FIGURE 2-15. LIGHT PANEL INSTALLATION

Next Article

FIGURE 8-31. BREAKER BOX INSTALLATION

FIGURE 2-15. LIGHT PANEL INSTALLATION

FIGURE 2-15. LIGHT PANEL INSTALLATION

ITEM PART NUMBER QTY

DESCRIPTION

REV
