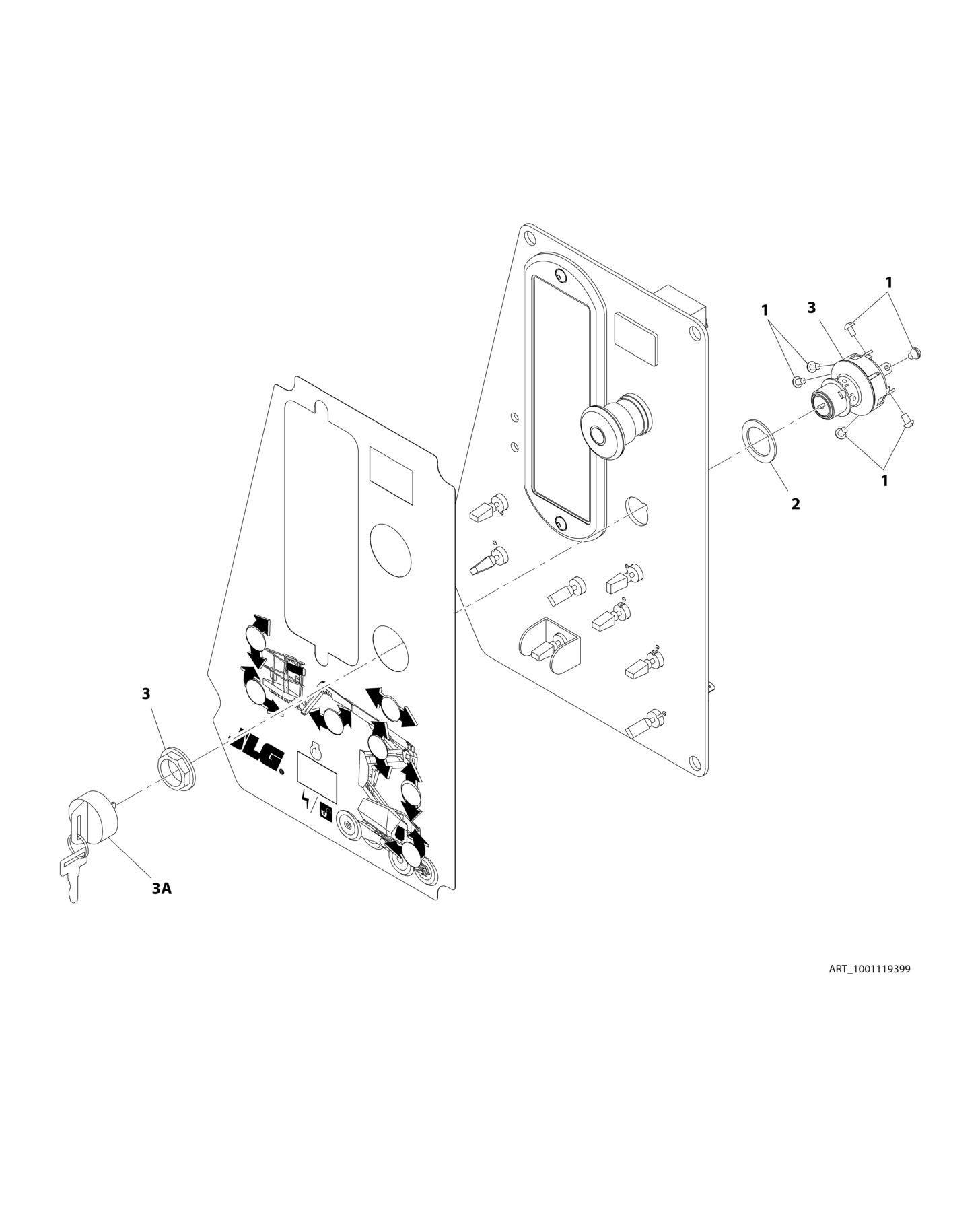

FIGURE 2-16. KEY SWITCH INSTALLATION

FIGURE 2-16. KEY SWITCH INSTALLATION

ITEM PART NUMBER QTY

DESCRIPTION

1001119399 Ref KEY SWITCH INSTALLATION 1 3910804 6 Screw 8 x 1/4 2 1001151393 1 Shim 3 4360469 1 Switch, Key 3A 2860030 1 Key, Replacement

REV

C
