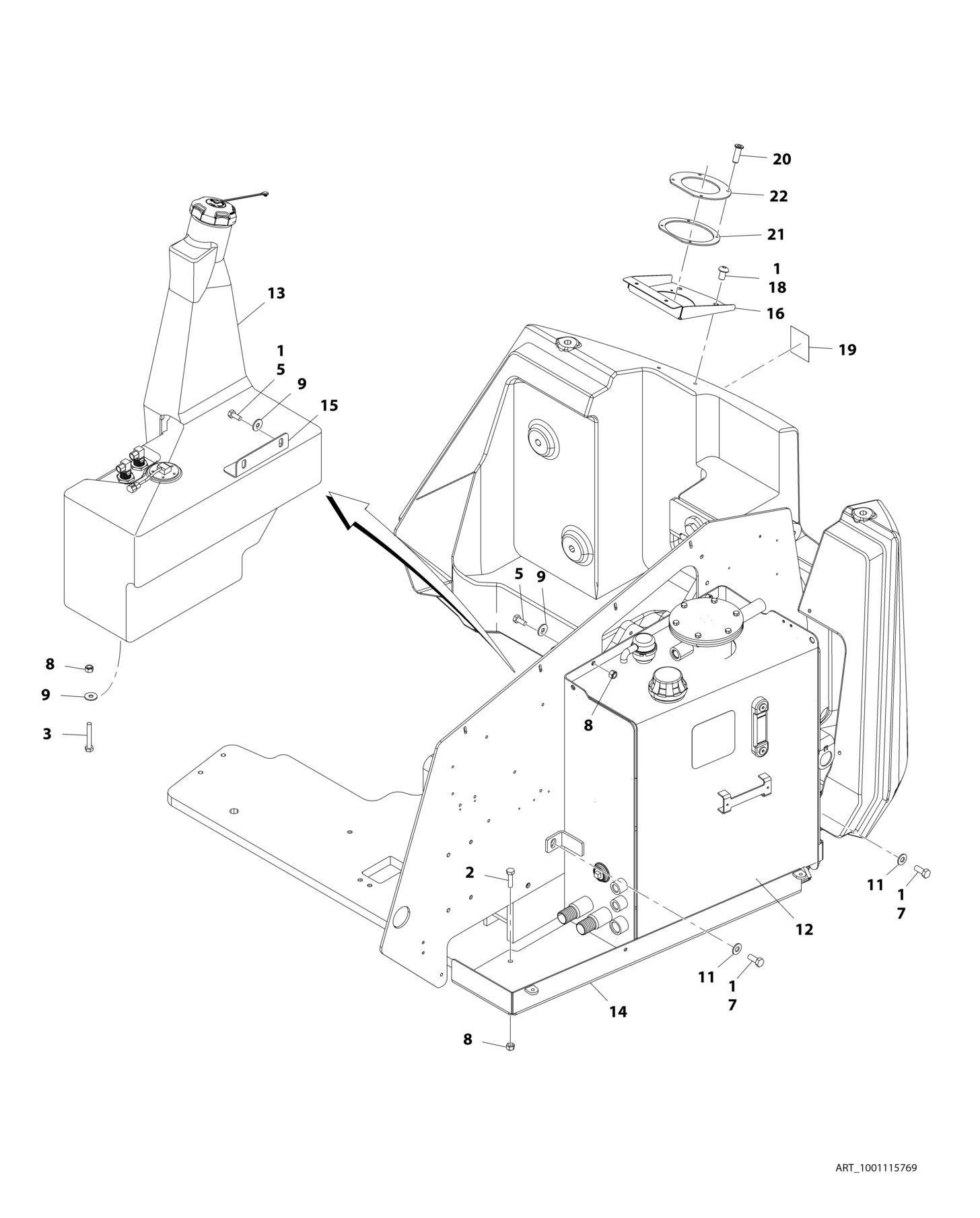

FIGURE 2-6. TANK INSTALLATION (DIESEL MACHINES
FIGURE 2-6. TANK INSTALLATION (DIESEL MACHINES)
FIGURE 2-6. TANK INSTALLATION (DIESEL MACHINES)
ITEM PART NUMBER QTY
DESCRIPTION
1001115769 Ref TANK INSTALLATION (DIESEL MACHINES) 1 0100011 AR Compound, Locking 2 0701016 2 Bolt M10 x 40 3 0701022 1 Bolt M10 x 70 5 0761012 4 Bolt M10 x 25 7 0761214 2 Bolt M12 x 30 8 3291005 5 Nut M10 9 4812002 5 Washer M10 11 4812102 2 Washer M12 12 1001116339 1 Hydraulic Tank Assembly (See Separate Breakdown in this Section) 13 1001117897 1 Fuel Tank Assembly (See Separate Breakdown in this Section) 14 1001118502 1 Shield, Bottom Tank 15 1001118509 1 Support, Tank 16 1001118510 1 Shield, Tank Neck 18 1001119527 2 Screw M10 x 16 19 1701505 1 Decal - Diesel Fuel 20 3820032 4 Rivet 21 1001128781 1 Seal, Neck 22 1001128782 1 Ring, Neck
REV
E
