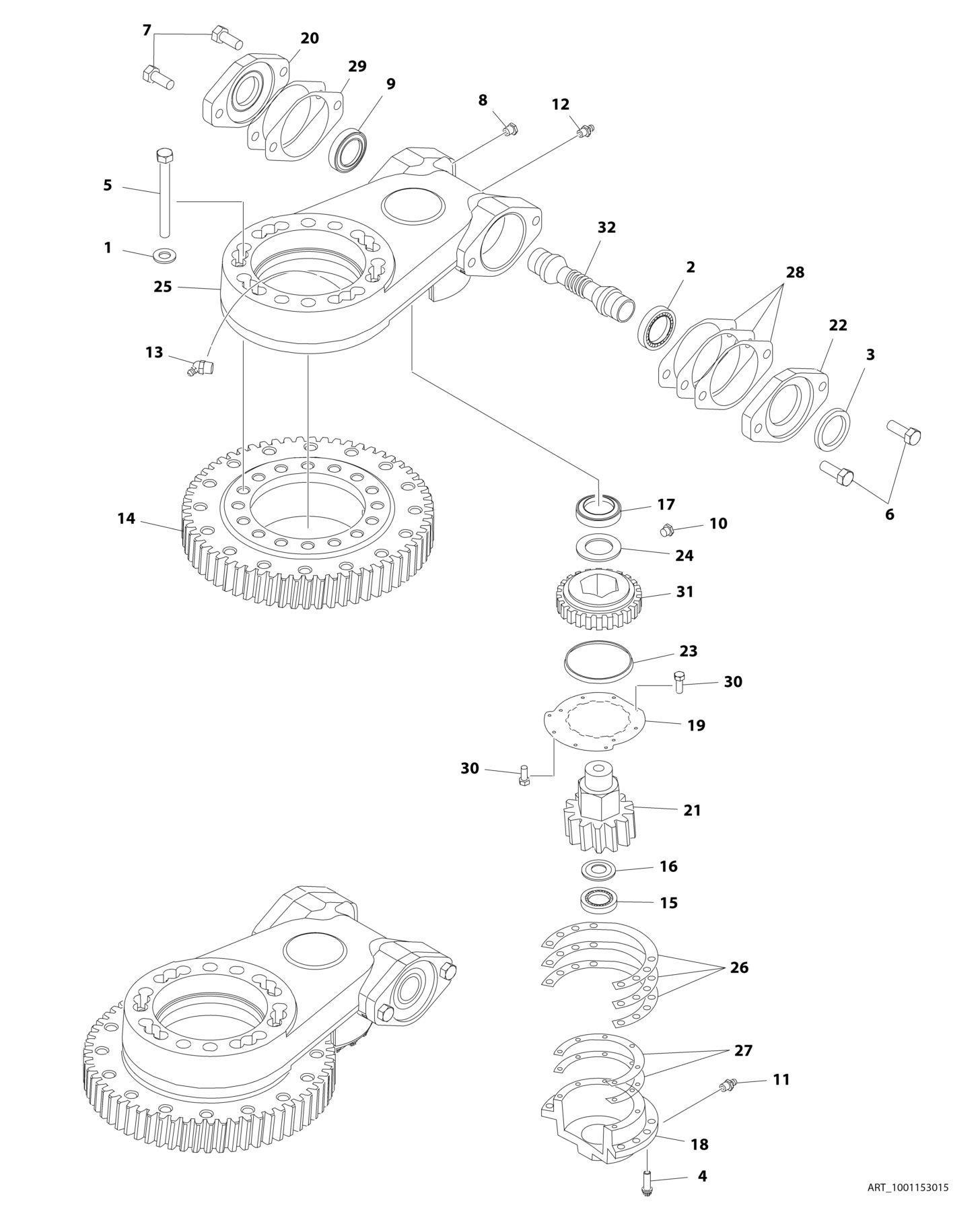

FIGURE 2-5. SWING BEARING ASSEMBLY

FIGURE 2-5. SWING BEARING ASSEMBLY

FIGURE 2-5. SWING BEARING ASSEMBLY

ITEM PART NUMBER QTY

DESCRIPTION

1001153015 Ref SWING BEARING ASSEMBLY 1 7026041 2 Washer 5/16 2 70002643 2 Cup, Bearing 2 70002644 2 Cone, Bearing 3 70002645 1 Seal 4 70002646 8 Bolt 5/16 x 7/8 5 70003138 2 Bolt 5/16 x 2-1/2 6 70002647 2 Bolt 1/2 x 1 7 70002648 2 Bolt 1/2 x 1-1/4 8 70002649 1 Vent, Pressure 9 70002650 1 Seal 10 70003139 1 Plug 1/4 11 70002651 1 Fitting, Grease 1/4 12 70002652 1 Fitting, Grease 1/8 Straight 13 7027359 1 Fitting, Grease 1/8 90 14 1001160531 1 Turntable Bearing Kit (Includes Bearing and Hardware (was p/n 1001143932 & 70003140) 15 70002656 1 Cup, Bearing 15 70002657 1 Cone, Bearing 16 70002658 1 Ring, Grease 17 7026048 1 Cup, Bearing 17 7026049 1 Cone, Bearing 18 70002659 1 Cap, Gear 19 70003141 1 Plate, Cover 20 70002661 1 Cap, Worm 21 70003142 1 Pinion, Output 22 70002663 1 Adapter, Motor 23 70002664 1 Seal, Face 24 7026052 1 Spacer, Washer 25 See Note 1 Housing (Note: Not Available - Purchase Complete Assembly) 26 70002665 1 Shim .0075 Natural 26 70002666 1 Shim .005 Blue 26 70002667 1 Shim .003 Green 27 70002668 1 Shim .005 Blue 27 70002669 1 Shim .020 Yellow 28 7027352 1 Gasket .010 Brown 28 7027351 1 Gasket .0075 Clear 28 7027350 1 Gasket .005 Blue 29 7027353 1 Gasket .020 Yellow 30 70000681 10 Bolt #6 x 3/8 31 70002670 1 Gear, Worm 32 70002671 1 Shaft, Worm

REV

B
