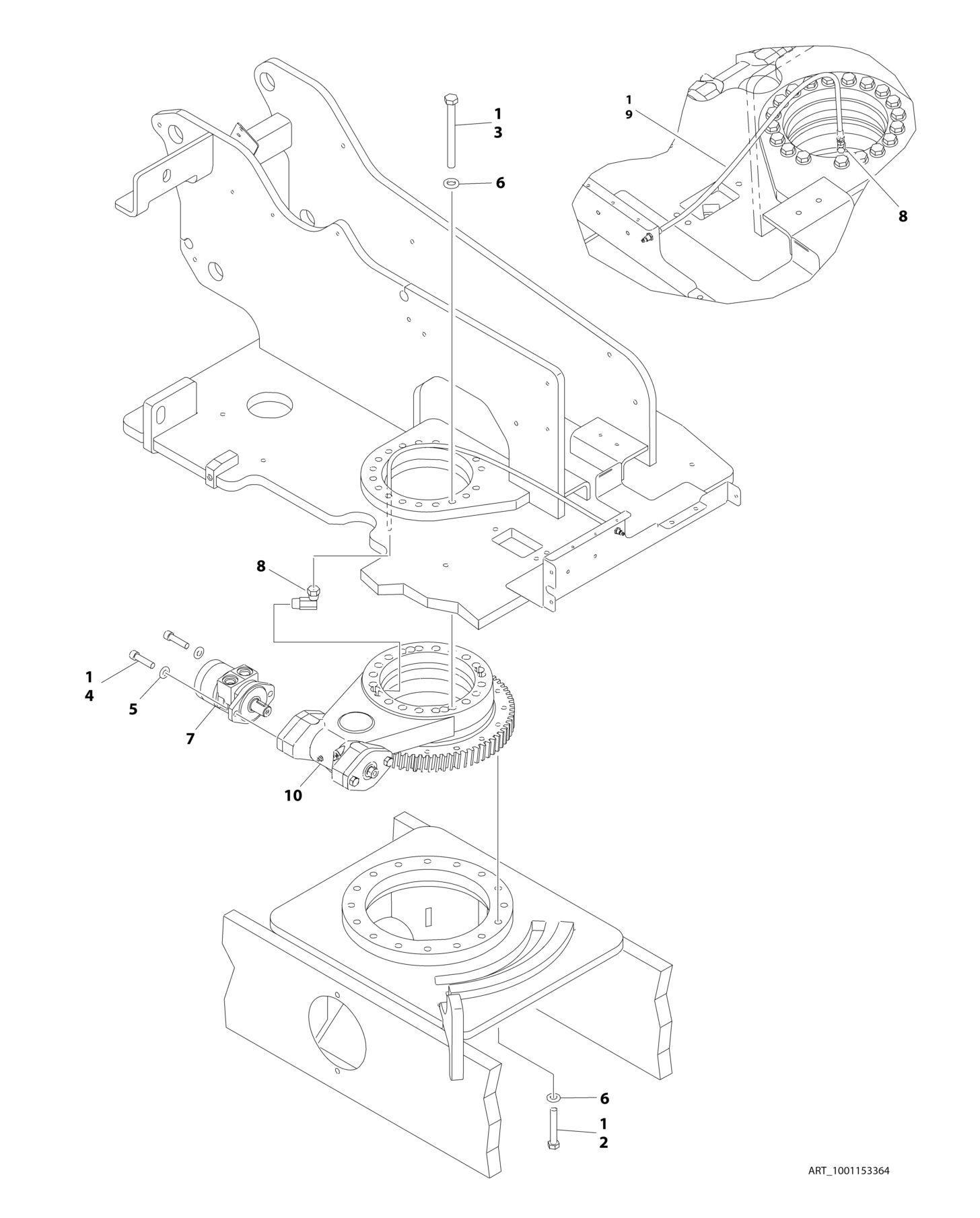

FIGURE 2-3. SWING DRIVE INSTALLATION (JING WEI

FIGURE 2-3. SWING DRIVE INSTALLATION (JING WEI)

FIGURE 2-3. SWING DRIVE INSTALLATION (JING WEI)

ITEM PART NUMBER QTY

DESCRIPTION

1001153364 Ref SWING DRIVE INSTALLATION 1 0100019 AR Compound, Locking 2 0711426 16 Bolt M14 x 90 Grade 10.9 3 0711432 19 Bolt M14 x 150 Grade 10.9 4 3931832 2 Capscrew 1/2-13 x 2 5 4740171 2 Washer 1/2 6 5241400 2 Washer M14 7 1001107781 1 Swing Motor Assembly (See Separate Breakdown in this Section) 8 2220124 1 Fitting, Adapter NPT 9 1001118961 1 Hose, Remote Grease Line (Includes Grease Fitting) 10 1001153015 1 Swing Bearing and Rotation Box Assembly (See Separate Breakdown in this Section)

REV

C
