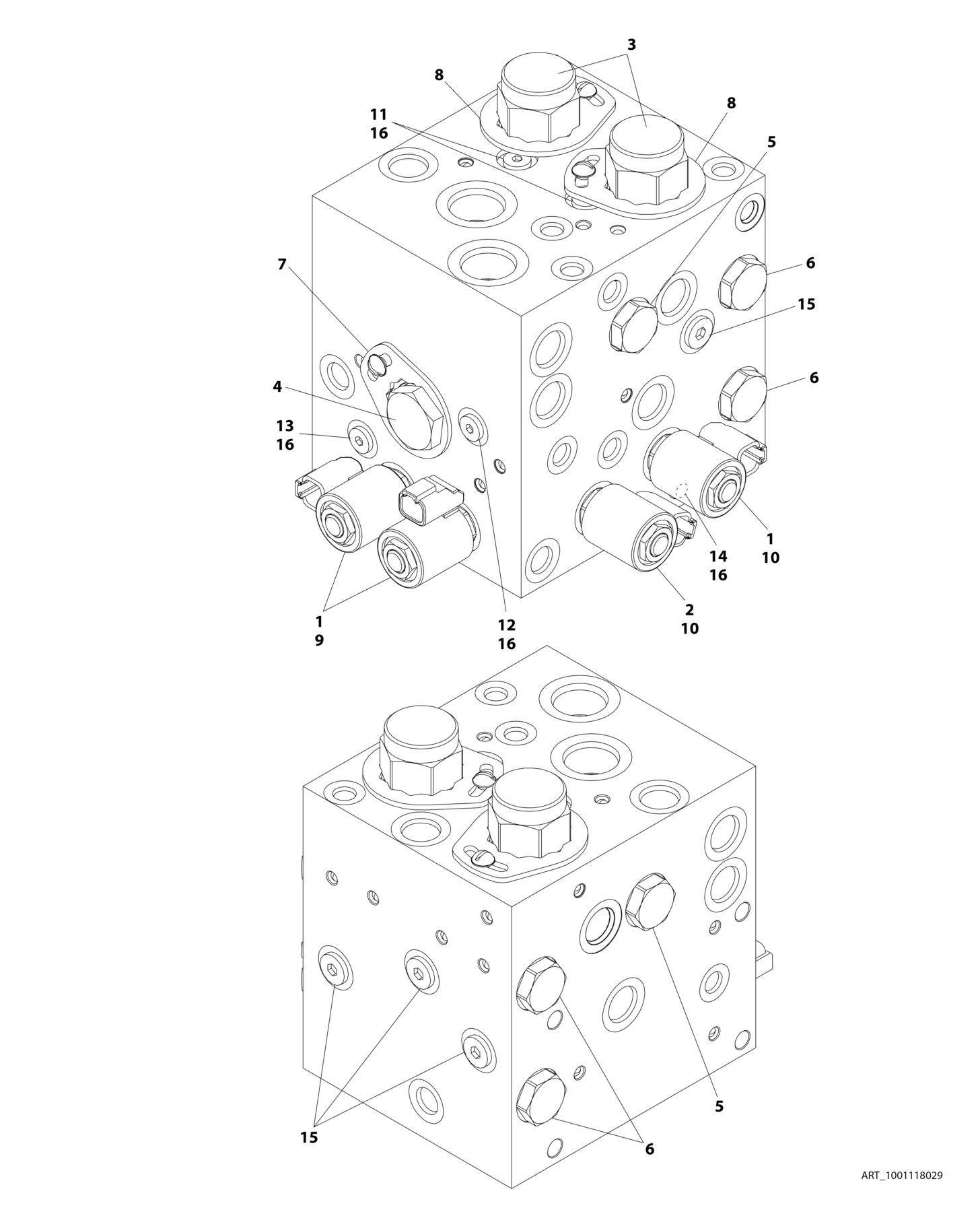

FIGURE 1-4. FLOW DIVIDER VALVE ASSEMBLY

FIGURE 1-4. FLOW DIVIDER VALVE ASSEMBLY

FIGURE 1-4. FLOW DIVIDER VALVE ASSEMBLY

ITEM PART NUMBER QTY

DESCRIPTION

1001118029 Ref FLOW DIVIDER VALVE ASSEMBLY 1 7012941 3 Valve, Solenoid Cartridge (Without Coil) (Traction, Brake and Secondary Oscillating) 1 7010543 3 Seal Kit - 7012941 Cartridge 2 70002955 1 Valve, Solenoid Cartridge (Without Coil) (Primary Oscillating) 2 7012953 1 Seal Kit - 70002955 Cartridge 3 70002956 2 Valve, Solenoid Cartridge 3 70002957 2 Seal Kit - 70002956 Cartridge 4 70002958 1 Valve, Flow Divider Cartridge 4 70002959 1 Seal Kit - 70002958 Cartridge 5 70002960 1 Valve, Flow Divider Cartridge 5 70002978 1 Seal Kit - 70002960 Cartridge 6 70002961 4 Valve, Check Cartridge 6 7017496 4 Seal Kit - 70002961 Check Cartridge 7 70002962 1 Lock Kit 8 70000781 2 Lock Kit 9 70002386 2 Coil 10 70002963 2 Coil 11 See Note 2 Orifice .031 (Note: Not Available for Purchase) 12 See Note 1 Orifice .025 (Note: Not Available for Purchase) 13 See Note 1 Orifice .040 (Note: Not Available for Purchase) 14 70002063 1 Orifice .062 15 7024844 4 Plug 16 7017406 5 Plug

REV

D
