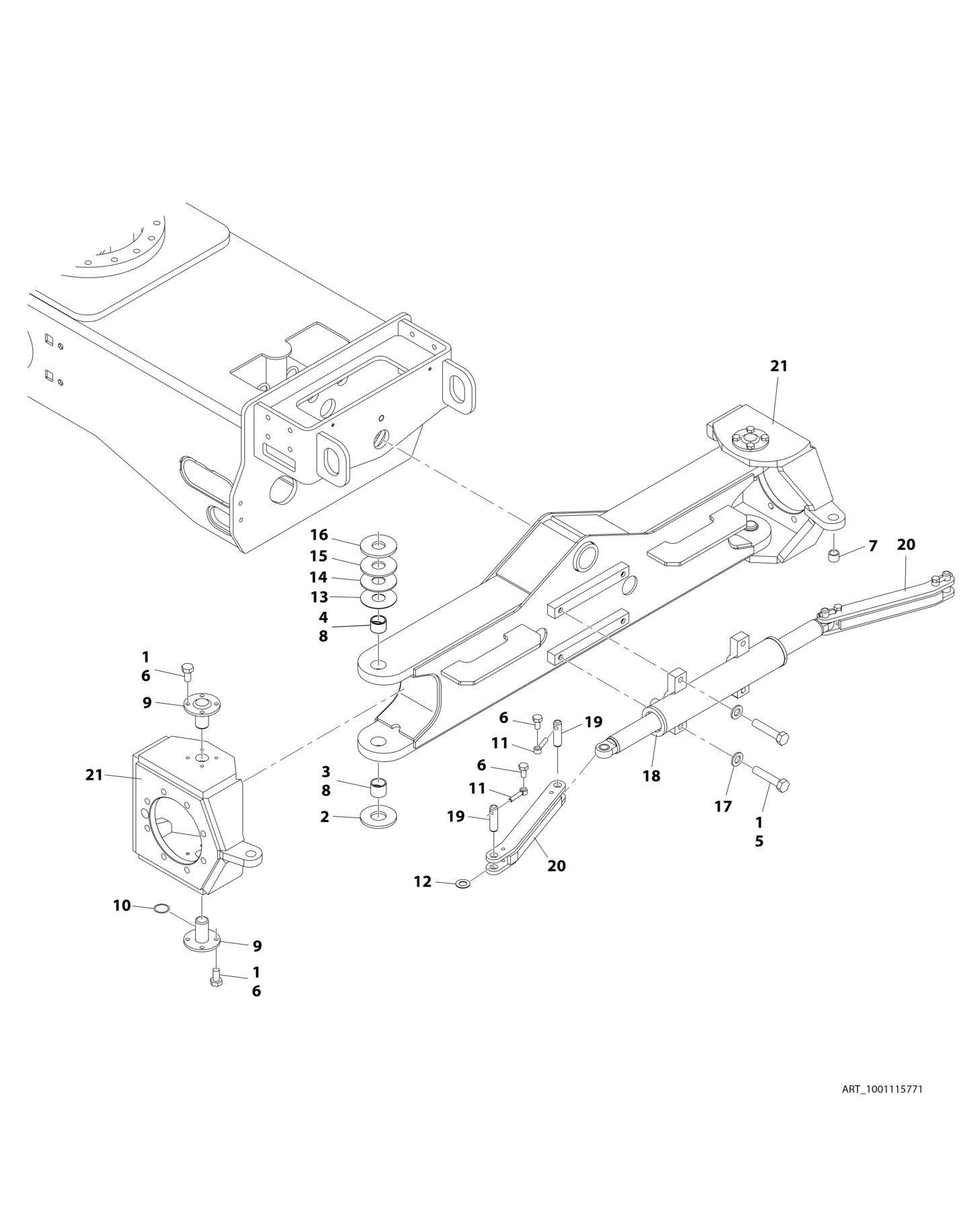

FIGURE 1-1. STEERING INSTALLATION
FIGURE 1-1. STEERING INSTALLATION
FIGURE 1-1. STEERING INSTALLATION
ITEM PART NUMBER QTY
DESCRIPTION
1001115771 Ref STEERING INSTALLATION 1 0100011 AR Compound, Locking 2 0440271 2 Thrustwasher .250 3 0440274 2 Bearing 4 0440291 2 Bearing 5 0701220 4 Bolt M12 x 60 6 0761010 20 Bolt M16 x 20 7 0962140 2 Bushing 8 3020029 AR Grease, Bearing 9 3423081 4 Kingpin 10 3780182 2 O-Ring 11 3841520 4 Keeper, Pin 12 4740086 4 Thrustwasher .0625 13 4740537 2 Thrustwasher .625 14 4740538 2 Thrustwasher .125 15 4740539 2 Thrustwasher .188 16 4740540 2 Thrustwasher .250 17 4812100 4 Washer M12 18 1001116788 1 Steer Cylinder Assembly (See Separate Breakdown in CYLINDER SECTION) 19 1001116867 4 Pin, Pivot 20 1001116871 2 Link, Tie-Rod 21 1001117142 2 Spindle
REV
A
