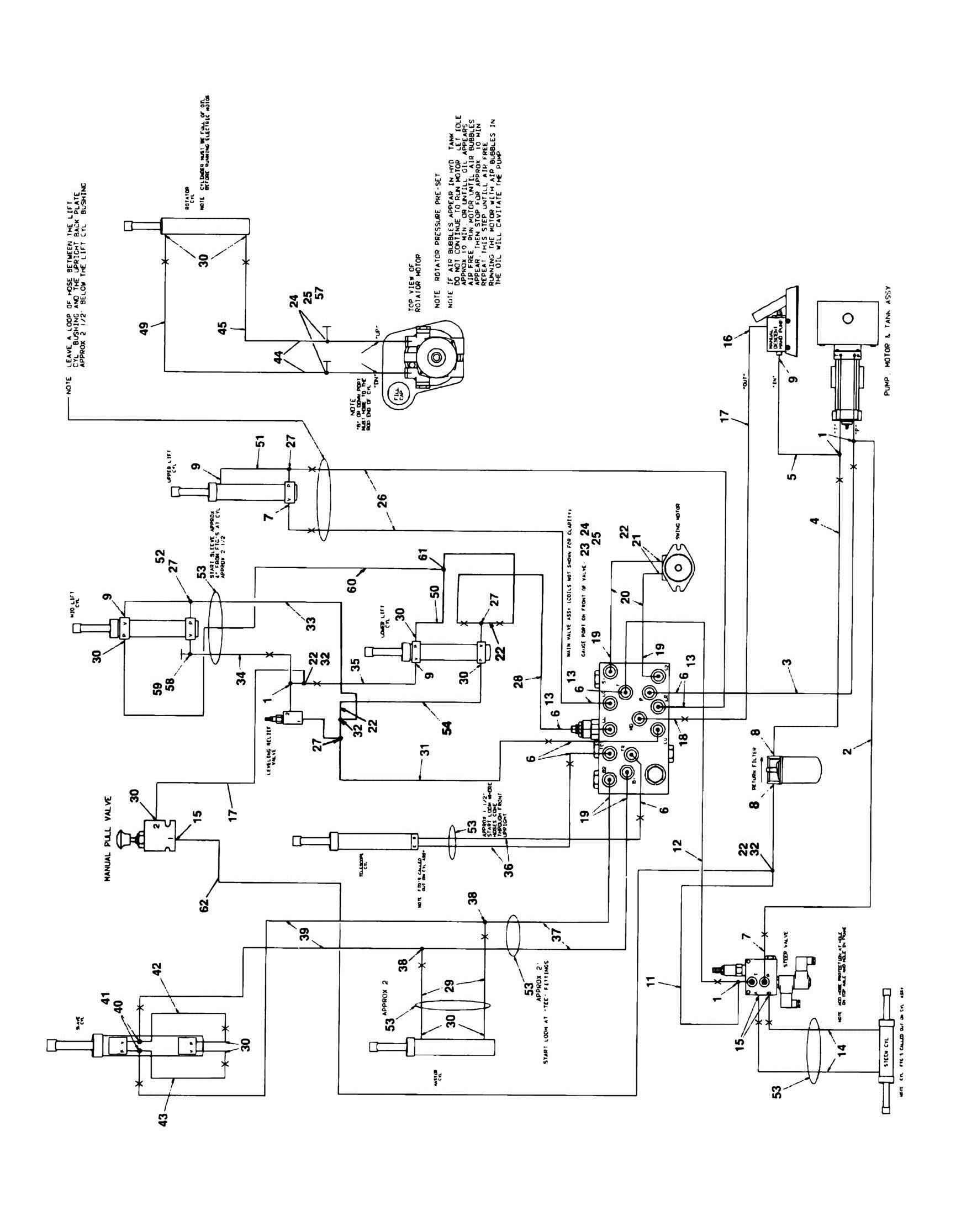

FIGURE 6 4. HYDRAULIC DIAGRAM 40ELECTRIC & 45ELECTRIC
ITEM PART NUMBER QTY DESCRIPTION
Ref HYDRAULIC DIAGRAM 2792017 Ref Hydraulic Diagram 40electric 2792144 Ref Hydraulic Diagram 45electric 1 2220606 4 Fitting, Tee 2 2752484 1 Hose 3 2752487 1 Hose 4 2752471 1 Hose 5 2752488 1 Hose 6 2220603 8 Fitting, Straight 7 2220371 2 Fitting, Straight 8 2220874 2 Fitting, 90 9 2220473 4 Fitting, 90 11 2752489 1 Hose 12 2752611 1 Hose 13 2220657 5 Fitting, 45 14 2752446 2 Hose 15 2220582 3 Fitting, Straight 16 2220466 1 Fitting, 90 17 2752433 2 Hose 18 2220415 1 Fitting, Straight 19 2220502 4 Fitting, 45 20 2752459 2 Hose 21 2220497 2 Fitting, Straight 22 2220609 6 Fitting, Reducer 23 2220873 1 Fitting, Pipe 24 2220428 3 Fitting, Quick Disconnect 25 2220429 3 Cap, Dust 26 Ref Hose 26 2752619 2 Hose 40electric 26 2753050 2 Hose 45electric 27 2220899 4 Fitting, Tee 28 2752620 1 Hose 29 2752580 2 Hose 30 2220472 8 Fitting, 90 31 2752614 1 Hose 32 2220635 3 Fitting, Tee 33 Ref Hose 33 2753115 1 Hose 40electric 33 2753113 1 Hose 45electric 34 Ref Hose 34 2753116 1 Hose 40electric 34 2753114 1 Hose 45electric 35 2752462 1 Hose 36 Ref Hose 36 2752621 2 Hose 40electric 36 2752626 2 Hose 45electric 37 Ref Hose 37 2752579 2 Hose 40electric 37 2752585 2 Hose 45electric 38 2220504 2 Fitting, Tee
REV
14-L 8-H
ITEM PART NUMBER QTY DESCRIPTION
39 Ref Hose 39 2753005 2 Hose 40electric 39 2752572 2 Hose 45electric 40 2220727 2 Fitting, Pipe 41 2220684 2 Fitting, Tee 42 2752435 1 Hose 43 2752573 1 Hose 44 2220677 2 Fitting, 45 45 2752574 1 Hose 49 2752575 1 Hose 50 2752581 1 Hose 51 4566188 1 Tube 52 Ref Tube 52 4566187 1 Tube 40electric 52 4566623 1 Tube 45electric 53 4100026 2 Sleeve, Nylon 54 2752438 1 Hose 55 1702124 1 Tags, Hose (Not Shown) 56 Ref Fitting, Straight Options: 56 2220935 2 Fitting, Straight (Prior to SN 47049) 56 2221020 2 Fitting, Straight (SN 47049 to Present) 57 2220584 2 Fitting, Tee 58 2220934 1 Fitting, Tee 59 4640861 1 Bleeder Kit 60 Ref Hose 60 2752441 1 Hose 40electric 60 2752440 1 Hose 45electric 61 2220605 1 Fitting, Tee 62 2752584 1 Hose 63 0100020 AR Sealant (Not Shown)
