FIGURE 6 3. HYDRAULIC DIAGRAM 35ELECTRIC

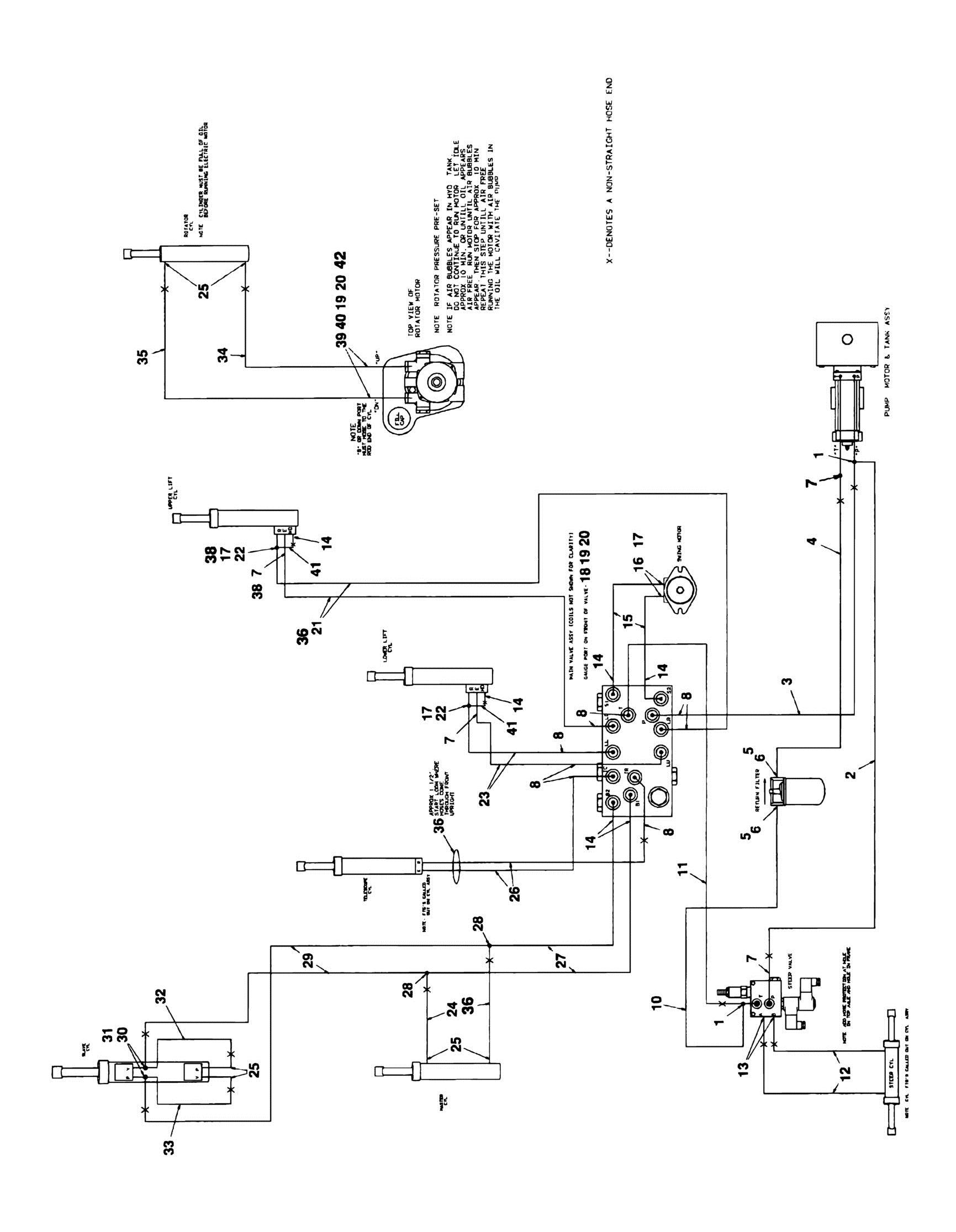

FIGURE 6-3. HYDRAULIC DIAGRAM - 35ELECTRIC

FIGURE 6-3. HYDRAULIC DIAGRAM - 35ELECTRIC

ITEM PART NUMBER QTY

DESCRIPTION

2792142 Ref HYDRAULIC DIAGRAM - 35ELECTRIC 2792546 Ref HYDRAULIC DIAGRAM (W/FIRE RESISTANT HYDRAULIC OIL) -

35ELECTRIC

1 2220606 2 Fitting, Tee 2 2752484 1 Hose 3 2752487 1 Hose 4 2752471 1 Hose 5 Ref Fitting Options: 5 2220874 2 Fitting, 90, (Standard Machines) 5 2220366 2 Fitting, Straight (W/Fire Resistant Hydraulic Oil) 6 Ref Fitting Options: 6 Not Required 0 Standard Machines 6 2220619 2 Fitting, Reducer (W/Fire Resistant Hydraulic Oil) 7 2220371 4 Fitting, Straight 8 2220603 8 Fitting, Straight 10 2752489 1 Hose 11 2752611 1 Hose 12 2752446 2 Hose 13 2220582 2 Fitting, Straight 14 2220415 4 Fitting, Straight 15 2752459 2 Hose 16 2220497 2 Fitting, Straight 17 2220609 2 Fitting, Reducer 18 2220873 1 Fitting, Pipe 19 2220428 3 Fitting, Quick Disconnect 20 2220429 3 Cap, Dust 21 2752623 2 Hose 22 2220606 2 Fitting, Tee 23 2752627 2 Hose 24 2752580 2 Hose 25 2220472 6 Fitting, 90 26 2752624 2 Hose 27 2752583 2 Hose 28 2220504 2 Fitting, Tee 29 2753005 2 Hose 30 2220727 2 Fitting, Pipe 31 2220684 2 Fitting, Tee 32 2752435 1 Hose 33 2752573 1 Hose 34 2752574 1 Hose 35 2752575 1 Hose 36 4100026 3 Sleeve, Nylon 37 1702397 1 Tags, Hose (Not Shown) 38 2220507 2 Fitting, 90 39 2220584 2 Fitting, Tee 40 Ref Fitting, Straight Options: 40 2220935 2 Fitting, Straight (Prior to SN 47049) 40 2221020 2 Fitting, Straight (SN 47049 to Present) 41 2752447 2 Hose 42 2220677 2 Fitting, 45

REV

E-7 A-1
