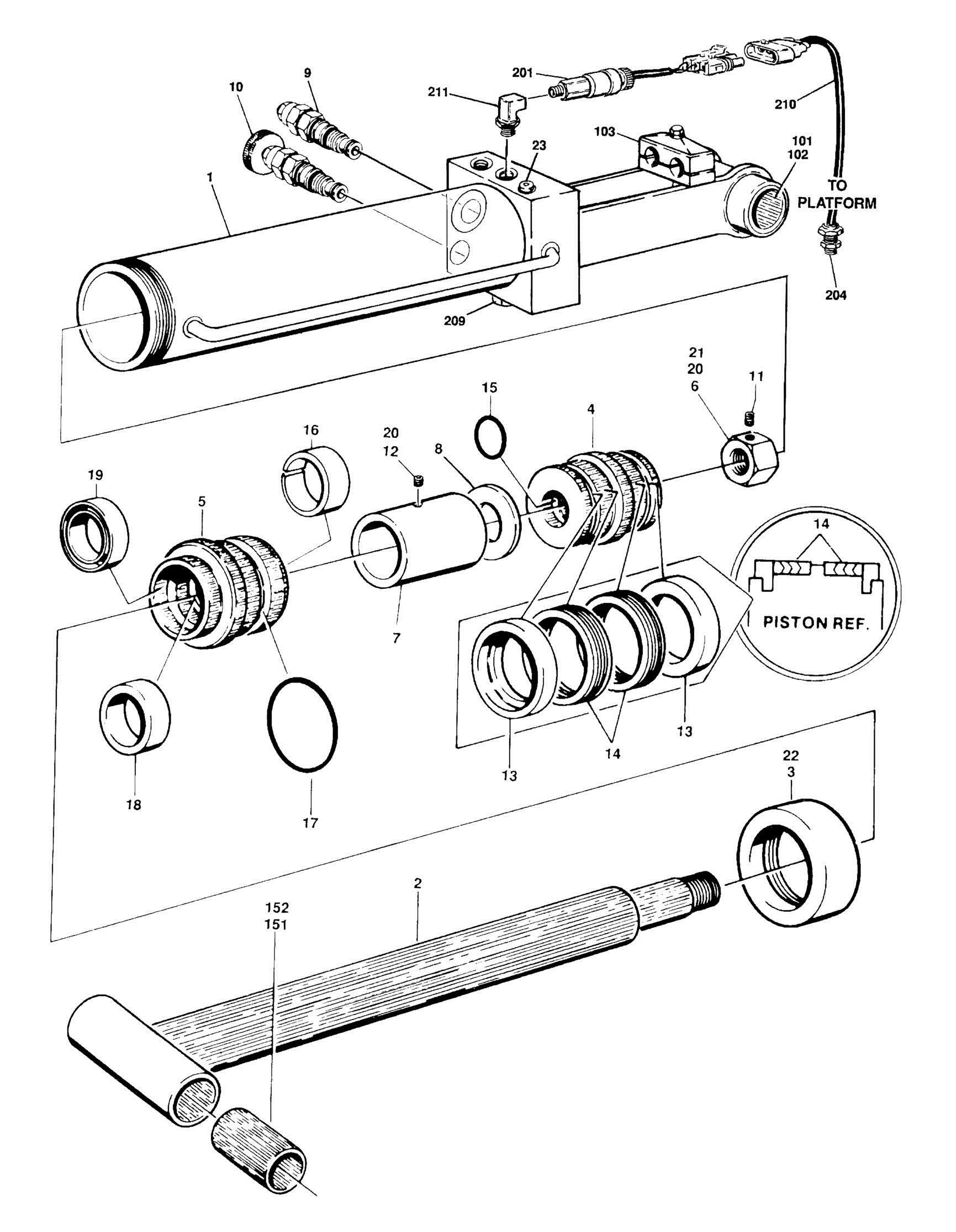

FIGURE 5-1. LIFT CYLINDER ASSEMBLY - MODEL 30ELECTRIC
ITEM PART NUMBER QTY
DESCRIPTION
1683202 Ref LIFT CYLINDER ASSEMBLY - MODEL 30ELECTRIC 1 1683203 1 Barrel Assembly (Includes Items 101-103) 2 1682544 1 Rod Assembly (Includes Items 151-152) 3 1120108 1 Retainer 4 3480115 1 Piston 5 1681344 1 Head 6 3300279 1 Nut 7 4565332 1 Spacer, Tube 8 4740394 1 Washer 9 4640746 1 Holding Cartridge Valve 9 2900770 1 Seal Kit - 4640746 Cartridges 10 4640869 1 Valve, Manual Release Cartridge 10 7012540 1 Seal Kit - 4640869 Cartridge 11 3900170 1 Setscrew 3/8in-16NC x 3/8in 12 3951402 1 Setscrew 1/4in-20NC x 1/4in 13 Kit 2 Ring, Lock 14 Kit 2 Seal 15 Kit 1 O-Ring 16 Kit 1 Ring, Wear 17 Kit 1 O-Ring 18 Kit 1 Seal, Rod 19 Kit 1 Seal, Wiper 20 0100011 AR Loctite #242 21 0100038 AR Primer, Locking 22 0100035 AR Loctite #222 23 2220883 2 Plug, O-Ring 2900371 1 Seal Kit (Includes Items 13-19) 1683203 Ref BARREL ASSEMBLY 101 0961602 2 Bushing, Teflon (Includes Item 102) 102 3790029 2 O-Ring (1 Per Bushing) 103 1320051 1 Clamp 1682544 Ref ROD ASSEMBLY 151 0961602 2 Bushing, Teflon (Includes Item 152) 152 3790029 2 O-Ring (1 Per Bushing) 0254789 Ref OVERLOAD INSTALLATION (FRENCH SPEC) 201 4360344 1 Switch, Pressure 204 4460428 1 Connector, Strain Relief 209 4640495 1 Valve, Cartridge - Holding 209 2900770 1 Seal Kit - 4640495 Valve 210 4921521 1 Harness 211 2220903 1 Fitting
REV
A-1
