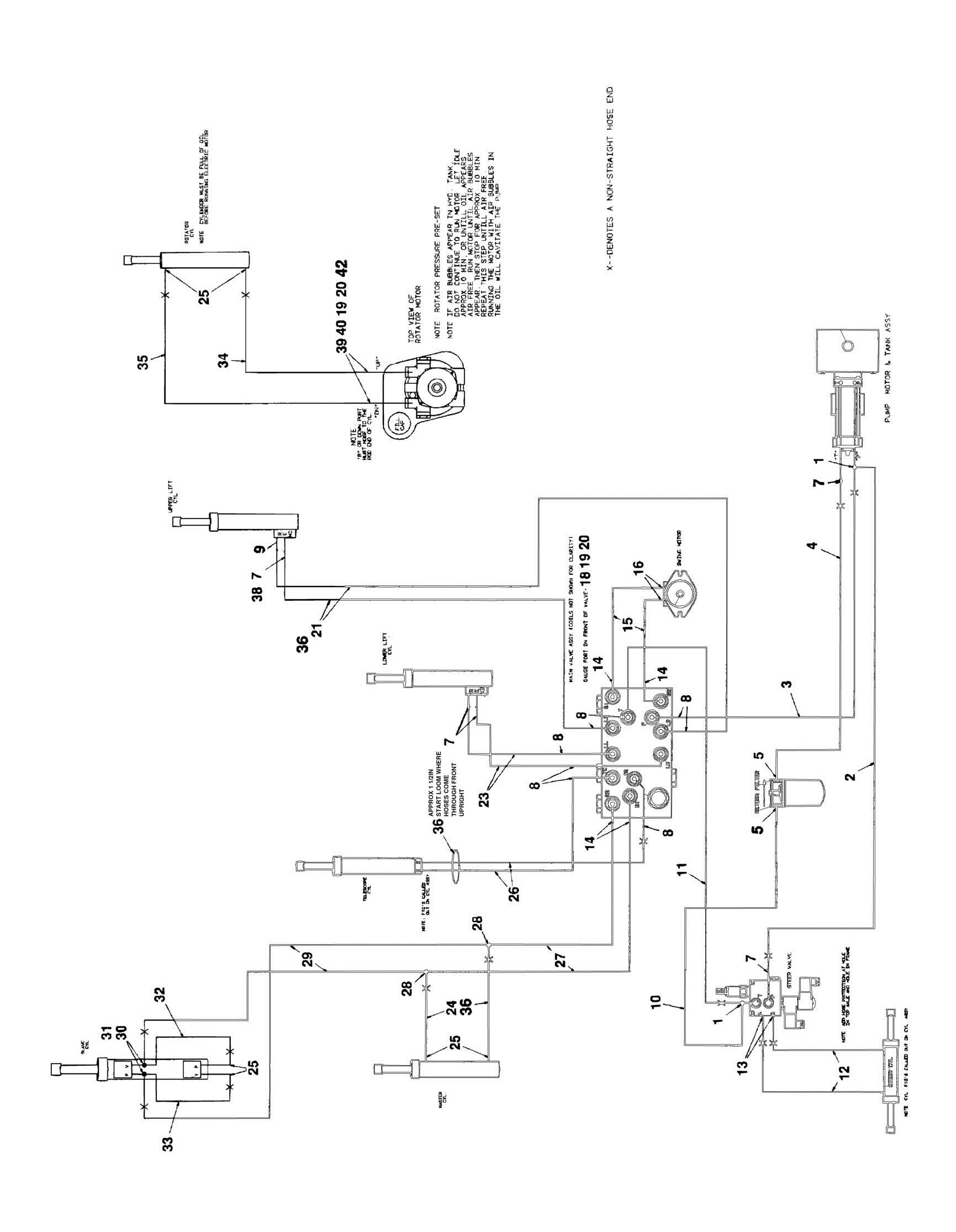

FIGURE 6-3. HYDRAULIC DIAGRAM - 35ELECTRIC

FIGURE 6-3. HYDRAULIC DIAGRAM - 35ELECTRIC

FIGURE 6-3. HYDRAULIC DIAGRAM - 35ELECTRIC

ITEM PART NUMBER QTY

DESCRIPTION

2792208 Ref HYDRAULIC DIAGRAM - 35ELECTRIC 1 2220606 2 Fitting, Tee 2 2752484 1 Hose 3 2752487 1 Hose 4 2752471 1 Hose 5 2220874 2 Fitting, 90 7 2220371 5 Fitting, Straight 8 2220603 8 Fitting, Straight 9 2220473 1 Fitting, 90 10 2752489 1 Hose 11 2752611 1 Hose 12 2752446 2 Hose 13 2220582 2 Fitting, Straight 14 2220415 4 Fitting, Straight 15 2752459 2 Hose 16 2220497 2 Fitting, Straight 18 2220873 1 Fitting, Pipe 19 2220428 3 Fitting, Quick Disconnect 20 2220429 3 Cap, Dust 21 2752623 2 Hose 23 2752627 2 Hose 24 2752580 2 Hose 25 2220472 6 Fitting, 90 26 2752624 2 Hose 27 2752583 2 Hose 28 2220504 2 Fitting, Tee 29 2753005 2 Hose 30 2220727 2 Fitting, Pipe 31 2220684 2 Fitting, Tee 32 2752435 1 Hose 33 2752573 1 Hose 34 2752574 1 Hose 35 2752575 1 Hose 36 4100026 4 Sleeve, Nylon 37 1702397 1 Tags, Hose (Not Shown) 38 2220507 1 Fitting, 90 39 2220584 2 Fitting, Tee 40 Ref Fitting, Straight Options: 40 2220935 2 Fitting, Straight (Prior to SN 47049) 40 2221020 2 Fitting, Straight (SN 47049 to Present) 42 2220677 2 Fitting, 45

REV

3
