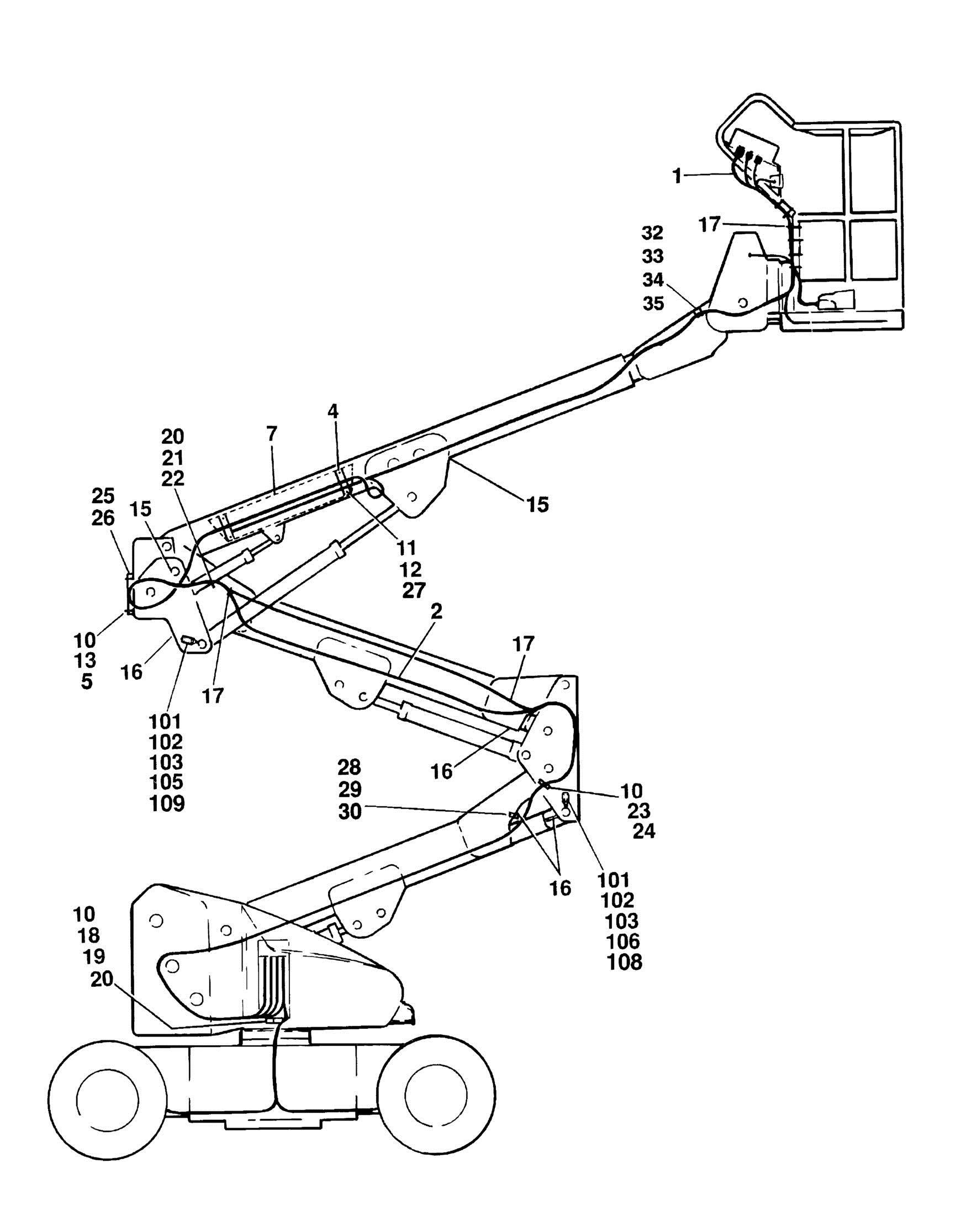

FIGURE 3-4. LIMIT SWITCHES, CABLES AND CLAMPS INSTALLATION - MODEL 40ELECTRIC & 45ELECTRIC
ITEM PART NUMBER QTY
DESCRIPTION
Ref CLAMPS AND CABLES INSTALLATIONS 0254647 Ref Clamps and Cable Installations 40electric without Numbered
Colored Wire (Prior to SN 36648)
0258563 Ref Clamps and Cable Installations 40electric with Numbered
Colored Wire (SN 36648 to Present)
0254041 Ref Clamps and Cable Installations 45electric without Numbered
Colored Wire (Prior to SN 36648)
0258564 Ref Clamps and Cable Installations 45electric with Numbered
Colored Wire (SN 36648 to Present)
1 Ref Harness Assembly - Upper Boom Options (See ELECTRICAL SECTION for Breakdown): 1 4921644 1 Harness Assembly - Upper Boom 40electric (Prior to SN
36648)
1 4922128 1 Harness Assembly - Upper Boom 40electric (SN 36648 to
Present)
1 4921645 1 Harness Assembly - Upper Boom 45electric (Prior to SN
36648)
1 4922127 1 Harness Assembly - Upper Boom 45electric (SN 36648 to
Present)
2 Ref Harness Assembly - Tower Boom Options (See ELECTRICAL SECTION for Breakdown): 2 4921581 1 Harness Assembly - Tower Boom 40electric 2 4921591 1 Harness Assembly - Tower Boom 45electric 4 0561090 2 Block, Hose Clamp 5 0561091 1 Block, Hose Clamp 7 3536999 1 Shield 10 4751500 5 Flatwasher 5/16in 11 4751400 12 Flatwasher 1/4in 12 3311401 6 Nut 1/4in-20NC 13 0641514 3 Bolt 5/16in-18NC x 1 3/4in 15 Ref Trim Options: 15 4060807 3.6 ft/1.1m Trim 40electric (was p/n 4060805) 15 4060805 3.6 ft/1.1m Trim 45electric 16 4060808 8 ft/2.4m Trim 1/2in 17 4240099 26 Tie-Strap 20 3311505 1 Locknut 5/16in-18NC 21 4566243 1 Roller 22 0641560 1 Bolt 5/16in-18NC x 7 1/2in 23 0641512 1 Bolt 5/16in-18NC x 1 1/2in 24 1320205 1 Clamp, Hose 25 1670697 1 Cover, Hose 26 0630467 4 Capscrew, Button 5/16in-18NC x 1/2in 27 3300151 6 Nut, Acorn 1/4in - 20NC 28 1320040 1 Clamp, Cable 29 0641410 1 Bolt 1/4in-20NC x 1 1/4in 30 3311405 1 Locknut 1/4in-20NC 31 0100011 AR Loctite #242 (Not Shown) 32 1320195 1 Cover, Clamp 33 1320199 1 Clamp
REV
6
1
7
1
ITEM PART NUMBER QTY
DESCRIPTION
34 0641520 1 Bolt 5/16in-18NC x 2 1/2in 35 3311505 1 Locknut 5/16in-18NC Ref BOOM LIMIT SWITCHES INSTALLATIONS (40ELECTRIC) 0253704 Ref Boom Limit Switches Installations 40electric 0254875 Ref Boom Limit Switches Installations 45electric 101 4360321 2 Switch, Limit 102 4460428 2 Connector, Strain Relief 103 3311005 4 Locknut #10-24NC 105 Ref Bolt, Socket Head Options: #10-24NC x 1 1/2 (Prior to SN
33795)
105 3900168 2 Bolt, Socket Head (#10-24NC x 1 1/2in) (Prior to SN 33795) 105 3900246 2 Bolt, Socket Head (#10-24NC x 1 3/4in) (SN 33795 to Present) 106 Ref Bolt, Socket Head Options: 106 3900097 2 Bolt, Socket Head (#10-24NC x 2 1/8in) (Prior to SN 33795) 106 3900104 2 Bolt, Socket Head (#10-24NC x 2 1/4in) (SN 33795 to Present) 107 1060341 AR Cable, Electrical - 16/2 107 1060341 48 ft/17.7m Cable, Electrical - 16/2 40electric 107 1060341 58 ft/15m Cable, Electrical - 16/2 45electric 108 1670832 1 Cover, Switch Lower Only (SN 33795 to Present) 109 1670833 1 Cover, Switch Upper Only (SN 33795 to Present)
REV
5 4
