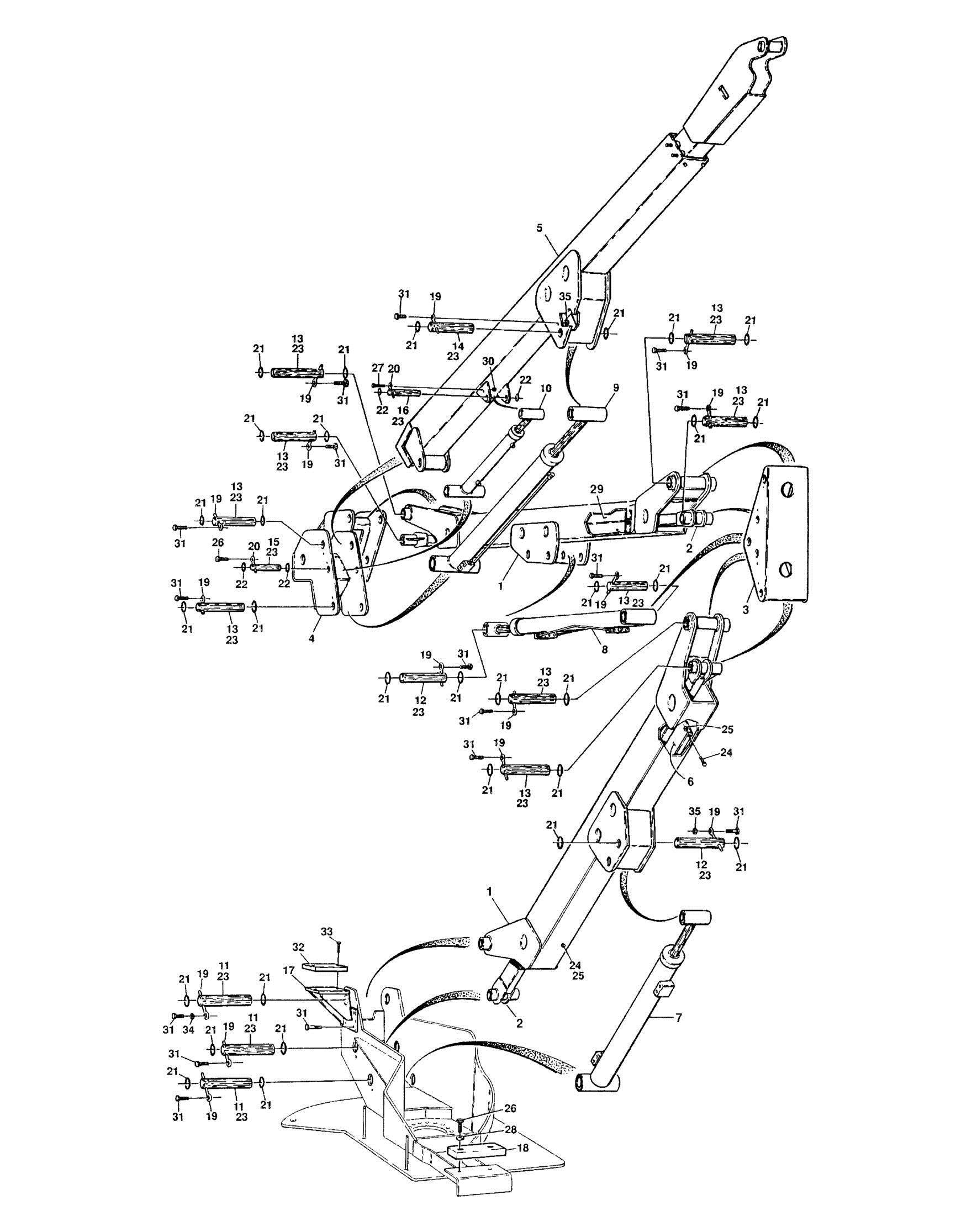

FIGURE 3-3. BOOMS INSTALLATION - MODELS 40ELECTRIC & 45ELECTRIC
ITEM PART NUMBER QTY
DESCRIPTION
Ref BOOMS INSTALLATION (STANDARD PARTS) 0253455 Ref Booms Installation (Standard Parts) 40electric 0254040 Ref Booms Installation (Standard Parts) 45electric (Prior to
February 1995)
0255587 Ref Booms Installation (Standard Parts) 45electric (February 1995
to Present)
1 Ref Tower Boom Weldment Options: 1 0800831 2 Tower Boom Weldment 40electric 1 0800852 2 Tower Boom Weldment 45electric 1 0961726 8 Bushing, Teflon (4 Per Assembly) 2 Ref Link, Level Options (Base and Mid): 2 4844302 2 Link, Level 40electric 2 4844541 2 Link, Level 45electric 2 0961726 8 Bushing, Teflon (4 Per Assembly) 3 Ref Upright Weldment Options (Bottom): 3 4844303 1 Upright Weldment 40electric 3 4844427 1 Upright Weldment 45electric 4 4844304 1 Upright Weldment (Top) 5 Ref Upper Boom Assembly Options (See UPPER BOOM COMPONENTS ASSEMBLY for Breakdown): 5 0800832 1 Upper Boom Assembly 40electric 5 0800853 1 Upper Boom Assembly 45electric 6 Ref Plate, Hose Guard Options: 6 3536491 1 Plate, Hose Guard 40electric 6 3537045 1 Plate, Hose Guard 45electric 7 Ref Cylinder Assembly - Lower Lift Options (See CYLINDER SECTION for Breakdown) 7 1682855 1 Cylinder Assembly - Lower Lift 40electric (Prior to SN 33111) 7 1683518 1 Cylinder Assembly - Lower Lift 40electric (SN 33111 to
Present)
7 1683013 1 Cylinder Assembly - Lower Lift 45electric (Prior to SN 33090) 7 1683521 1 Cylinder Assembly - Lower Lift 45electric (SN 33090 to
Present)
8 Ref Cylinder Assembly - Mid Lift Options (See CYLINDER SECTION for Breakdown): 8 1682861 1 Cylinder Assembly - Mid Lift 40electric (Prior to SN 33111) 8 1683519 1 Cylinder Assembly - Mid Lift 40electric (SN 33111 to Present) 8 1683018 1 Cylinder Assembly - Mid Lift 45electric (Prior to SN 33090) 8 1683522 1 Cylinder Assembly - Mid Lift 45electric (SN 33090 to Present) 9 Ref Cylinder Assembly Options - Upper Lift (See CYLINDER SECTION for Breakdown): 9 1682867 1 Cylinder Assembly Options - Upper Lift (Prior to March 1995) 9 1683337 1 Cylinder Assembly Options - Upper Lift (March 1995 to SN 29898) 9 1683506 1 Cylinder Assembly Options - Upper Lift (SN 29899 through
33089)
9 1683520 1 Cylinder Assembly Options - Upper Lift (SN 33090 to Present) 10 Ref Cylinder Assembly Options - Master (See CYLINDER SECTION for Breakdown): 10 1682877 1 Cylinder Assembly Options - Master (Prior to January 1995) 10 1683325 1 Cylinder Assembly Options - Master (January 1995 to Present) 11 Ref Pin, Pivot Options:
REV
13 8
3
ITEM PART NUMBER QTY DESCRIPTION
11 3422175 3 Pin, Pivot 40electric 11 3422175 3 Pin, Pivot 45electric (Prior to February 1995) 11 3422481 3 Pin, Pivot 45electric (February 1995 to Present) 12 3422176 2 Pin, Pivot 13 Ref Pin, Pivot Options: 13 3422177 9 Pin, Pivot 40electric 13 3422177 9 Pin, Pivot 45electric (Prior to February 1995) 13 3422480 9 Pin, Pivot 45electric (February 1995 to Present) 14 3422178 1 Pin, Pivot 15 3422179 1 Pin, Pivot 16 3422180 1 Pin, Pivot 17 4844467 1 Boom Rest Weldment 18 0561076 1 Block, Boom Rest 19 3841203 15 Keeper, Pin - 1/2in 20 3841143 2 Keeper, Pin - 3/8in 21 3780184 30 O-Ring - 2in 22 3780181 4 O-Ring - 1in 23 3020022 AR Grease 24 0641506 4 Bolt 5/16in-18NC x 3/4in 25 3311505 4 Locknut 5/16in-18NC 26 0641608 3 Bolt 3/8in-16NC x 1in 27 0641610 1 Bolt 3/8in-16NC x 1 1/4in 28 4751600 2 Flatwasher 3/8in 29 Ref Tube Options: 29 4566427 1 Tube 40electric 29 4566356 1 Tube 45electric 30 3311605 1 Locknut 3/8in-16NC 31 0641812 6 Bolt 1/2in-13NC x 1 1/2in 32 0940048 1 Bumper 33 0641806 2 Bolt 1/2in-13NC x 3/4in 34 0641810 12 Bolt 1/2in-13NC x 1 1/4in 35 3311805 3 Locknut 1/2in-13NC
