SF225, 237

Mower Decks

Iseki Front Mowers

Front Mower Section

CHAPTER 4. NAME OF MAJOR COMPONENTS

(1) Mower lift lever

(2) Diff-lock pedal

(3) Parking brake lever

(4) Throttle lever

(5) Collector dump lever

(6) Collector lift lever

(7) Tilt lever

(8) Control panel

(9) Brake pedal

(10) HST forward travel pedal

(11) HST reverse travel pedal

(12) 4WD lever

(13) Cup holder

(14) Fuel cap

CHAPTER 5. CONTROLS AND METERS

1.1.

FIG. 5-2

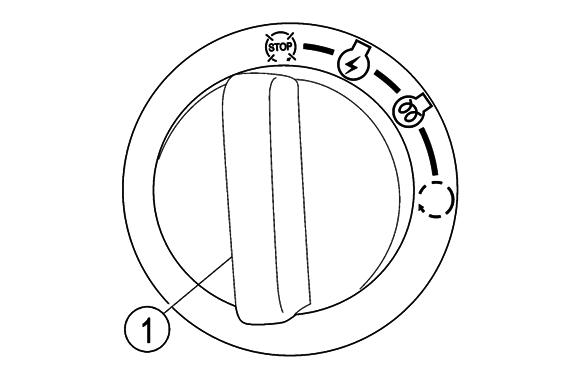

(1) Starter switch

:OFF position: the engine stops and all electric circuits are turned off.

:ON position: the key turns to this position after starting the engine and remains at this position during operation.

:START position: the starter motor is switched on.

1.2. COMBINATION SWITCH

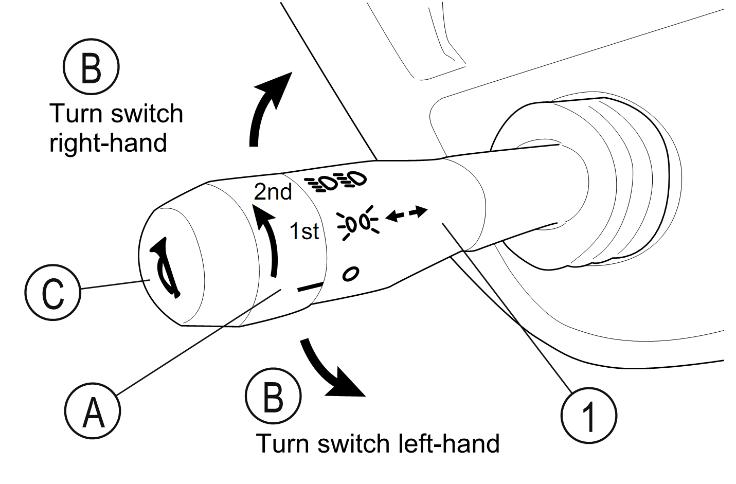

This switch includes the head lamp switch, turn signal switch and horn button.

(A) Head Lamp Switch

OFF position: Off

1st position: Position lamp (illuminates meter panel)

2nd position: Position lamp & head lamp (low beam or high beam can be selected by moving combination switch)

(B) Turn Signal Switch

: Right-hand turn signal

: Off : Left-hand turn signal

NOTE: ・Turn signal switch works while the starter switch is in the ON position.

・Turning indicator lamps will not self-cancel. Return the turn signal switch lever to the center position after completing turn.

(C) Horn Button

The horn is activated by pushing the horn mark.

Turn switch right-hand

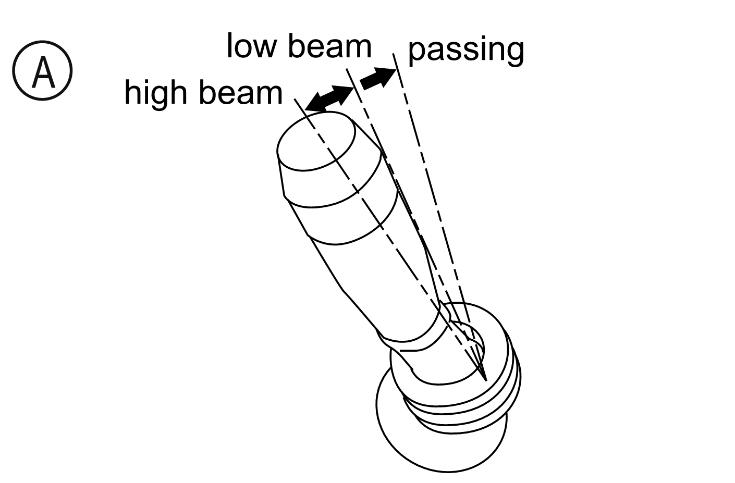

FIG. 5-3 low beam high beam passing A

FIG. 5-4

1.3. BEACON SWITCH

The beacon lamp (optional) illuminates while beacon switch is in the ON position.

1.4. HAZARD SWITCH

The turning signal lamps blink while hazard switch is in the ON position.

FIG. 5-5

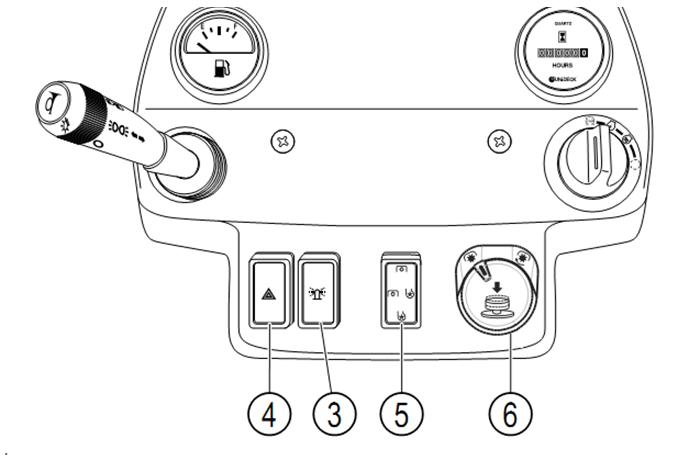

(3) Beacon switch (4) Hazard switch

(5) Mode select switch (6) PTO switch

(7) Cutting height adjust switch

1.5. PTO SWITCH (6)

PTO switch (6) engages and disengages both blower and mower PTO.

To engage PTO, PTO switch (6) to right and pull it up.

To disengage PTO, push in PTO switch (6). This switch is spring loaded and automatically returns to off position.

NOTE: When the collector or the mower deck is lifted, blower PTO cannot be operated.

1.6. MODE SELECT SWITCH (5)

Mode select switch (5) selects which function, blower and mower, to be operated. This switch is a seesaw switch and has three positions.

1.7. CUTTING HEIGHT ADJUST SWITCH (SCMB60-H)

NOTE: Cutting height adjust switch (1) is for SCMB60H. Therefore, this switch will be installed to SF237 only when customer selects SCMB60-H a b 1

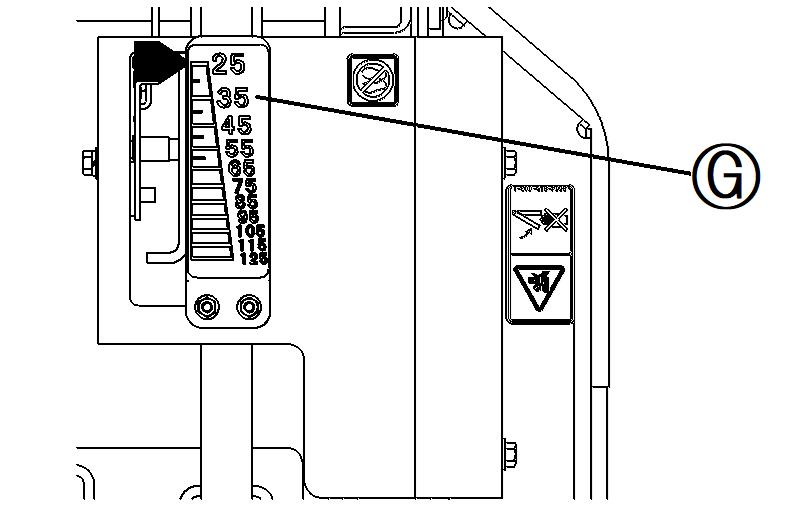

Before starting mowing, adjust the cutting height with cutting height adjust switch (1). Cutting height can be adjusted between 25 mm to 125 mm. Cutting height can be confirmed by the gauge (G).

(a): Raise the cutting height.

(b): Lower the cutting height.

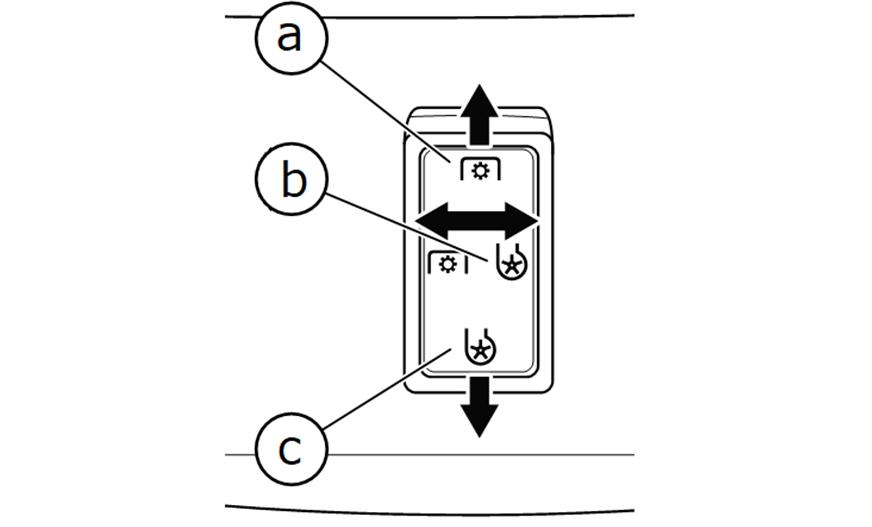

(a) Front position: Mower operating mode.

(b) Center position: Mower/Blower operating mode.

(c) Back position: Blower operating mode.

1.8. MONITOR LAMP ARRAY (SF237)

: :Turn signal lamp (left-hand side): The lamp is blinked while the turn signal switch is in the left-hand turn position, or hazard switch is ON position.

: :Beacon lamp:

The lamp illuminates while the beacon is used. Beacon lamp is optional.

: :Fuel empty lamp:

The lamp illuminates while the fuel tank is empty.

:Fuel filter sedimenter lamp: The lamp illuminates when water accumulates in the filter.

IMPORTANT: When the lamp is illuminated, it means that water is accumulated in the filter. Therefore, drain water from fuel filter drain plug.

:Parking lamp:

The lamp illuminates while starter switch is in the ON position and parking brake is applied.

IMPORTANT: Always release the parking brake lever and make sure that the lamp is turned off before driving the front mower to prevent abnormal brake wear.

:Mower mode lamp:

The lamp illuminates when mode select switch is set to "Mower operating mode" or "Mower/Blower operating" mode.

:Blower mode lamp:

The lamp illuminates when mode select switch is set to "Blower operating mode" or "Mower/Blower operating" mode.

:Grass collector lamp:

The lamp works only when the machine is equipped with the collector. It illuminates and the warning horn also sounds when the collector is filled with grass with the PTO to ON position. When the mower PTO and blower PTO are turned to OFF, the warning horn stops. The lamp turns off when the collector become empty.

:Mower PTO lamp:

The lamp illuminates while the mower PTO is operated.

:Blower PTO lamp:

The lamp illuminates while the blower PTO is operated.

:Position lamp:

The lamp illuminates while position lamp of combination switch is ON position.

:High beam lamp:

The lamp illuminates while high beam light of combination switch is ON position.

:Reverse radiator fan lamp:

The lamp illuminates while the radiator fan turns in reverse.

:4WD lamp:

The lamp illuminates while 4WD lever is in the LOCK(PERM) position and turns off while it is in the AUTO(AUT.) position.

:Turn signal lamp (right-hand side): The lamp illuminates while the turn signal switch is in the right-hand turn signal, or hazard switch is ON position.

:NOX lamp:

The lamp illuminates together with "Diagnosis lamp" when EGR device, reduce NOx in the exhaust gas, is not functioning.

IMPORTANT: When the lamp is illuminated, stop operating immediately and contact your dealer.

:Oil pressure lamp:

The lamp illuminates when the engine oil is not circulating normally. It also illuminates when the key turns to the ON position or the START position while the engine stops but turns off as soon as the engine starts.

:Engine coolant warning lamp:

The lamp illuminates while the engine coolant is over-heated.

IMPORTANT: When the engine coolant is over-heated, the monitor lamp is illuminated, and PTO stops. At the same time the warning horn sounds for 2 seconds. When the monitor lamp is illuminated, reduce engine speed to idle, and wait until the lamp turns off. When the lamp turns off, stop the engine and troubleshoot for overheating (clean up clogged grass or dust around engine, radiator and etc.) Then restart operation.

WARNING: When inspecting the radiator, be sure that the engine cools down sufficiently. Never release the radiator cap while the coolant is hot, or boiling water will gush out.

:Battery charge lamp:

The lamp illuminates while the battery is not being charged. It also illuminates up when the key turns to the ON position or the START position while the engine is not running, but turns off as soon as the engine starts.

:Diagnosis lamp:

The lamp illuminates when there is an abnormality in the engine.

IMPORTANT: When the lamp is illuminated, stop operating immediately and contact your dealer.

:Glow lamp:

The lamp illuminates when the starter switch is turned to GLOW position. (The lamp does not turn off if glow is ready.)

:Exhaust gas high temperature & Diesel exhaust gas treatment system warning lamp: The lamp illuminates when the exhaust gas becomes hot. (During DPF regeneration, exhaust gas becomes hot and the lamp illuminates.) Also, the lamp illuminates together with Diagnosis lamp" when DPF device, reduce PM in the exhaust gas, is not functioning.

IMPORTANT: When the lamp is illuminated which means that exhaust gas is hot, you can continue operating but do not operate near long grasses and burnable stuff. When the lamp is illuminated together with "Diagnosis lamp" which means that DPF device is not functioning, stop operating immediately and contact your dealer.

1.9. FUEL GAUGE (SF237)

Fuel gauge (1) indicates fuel level in the fuel tank when the starter switch is at the "ON" position.

NOTE: The gauge cannot indicate an accurate fuel level when the front mower is on the slope. It takes a little time to indicate an accurate level after the front mower recovers its horizontal position.

1.10. HOUR METER (SF237)

Hour meter (2) counts operation hours of the front mower and show them in 5-digit number. The least significant figure shows one tenth hour of operation.

1.11. COOLANT TEMPERATURE GAUGE (SF237)

Coolant temperature gauge (3) indicates engine coolant temperature when starter switch is at the "ON" position.

C: - Shows too cool temperature for severe work. Warm up until applying heavy load.

H: - Indicates overheating. Reduce engine speed to idle, allow to run at no load several minutes and investigate cause (refer to “Troubleshooting”)

1.12. SOOT LOAD / FAILT CODE INDICATION (SF237)

Soot load (1) is displayed on the display.

When the ECU detects an abnormality, fault code will be displayed on the same place. Consult your dealer.

NOTE: Fault code is listed on" CHAPTER 10. TROUBLESHOOTING 7. Fault code".

1.13. DPF REGENERATION SWITCH (SF237) (Regeneration request lamp)

DPF regeneration switch is for conducting "DPF manual regeneration".

2 1

(1) Fuel gauge (2) Hour meter

(3) Coolant temperature gauge

IMPORTANT: When the engine coolant is over-heated, the warning horn sounds for 2 seconds. Rotation of the radiator fan is reversed for a few second, and then PTO is stopped automatically. When the warning horn sound, decelerated the engine to idling, and wait until the warning horn turns off. And stop the engine and correct the trouble (clogged grass or dust around engine, radiator, etc.). Then restart operation.

(1) DPF regeneration request lamp/switch

(2) DPF regeneration inhibit lamp/switch

1. When Manal regeneration is required.

• Buzzer sounds

• Regeneration request lamp (1) flashing

2. Stop working and park your vehicle in a safe place.

NOTE: Make sure there are no flammable materials around the exhaust pipe and the surrounding safety.

3. HST pedal in neutral, switch off PTO, set the throttle lever to idling speed, and apply the parking brake strongly.

4. Press DPF regeneration switch (1) for 3 seconds.

5. Engine revolution increases automatically and DPF regeneration starts.

IMPORTANT: DO NOT depress HST pedal or release parking brake except in case of emergency. If so, DPF regeneration stops.

6. It takes 30 minutes to finish DPF regeneration. When DPF regeneration finishes, engine revolution decreases.

1.14. DPF REGENERATION INHIBIT SWITCH (Regeneration inhibit

lamp) (SF237)

During DPF regeneration, exhaust gas becomes hot. In case that you want to inhibit DPF regeneration, operating near flammable material or other necessary reasons,

・ Press DPF regeneration inhibit switch (2) for 3 seconds.

・ While DPF regeneration is inhibited, regeneration inhibit lamp (2) illuminate.

・ DPF regeneration inhibition is able to cancel by turning the key off or pressing DPF regeneration inhibit switch (2) again for 3 seconds.

1.15. ECO-MODE SWITCH (SF237)

Eco-mode switch (1) is for reducing maximum engine rpm. While Eco-mode switch is ON, maximum engine rpm becomes 2 550min-1 which is 300 rpm lower than standard engine rpm 2 860 min-1

1.16. COOLANT TEMPERATURE WARNING SYSTEM (HORN AND LAMP)

When the engine coolant is overheated, the warning horn sounds for 2 seconds and Engine coolant warning lamp illuminates. Rotation of the radiator fan is reversed for a few seconds, and then PTO is stopped automatically.

When the warning horn sounds, decelerated the engine to idling, and wait until the warning horn turns off.

When the warning horn turns off, stop the engine and correct the trouble (clogged grass or dust around engine, radiator, etc.). Then re-start operation.

WARNING: When inspecting the radiator, be sure that the engine cools down sufficiently. Never release the radiator cap while the coolant is hot, or boiling water will gush out.

2.1. STARTER SWITCH (SF225)

(C)

The horn is activated by pushing the horn mark.

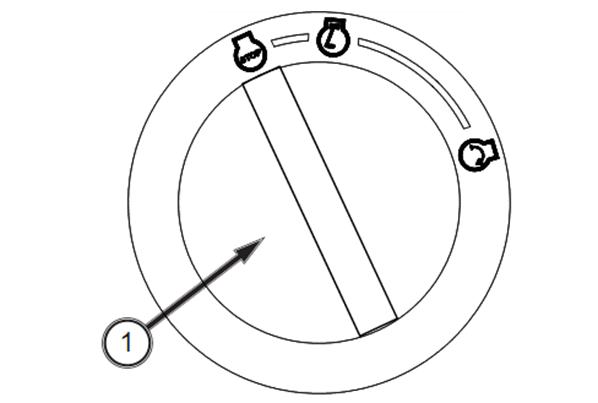

(1) Starter switch

:OFF position: the engine stops, and all electric circuits are turned off.

:ON position: the key turns to this position after starting the engine and remains at this position during operation.

:GLOW position: the engine is pre-heated

:START position: the starter motor is switched on.

2.2. COMBINATION SWITCH

This switch includes the head lamp switch, turn signal switch and horn button.

(A) Head Lamp Switch

OFF position: Off

1st position : Position lamp (illuminates meter panel)

2nd position : Position lamp & head lamp (low beam or high beam can be selected by moving combination switch)

(B) Turn Signal Switch

: Right-hand turn signal

: Off

: Left-hand turn signal

NOTE:

・Turn signal switch works while the starter switch is in the ON position.

・Turing indicator lamps will not self-cancel. Return the turn signal switch lever to the center position after completing turn.

2.3. BEACON SWITCH (SF225)

The beacon lamp (optional) illuminates while beacon switch is in the ON position.

2.4. HAZARD SWITCH (SF225)

The turning signal lamps blink while hazard switch is in the ON position.

2.5. PTO SWITCH (6)

CHAPTER 5. CONTROLS AND METERS

2.6. MODE SELECT SWITCH (5)

Mode select switch (5) selects which function, blower and mower, to be operated. This switch is a seesaw switch and has three positions.

(3) Beacon switch (4) Hazard switch (5) Mode select switch (6) PTO switch (7) Cutting height adjust switch

PTO switch (6) engages and disengages both blower and mower PTO.

To engage PTO, PTO switch (6) to right and pull it up.

To disengage PTO, push in PTO switch (6). This switch is spring loaded and automatically returns to off position.

NOTE: When the collector or the mower deck is lifted, blower PTO cannot be operated.

(a) Front position: Mower operating mode.

(b) Center position: Mower/Blower operating mode.

(c) Back position: Blower operating mode.

:Turn signal lamp (left-hand side):

The lamp is blinked while the turn signal switch is in the left-hand turn position, or hazard switch is ON position.

: :Grass collector lamp:

The lamp works only when the machine is equipped with the collector. It illuminates and the warning horn also sounds when the collector is filled with grass with the PTO to ON position. When the mower PTO and blower PTO are turned to OFF, the warning horn stops. The lamp turns off when the collector become empty.

:4WD lamp:

The lamp illuminates while 4WD lever is in the LOCK(PERM) position and turns off while it is in the AUTO(AUT.) position.

:Reverse radiator fan lamp:

The lamp illuminates while the radiator fan turns in reverse.

:Oil pressure lamp:

The lamp illuminates when the engine oil is not circulating normally. It also illuminates when the key turns to the ON position or the START position while the engine stops but turns off as soon as the engine starts.

: :Battery charge lamp:

The lamp illuminates while the battery is not being charged. It also illuminates up when the key turns to the ON position or the START position while the engine is not running, but turns off as soon as the engine starts.

: :Beacon lamp:

The lamp illuminates while the beacon is used. Beacon lamp is optional.

:Mower PTO lamp:

The lamp illuminates while the mower PTO is operated.

:Blower PTO lamp:

The lamp illuminates while the blower PTO is operated.

:Turn signal lamp (right-hand side):

The lamp illuminates while the turn signal switch is in the right-hand turn signal, or hazard switch is ON position.

: :Fuel empty lamp:

The lamp illuminates while the fuel tank is empty.

:Parking lamp:

The lamp illuminates while starter switch is in the ON position and parking brake is applied.

IMPORTANT: Always release the parking brake lever and make sure that the lamp is turned off before driving the front mower to prevent abnormal brake wear.

:Engine coolant warning lamp: The lamp illuminates while the engine coolant is over-heated.

IMPORTANT: When the engine coolant is over-heated, the monitor lamp is illuminated, and PTO stops. At the same time the warning horn sounds for 2 seconds. When the monitor lamp is illuminated, reduce engine speed to idle, and wait until the lamp turns off. When the lamp turns off, stop the engine and troubleshoot for overheating (clean up clogged grass or dust around engine, radiator and etc.) Then restart operation.

WARNING: When inspecting the radiator, be sure that the engine cools down sufficiently. Never release the radiator cap while the coolant is hot, or boiling water will gush out.

:Low beam lamp:

The lamp illuminates while low beam light of combination switch is ON position.

:High beam lamp:

The lamp illuminates while high beam light of combination switch is ON position.

:Position lamp:

The lamp illuminates while position lamp of combination switch is ON position.

:Mower mode lamp:

The lamp illuminates when mode select switch is set to "Mower operating mode" or "Mower/Blower operating" mode.

:Blower mode lamp: The lamp illuminates when mode select switch is set to "Blower operating mode" or "Mower/Blower operating" mode.

:Glow lamp:

The lamp illuminates when the starter switch is turned to ON position. (The lamp turns off when pre-heating is finished.)

2.8. FUEL GAUGE (SF225)

The gauge indicates fuel level in the fuel tank when the starter switch is in the ON position. When needle is the closer to “F”, the more fuel is in the fuel tank. So not let the fuel gauge reach the empty point, "E".

NOTE: The gauge cannot indicate an accurate fuel level when the front mower is on the slope. It takes a little time to indicate an accurate level after the front mower recovers its horizontal position.

2.9. HOUR METER (SF225)

The hour meter counts operation hours of the front mower and show them in 5-digit number. The least significant figure shows one tenth hour of operation.

2.10. COOLANT TEMPERATURE WARNING SYSTEM (HORN AND LAMP)

When the engine coolant is overheated, the warning horn sounds for 2 seconds and Engine coolant warning lamp illuminates. Rotation of the radiator fan is reversed for a few seconds, and then PTO is stopped automatically.

When the warning horn sounds, decelerated the engine to idling, and wait until the warning horn turns off.

When the warning horn turns off, stop the engine and correct the trouble (clogged grass or dust around engine, radiator, etc.). Then re-start operation.

WARNING: When inspecting the radiator, be sure that the engine cools down sufficiently. Never release the radiator cap while the coolant is hot, or boiling water will gush out.

3. CONTROL PEDALS & LEVERS

3.1.

The front mower stops travelling by depressing this pedal.

3.2.

Depress this pedal, and the front mower starts moving forward. Forward travelling speed is controlled only by depressing it: forward travel accelerates and decelerates by how much the pedal is depressed.

which will cause various troubles such as difficulty in stopping the front mower, changing over between forward travel and reverse travel, etc., which is very dangerous.

When the HST units is out of order, ask your dealer to repair it. The adjustment of neutral position of the HST unit should be done by your dealer.

3.4. DIFF-LOCK PEDAL (4)

To minimize the turning radius of the front mower, the differential gear system is installed, which causes the right and left driving wheels to turn at different speed when turning. On the other hand, it causes the wheels to slip on wet grass or soft ground. In such a case, lower engine speed and depress the diff-lock pedal, and both wheels turn at the same speed, which results in straighter travelling.

(1) Brake pedal

(2) HST forward travel pedal

(3) HST reverse travel pedal

(4) Diff-lock pedal

(5) Parking brake lever

(6) Tilt lever

3.3. HST REVERSE TRAVEL PEDAL (3)

Depress this pedal, and the front mower starts moving backward. The buzzer sounds when the front mower is moving to backward. Reverse travelling speed is controlled only by depressing it: reverse travel accelerates and decelerates by how much the pedal is depressed.

IMPORTANT: After a long time of use, the neutral position of the HST unit may be changed,

CAUTION:

・Never use the diff-lock when travelling at high speeds.

・It is very dangerous to attempt to turn the front mower with the diff-lock pedal depressed. When turning the front mower, be sure to release the diff-lock pedal.

・When the diff-lock is not released despite releasing the diff-lock pedal, stop the front mower immediately and ask your dealer to repair.

3.5. PARKING BRAKE LEVER (5)

Use parking brake lever when parking the front mower. Pull up the lever, and parking brake is applied. In order to maximize the performance of the parking brake, depress the brake pedal, and then apply the parking brake. Push in the top button and lower the lever to release the brake. The parking lamp illuminates with starter switch in the ON position while parking lever is pulled upward. Release the parking lever before starting the front mower and make sure that the parking lamp turns off.

CAUTION:

・ Never start travelling with the parking brake applied, or the brake performance will deteriorate soon or, even worse, the brake system could break down. In the worst case, the brake system may cause fire by heated brake drum if inflammables around the brake system is not properly removed.

・ When leaving the front mower, be sure to apply the parking brake.

NOTE: When the HST forward travel pedal or HST reverse travel pedal is depressed with applying the parking lever, the warning horn sounds.

3.6. TILT LEVER (6)

The steering wheel column is tillable to gain the optimum steering wheel position. To adjust the angles, turn the tilt lock lever anti-clockwise while holding the steering wheel with the other hand, and the lock is released. Select the most adequate angle. Turn the lever clockwise securely to lock the steering wheel column.

CAUTION: Only adjust steering tilt when the machine is parked

4. FENDER PANEL

4.1.

MOWER LIFT LEVER (1)

With this lever, the lift link for mower deck is raised or lowered.

DOWN: Move the lever forward, the lift link is lowered. The lever can be held on the lowest position. Return the lever to neutral by hand.

UP: Move the lever backward, the lift is raised. Lever returns to neutral when your hand is released.

CAUTION: When servicing or leaving the front mower, be sure to lower the mower deck to the ground.

IMPORTANT: Do not hold the mower lift lever too long in the UP position, or it may damage the hydraulic system.

(1) Mower lift lever

(2) Collector lift lever

(3) Collector dump lever

(4) Throttle lever

4.2. COLLECTOR LIFT LEVER (2)

With this lever, the collector is raised or lowered. DOWN: Move the lever forward, the collector is lowered. UP: Move the lever backward, the collector is raised.

4.3. COLLECTOR DUMP LEVER (3)

With this lever, the collector is dumped or closed.

CLOSE: Move the lever forward, the container is closed. DUMP: Move the lever backward, the collector is dumped.

4.4. THROTTLE LEVER (4)

With this lever, the engine speed is controlled. LOW: Move the lever backward (towards the " turtle " mark), the engine decelerates.

HIGH:Move the lever forward (towards the " rabbit " mark), the engine accelerates.

5. OTHER CONTROLS

5.1.

Safety Switches

The safety devices are equipped on the operator's seat, brake pedal and engine hood. Before starting engine, engine hood should be closed, the operator should be seated in the operator's seat, and depress the brake pedal fully.

CAUTION: When the engine does not start due to a defective safety switch or does not stop when the operator has left the operator's seat, consult your dealer at once without fail.

5.2. HST UNLOADING BUTTON

Keep pulling up the HST unloading lever while unloading the HST of pressure, which allows the front mower to move without starting the engine. The button should be accessed from right side. (To access from left side, it needs to remove the cover by removing bolt.)

CAUTION: Make sure to move the front mower for only short distance. Do not use it for towing.
