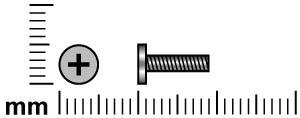

Phillips PM2.0×9.0 screw
Color Quantity Length Thread Head width
Black 26 9.0 mm 2.0 mm 5.0 mm
Where used:

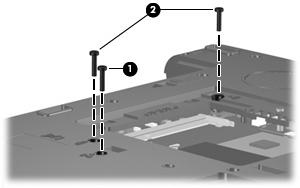

(1) One screw that secures the optical drive to the computer (2) Two screws that secure the keyboard to the computer

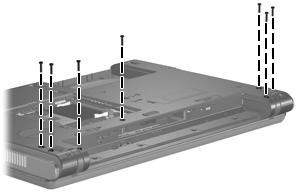

Where used: 7 screws that secure the switch cover to the computer

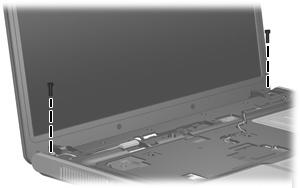

Where used: 2 screws that secure the display assembly to the computer

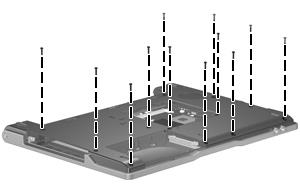

Where used: 12 screws that secure the base enclosure to the computer
Where used:

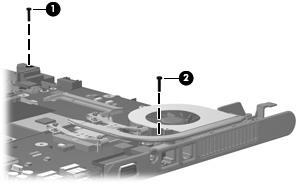

(1) One screw that secures the fan assembly to the computer (2) One screw that secures the speaker to the computer
