VI. TRANSPORTING

NOTE:

Be sure to read and understand the trailer’s owner and operator manual. Hitch the trailer to the pulling vehicle as shown in the trailer’s owner and operator manual.

Towing

NOTE:

It is not recommended that the detasseler be towed, but if it should ever be necessary, follow these steps carefully:

1. Fold the outriggers in and lock them to the detas seler.

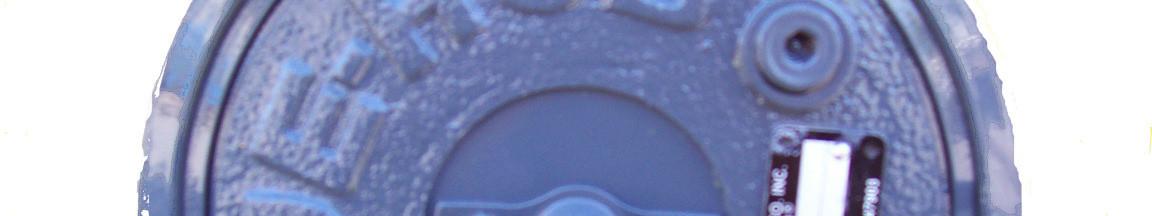

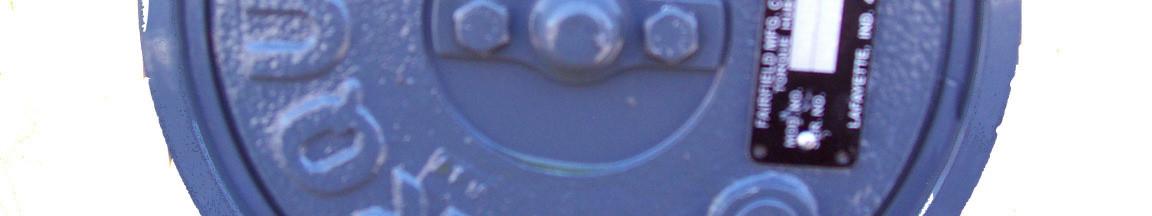

2. Disengage Torque Hubs® by removing the two outer cap bolts, reversing the cap, and replacing the bolts. This process pushes on a spring-loaded splined shaft, disengaging the Torque Hub®. Failure to do this may damage the hub or brakes.

(fig.6.6)

NOTE:

Wheel motors will be damaged if these steps are not taken.

NOTE:

Extra care should be taken when loading the detasseler onto any trailer. Consider whether it is best to back the detasseler on or drive the detasseler forward.

When re-engaging Torque Hubs®, make sure the spring loaded splined shaft has returned to its expended position.

VI. TRANSPORTING

NOTE:

In order for the power steering system to function, the detasseler’s engine must be running.

3. Turn on the flashing hazard/warning lights.

4. When towing, it is necessary that two vehicles of sufficient size and weight for adequate pulling a nd braking are used. One of these vehicles is used for pulling the detasseler; the second vehicle for braking if the detasseler starts to overtake the t owing vehicle, such as going downhill. The reason for this is the detasseler, once the Torque Hubs ® have been disengaged, has no braking power of its own. Use extreme caution.

Secure items (tow straps, chains, etc.) between towing vehicle, braking vehicle, and detasseler to ensure that they will not dislodge.

5. If necessary, relocate the SMV emblem so that it is visible from the rear.

6. Always reduce towing speed well in advance of an y anticipated turns.

7. Know and obey the state laws for towing farm equipment on public roads and highways.

NOTE:

Excessive speed may cause damage to the Torque Hubs ® as well as the hydrostatic system. Do not exceed 25 MPH when towing detasseler.

NOTICE:

-The safest way to transport your detasseler is to drive it.

-Please use extreme caution when attempting to transport in any other way.

-Remember that you are not the only thing on the roadways– be cautious of other drivers and courteous.
