Engagement

Always engage the lift arm support device before leaving the operator’s compartment to work on the loader with the lift arm raised.

To engage the lift arm support device:

1. Lower the lift arm fully onto the loader frame.

2. Stop the engine.

3. Leave the operator’s compartment. Remove the lock pin holding the support device up against the lift arm. Allow the support device to drop down into contact with the lift cylinder.

4. Return to the operator’s compartment and start the engine.

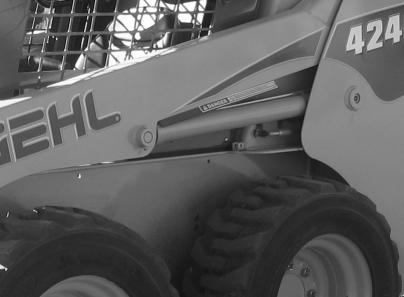

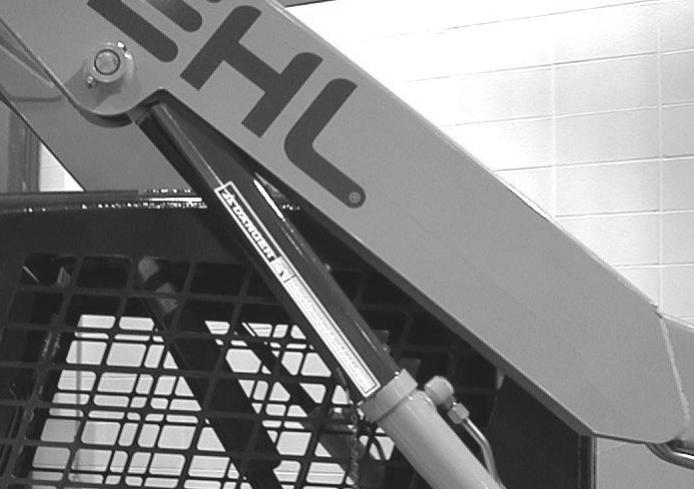

5. Raise the lift arm until the lift arm support device drops over the end of the lift cylinder and around the cylinder rod. Slowly lower the lift arm until the support device contacts the top end of the lift cylinder.

6. Be sure the support device is secure against the cylinder end. Then, stop the engine, remove the key and leave the operator’s compartment.

Disengagement

Warning

Never leave the operator’s compartment to disengage the lift arm support device with the engine running.

To return the lift arm support device to its storage position:

1. Raise the lift arm completely.

2. Stop the engine, remove the key and take it with you.

Warning

Before testing the loader, always clear people from the area.

3. Before leaving the operator’s compartment, be sure that the lift arm is being held in the raised position by the solenoid valve.

4. To store the support device, raise it up until it contacts the lift arm. Slide the lock pin through the support device and catch under the lift arm. Once the pin is secure, flip the lock pin loop so that it locks the pin in.

Accessory Outlet

The optional 12-volt accessory outlet is located at the bottom of the left instrument panel.

Engine Speed Control

A right-hand controlled throttle lever is provided on all models for adjusting the engine speed. Move the control forward to increase the engine speed and rear
