Replacing the LCD Module

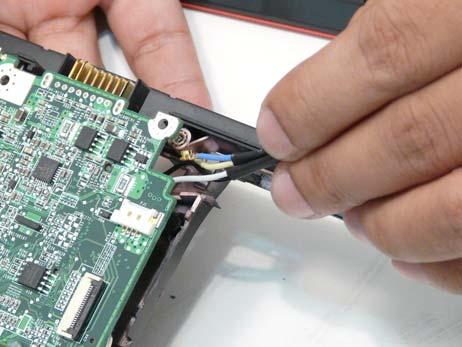

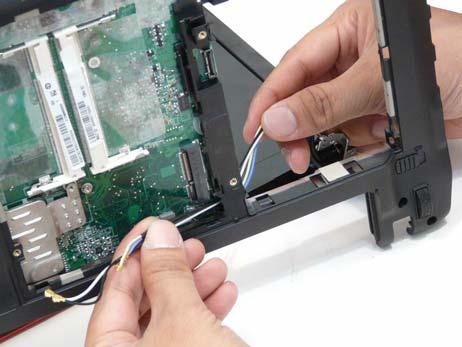

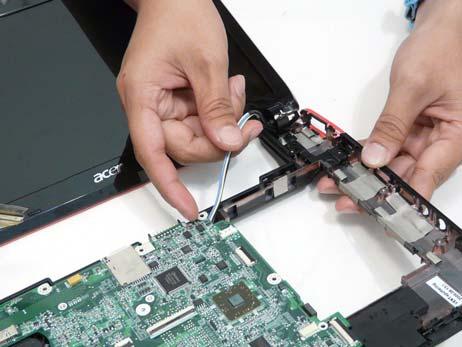

1. Thread the antenna cables through to the bottom side of the lower cover and place in the retention guides.

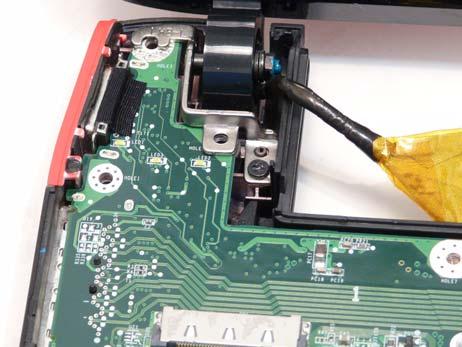

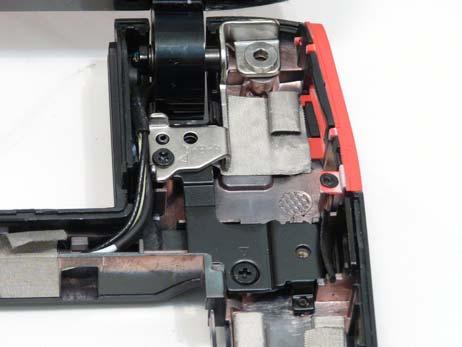

2. Place the hinges down on the lower case and ensure correct positioning of the antenna cables and the

LCD cable and replace the two (2) screws.

Step Screw Quantity Screw Type.

LCD Module Assembly 2*5 2
