Removing the Hard Disk Drive Module

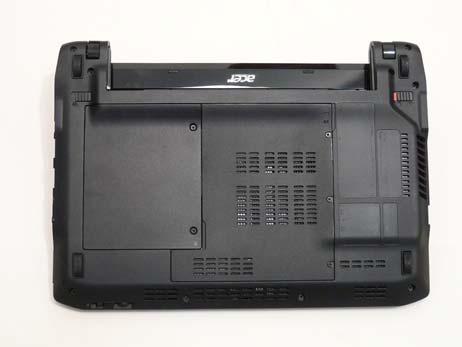

1. See “Removing the Battery Pack” on page 42. 2. Loosen the two (2) captive screws on the HDD Cover.

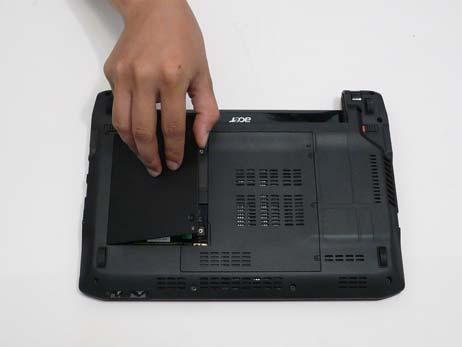

3. Remove the HDD Cover from the inside edge.

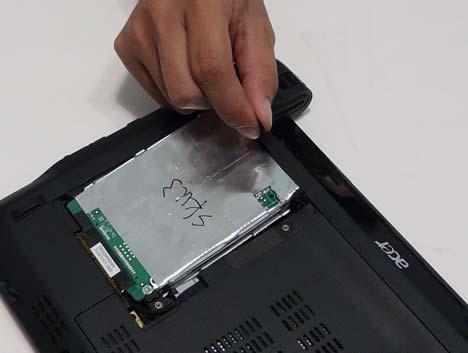

5. Lift up on the black tab to pull the HDD out but do not remove completely. Flip the HDD over to allow access to the HDD cable.

CAUTION: Do not pul the HDD out before disconnecting the HDD cable.

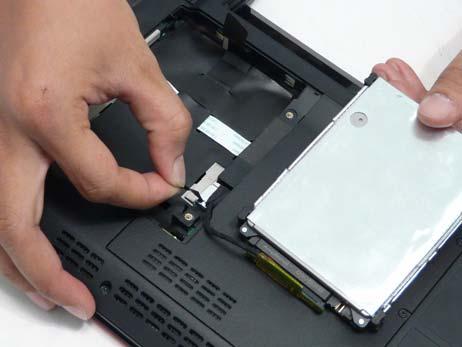

6. Grasp the HDD cable connector tab and pull up.
