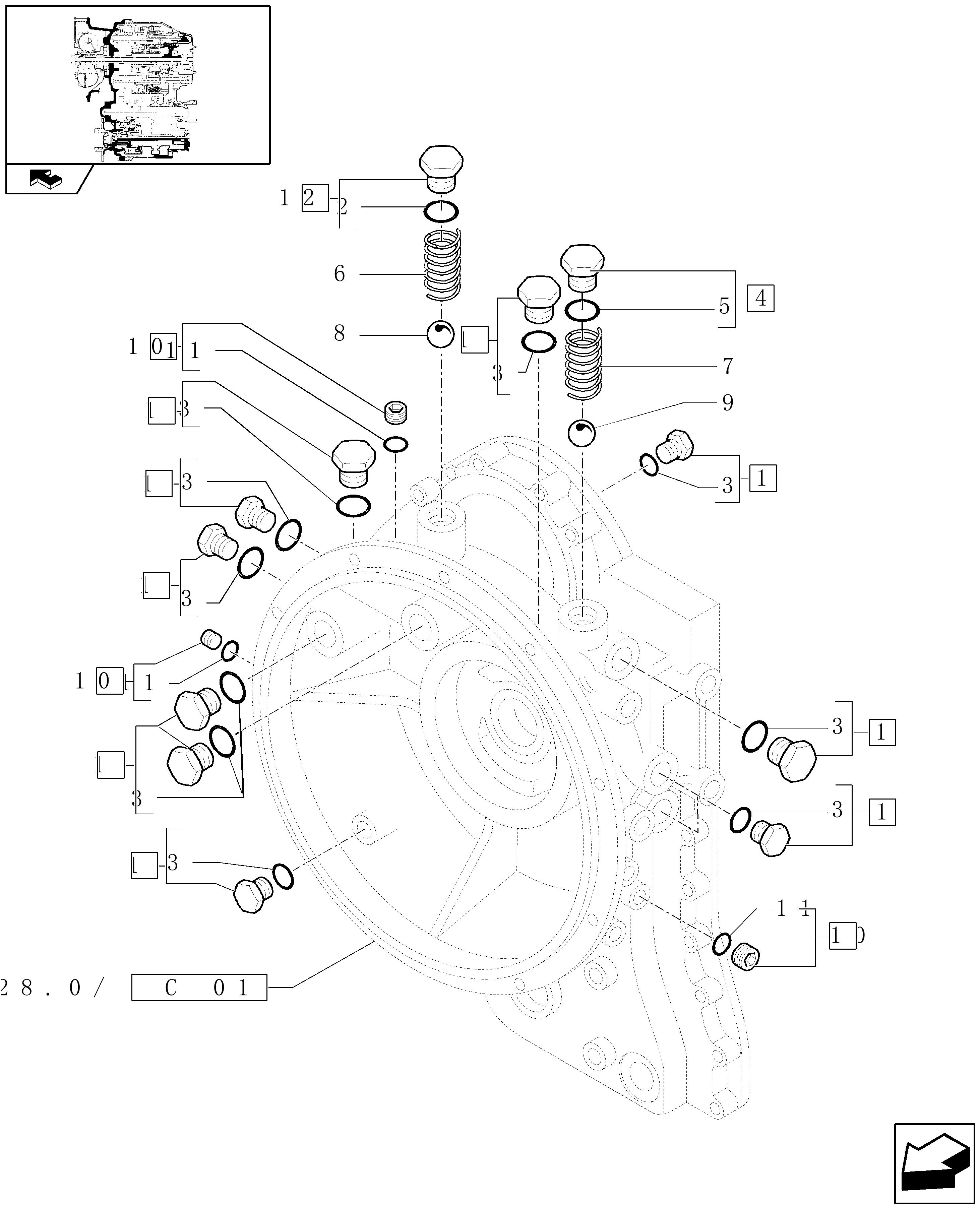

LOCK VALVES COMPONENTS - EU

1.28.0/ C 02 p1 1/2018

GEARSHIFT BOX COMPONENTS (4WD POWER-SHIFT)

1.28.0/ C 02 p1 1/2018

GEARSHIFT BOX COMPONENTS (4WD POWER-SHIFT)

REF FN PART NUMBER

1 9970283 2 85808321 3 85808323 4 9968987 5 9968986 6 85808320 7 9968985 8 85808319 9 9968984 10 9970284 11 9968989 12 85808322

YR/SN QTY DESCRIPTION

8 PLUG ASSY 1 O-RING 8 O-RING 0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro 1 PLUG ASSY 1 O-RING 1 SPRING 1 SPRING 1 BALL 19.05mm OD 1 BALL 3 MAGNETIC PLUG PLUG, MAGNETIC ASSY 3 O-RING 1 PLUG ASSY

B110B-BACKHOE LOADER TIER 3 (2008) B115B-BACKHOE LOADER TIER 3 (2008)

1.28.0/ C 03 p1 1/2018

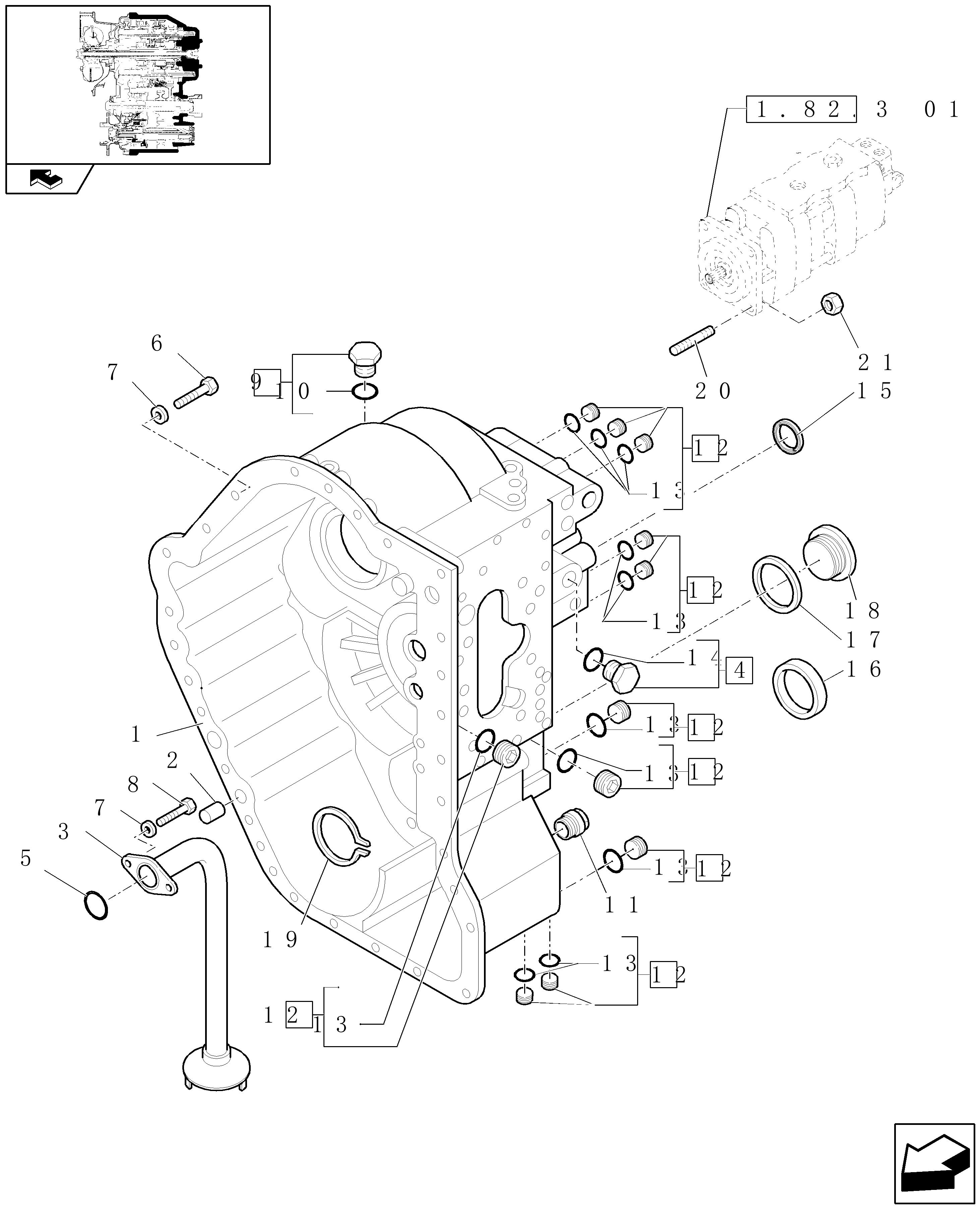

GEARSHIFT BOX (4WD POWER-SHIFT)

GEARSHIFT BOX (4WD POWER-SHIFT)

REF FN PART NUMBER

1 85812225 2 9969017 3 85808328 4 85808330 5 85808327 6 9969424 7 9968996 8 9969000 9 9970283 10 85808323 11 87603872 12 9970284 13 9968989 14 9969429 15 291527A1 16 9970285 17 9970004 18 85808331 19 87603894 20 85803991 21 85802684 1.28.0/ C 03 p1 1/2018

YR/SN QTY DESCRIPTION

1 TRANSMISSION HOUSING 2 DOWEL 1 TUBE 1 PLUG ASSY 1 O-RING 3.53mm Thk x 31.34mm ID, Cl 7 7 SCREW 7 LOCK WASHER 2 SCREW 1 PLUG ASSY 1 O-RING 0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro 1 PLUG 11 MAGNETIC PLUG PLUG, MAGNETIC ASSY 11 O-RING 1 SEALING RING 1 SEAL 85 x 70 x 8 mm thick; Replaces 9969001 1 PLUG 1 SEAL 1 PLUG 1 SNAP RING 4 STUD M12x1.75 4 NUT

B110B-BACKHOE LOADER TIER 3 (2008) B115B-BACKHOE LOADER TIER 3 (2008)

1.28.0/ C 04 p1 1/2018

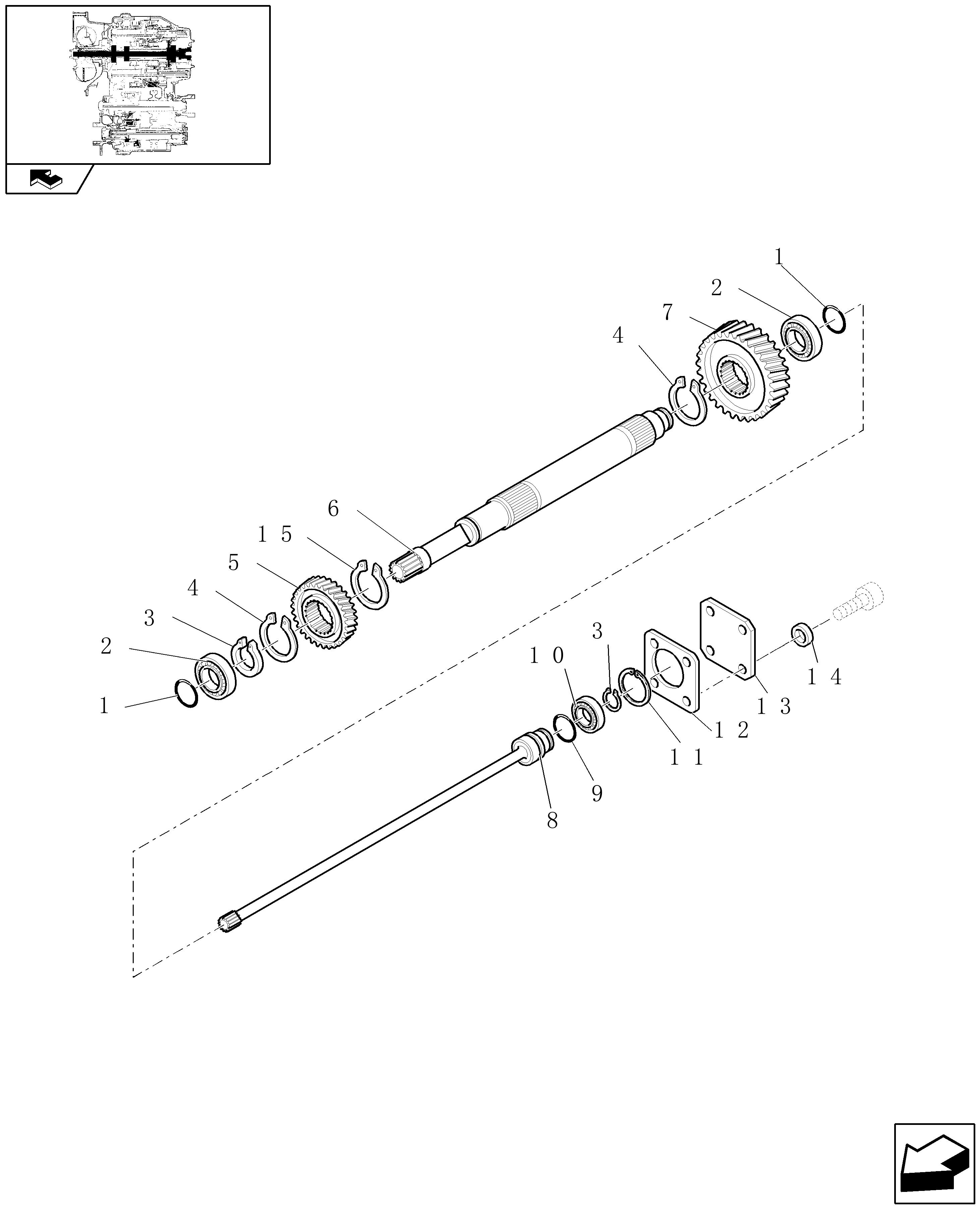

HYDRAULIC PUMP SHAFT ASSY (4WD POWER-SHIFT)

PUMP DRIVE AND INPUT SHAFT GROUP

1.28.0/ C 04 p1 1/2018

HYDRAULIC PUMP SHAFT ASSY (4WD POWER-SHIFT)

REF FN PART NUMBER

1 9969070 2 87603837 3 9969023 4 9969059 5 85808356 6 87603831 7 85808357 8 85808333 9 9969021 10 9969022 11 9969024 12 9970015 13 9969027 14 9970016 15 85808355

YR/SN QTY DESCRIPTION

2 RING 2 BALL BEARING 2 SNAP RING 2 CIRCLIP 1 GEAR 1 SHAFT 1 GEAR 1 ROD 1 PISTON RING 1 BEARING 1 SNAP RING 1 SEAL 1 COVER 4 LOCK WASHER 1 SNAP RING

B110B-BACKHOE LOADER TIER 3 (2008) B115B-BACKHOE LOADER TIER 3 (2008)

1.28.0/ C 05 p1 1/2018

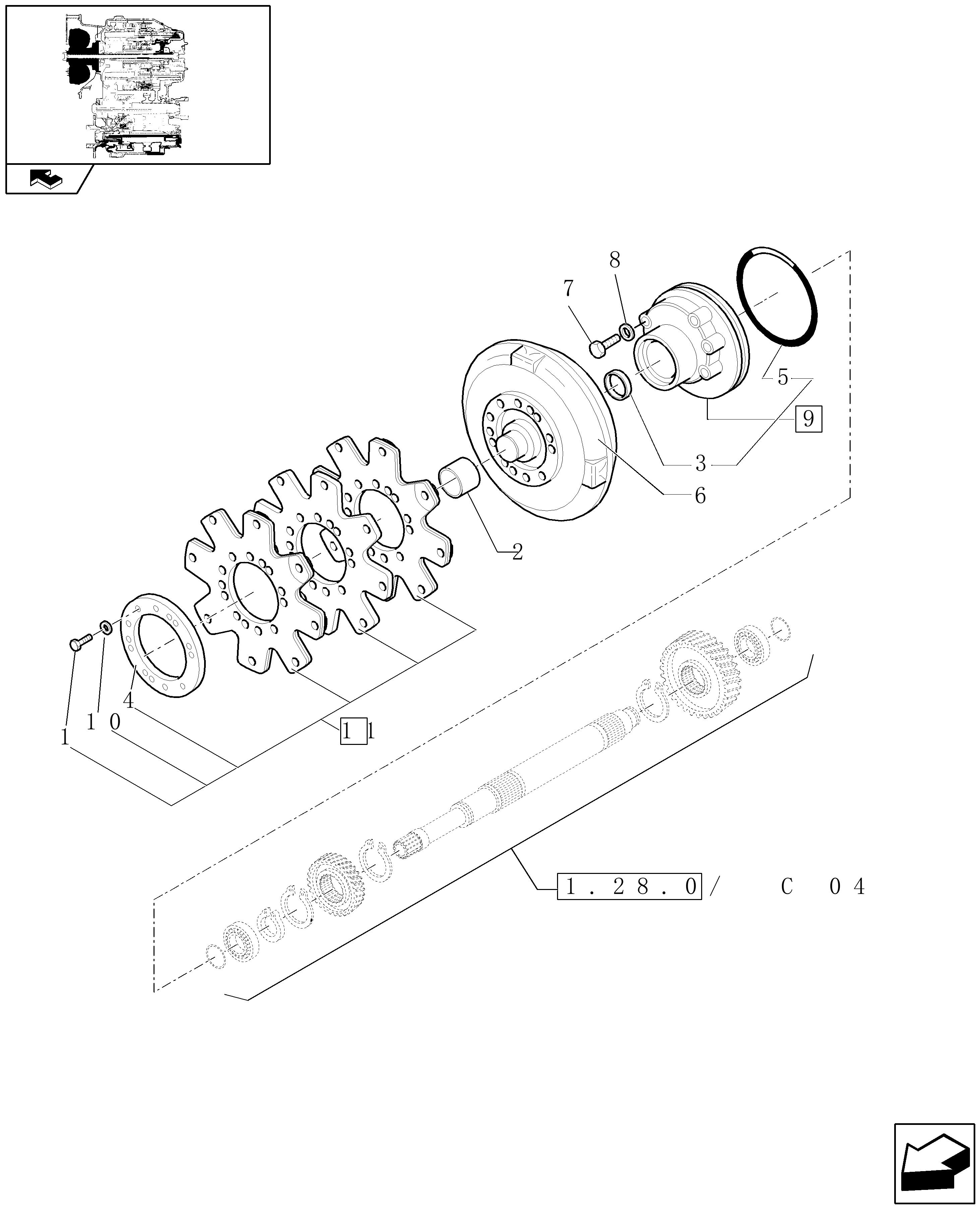

TORQUE CONVERTER AND COMPONENTS (4WD POWER-SHIFT)

TORQUE CONVERTER, CHARGING PUMP AND DRIVE PLATE GROUP
