STABILIZER CYLINDER - LOCK VALVE (SIDE SHIFT) - EU - BEFORE SERIAL NUMBER NAGH00102
1.21.4 01 p1 1/2018

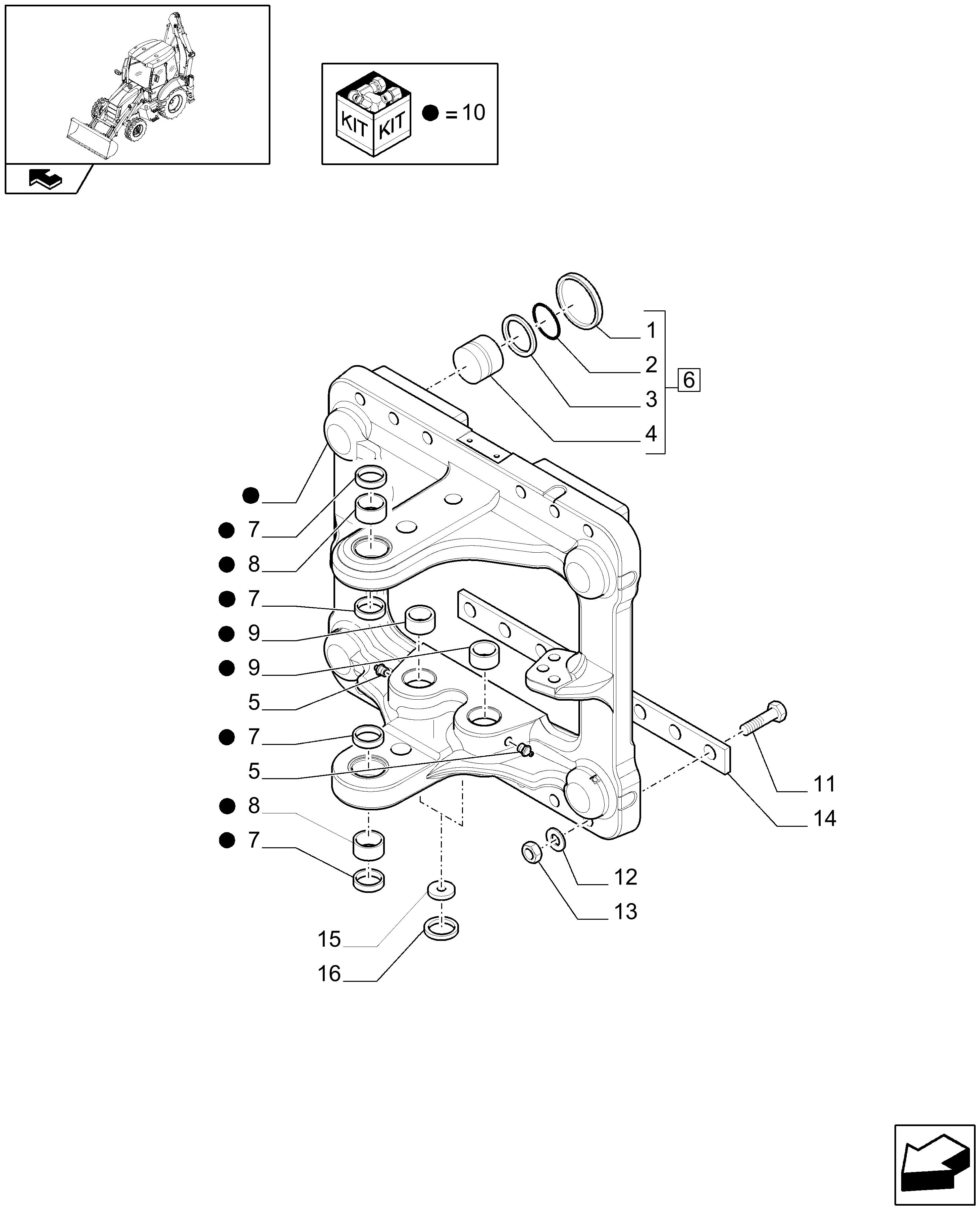

REAR SUPPORT (SIDE SHIFT) - EU - C7396
C7396 Before Date 08 July 2011
REAR SUPPORT (SIDE SHIFT) - EU - C7396
REF FN PART NUMBER
1 85801395 2 14471780 3 85828100 4 85801396 5 83416242 6 1 85828099
7 81875248 8 85700728 9 83910645 10 2 87356803 11 15871934 12 11200679 13 12164521 14 85801373 15 85825426 16 11061876
(1) Includes 1 To 4 (2) Includes 7, 8, 9
1.21.4 01 p1 1/2018
YR/SN QTY DESCRIPTION
4 CAP WASHER 4 O-RING 0.21" Thk x 2.6" ID, -334, Cl 5, 75 Duro 4 BACK-UP RING 66.8mm ID x 76mm OD x 1.7mm Thk 4 PISTON 2 LUBE NIPPLE Straight, 1/8"-27 x 0.66" 4 SHOCK ABSORBER 110mm Bore, 76mm Rod, 60mm W
ASSY 4 SEAL 70mm ID x 80.1mm OD x 5mm Thk 2 BUSHING 70.24mm ID x 86.01mm OD x 50.5mm L 2 BUSHING 70.35mm ID x 80.18mm OD x 32mm L 1 SWING CARRIAGE Yellow, ASSY 12 BOLT Hex, M24 x 2 x 140mm, Cl 10.9 12 LOCK WASHER 24mm ID x 46mm OD x 6mm Thk 12 NUT Hex, M24, 2mm Pitch,19mm High, Cl 10 2 PLATE 2 COVER 2 SNAP RING M78, Int
B100B-BACKHOE LOADER TIER 3 (2008) B110B-BACKHOE LOADER TIER 3 (2008) B115B-BACKHOE LOADER TIER 3 (2008) B90BBACKHOE LOADER TIER 3 (2008)
1.21.4 01A p1 1/2018

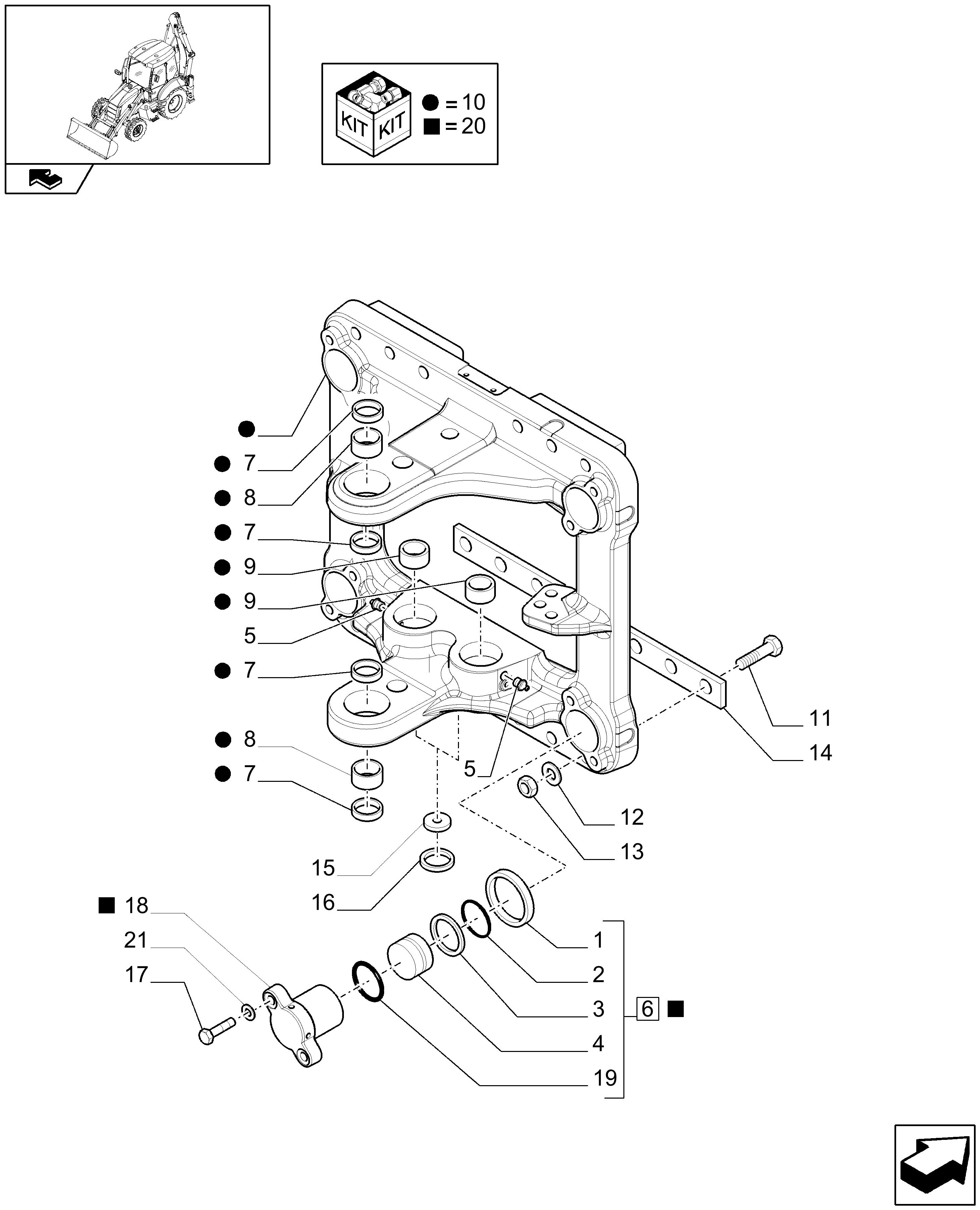

REAR SUPPORT (SIDE SHIFT) - EU - D7396
D7396 After Date 07 Juliy 2011
REAR SUPPORT (SIDE SHIFT) - EU - D7396
REF FN PART NUMBER
1 87583820 2 G100443 3 G100444 4 87705787 5 83416242 6 1 87705784 7 81875248 8 85700728 9 83910645 10 2 84520522 11 15871934 12 11200679 13 12164521 14 85801373 15 85825426 16 11061874 17 374889 18 87705786 19 G100449 20 3 87705760 21 14496931
(1) Includes 1, 2, 3, 4, 19 (2) Includes 7, 8, 9 (3) Includes 6, 18
1.21.4 01A p1 1/2018
YR/SN QTY DESCRIPTION
1 SEAL 66.80mm ID x 76mm OD x 9.45mm Thk 1 SEAL 67.9mm ID x 77.1mm OD x 6.8mm Thk 1 SEALING RING Square, 5.28mm Thk x 62.61mm ID 1 PISTON 2 LUBE NIPPLE Straight, 1/8"-27 x 0.66" 4 PISTON ASSY 4 SEAL 70mm ID x 80.1mm OD x 5mm Thk 2 BUSHING 70.24mm ID x 86.01mm OD x 50.5mm L 2 BUSHING 70.35mm ID x 80.18mm OD x 32mm L 1 PLATE Yellow, ASSY 12 BOLT Hex, M24 x 2 x 140mm, Cl 10.9 12 LOCK WASHER 24mm ID x 46mm OD x 6mm Thk 12 NUT Hex, M24, 2mm Pitch,19mm High, Cl 10 2 PLATE 2 COVER 2 RING M78, Dac 8 BOLT Hex, M16 x 100mm, Cl 8.8 4 CYLINDER 76.2mm Rod 2 WEAR RING Split, 69.85mm ID x 76.2mm OD x 9.52mm Thk 4 CYLINDER ASSY 8 WASHER 17mm ID x 30mm OD x 3mm Thk
1.21.5
p1 1/2018

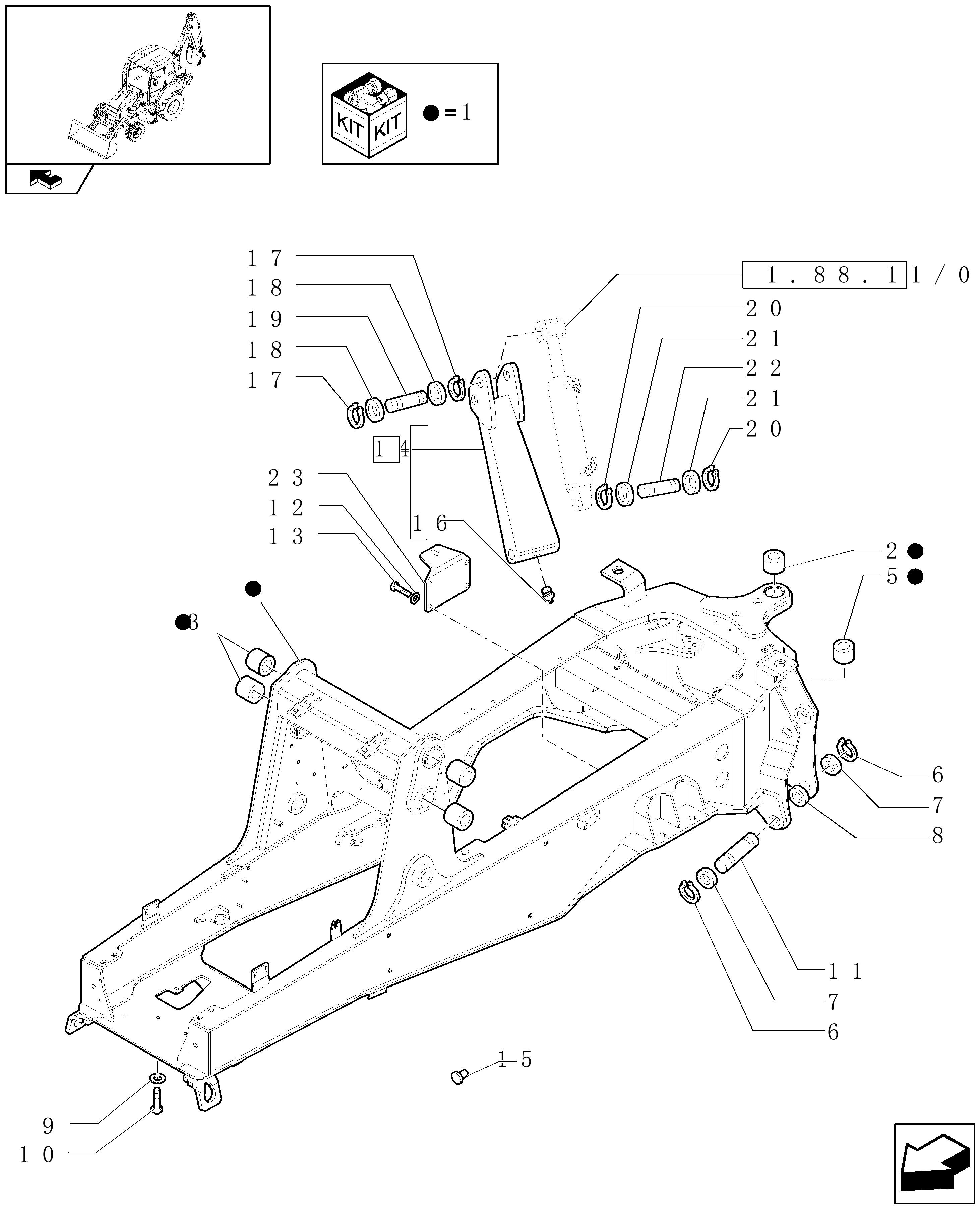

FRAME (CENTER PIVOT)
FRAME (CENTER PIVOT)
REF FN PART NUMBER
1 1 87626855 2 85700728 3 85801110 4 81875248 5 83910645 6 83911020 7 81901837 8 2 85802903 9 10520431 10 15989134
11 83911000 12 83416242 13 11198679 14 85803959 14 85803960 15 85808422 16 81818824 17 83910630 18 83910629 19 83999466 20 83911019 21 83910977 22 85801262 23 85804171 24 15540531
(1) Includes 2 - 5 (2) Only for NA
1.21.5
p1 1/2018
YR/SN QTY DESCRIPTION
1 FRAME ASSY 2 BUSHING 70.24mm ID x 86.01mm OD x 50.5mm L 2 BUSHING 51.15mm ID x 64.98mm OD x 70mm L 4 SEAL 70mm ID x 80.1mm OD x 5mm Thk 2 BUSHING 70.35mm ID x 80.18mm OD x 32mm L 4 SNAP RING 46mm ID, Ext 4 WASHER 2.02" ID x 3" OD x 0.12" Thk 1 INSULATOR 6 WASHER 21mm ID x 35mm OD x 4mm Thk 20x35 6 BOLT Hex, M20 x 1.5 x 100mm, Cl 10.9 Front Axle to Frame fixing 2 PIN 50mm OD x 348mm L 2 LUBE NIPPLE Straight, 1/8"-27 x 0.66" 4 BELLEVILLE WASHER 13mm ID x 24mm OD x 0.6mm Thk 1 STABILIZER ASSY, LH 1 STABILIZER ASSY, RH 2 PLUG Black 2 LUBE NIPPLE 90 Degree, 1/8"-27 NPT 4 RING 36.75,37.10mm ID x 2.72,2.88mm Thk 4 SPACER 40.8mm ID x 61.5mm OD x 3.5mm Thk 2 PIN 40mm OD x 164mm L 4 SNAP RING M45 x 2.88mm Thk, Int 4 SPACER 45.37mm ID x 66.5mm OD x 3.5mm L 2 PIN 45mm OD x 215mm L 1 SUPPORT 4 SCREW Hex, M12 x 1.25 x 35mm, Cl 10.9, Full Thd
1.21.5/01
p1 1/2018

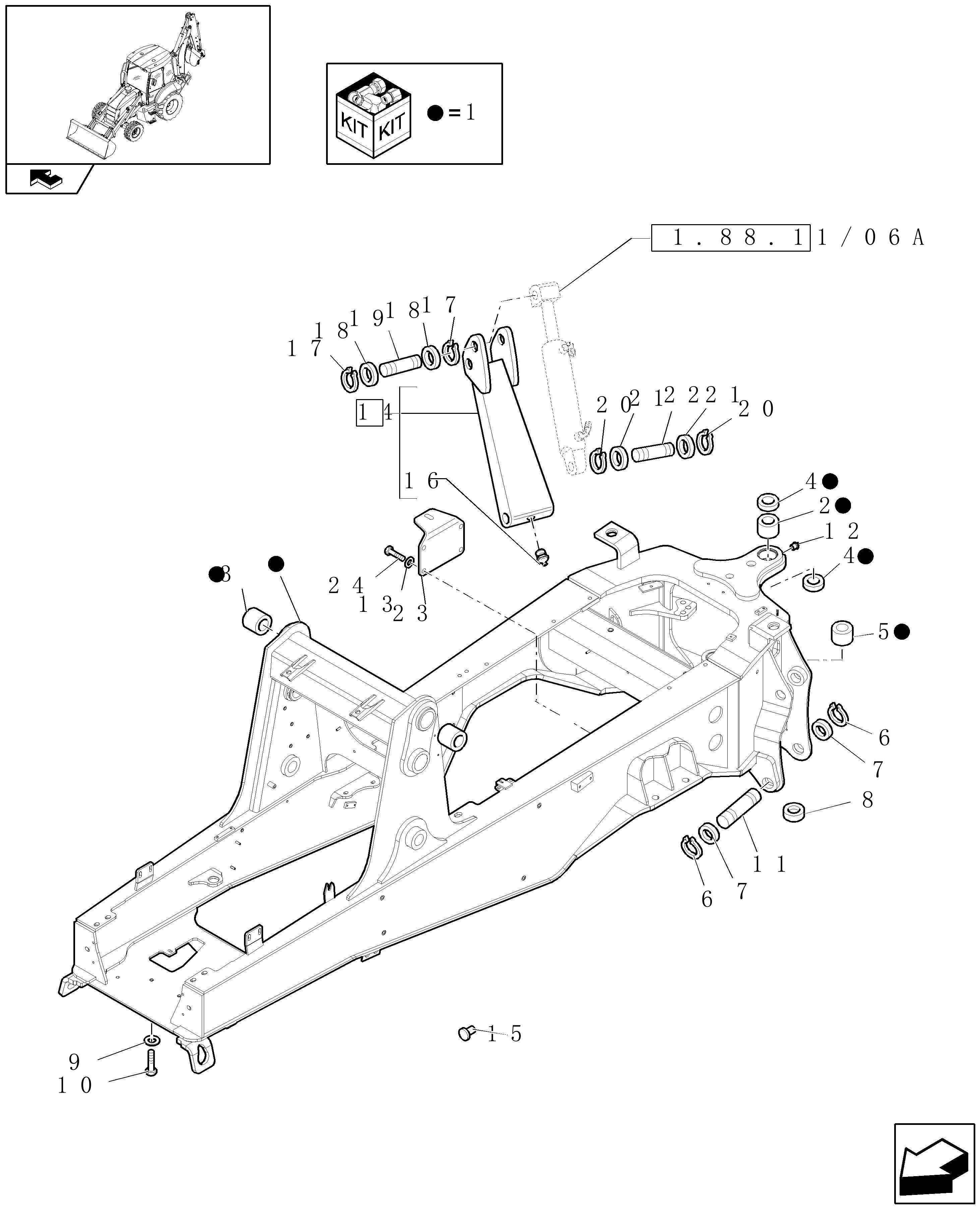

FRAME (CENTER PIVOT)
FRAME (CENTER PIVOT)
REF FN PART NUMBER
1 1 87626864 2 85700728 3 85804468 4 81875248 5 83910645 6 83911020 7 81901837 8 85803517 9 10520431 10 15989134
11 83911000 12 83416242 13 15540531 14 85803960 14 85803959 15 85808422 16 81818824 17 83910630 18 83910629 19 83999466 20 83911019 21 83910977 22 85801262 23 85804171 24 11198679
(1) Includes 2 - 5
1.21.5/01
p1 1/2018
YR/SN QTY DESCRIPTION
1 FRAME ASSY 2 BUSHING 70.24mm ID x 86.01mm OD x 50.5mm L 2 BUSHING 60.15mm ID x 73.98mm OD x 94.5mm L 4 SEAL 70mm ID x 80.1mm OD x 5mm Thk 2 BUSHING 70.35mm ID x 80.18mm OD x 32mm L 4 SNAP RING 46mm ID, Ext 4 WASHER 2.02" ID x 3" OD x 0.12" Thk 1 RUBBER BUSHING 49mm ID x 74mm OD x 104mm L 4 WASHER 21mm ID x 35mm OD x 4mm Thk 4 BOLT Hex, M20 x 1.5 x 100mm, Cl 10.9 Front Axle to Frame fixing 2 PIN 50mm OD x 348mm L 2 LUBE NIPPLE Straight, 1/8"-27 x 0.66" 4 SCREW Hex, M12 x 1.25 x 35mm, Cl 10.9, Full Thd 1 STABILIZER ASSY, RH 1 STABILIZER ASSY, LH 4 PLUG Black 1 LUBE NIPPLE 90 Degree, 1/8"-27 NPT 4 RING 36.75,37.10mm ID x 2.72,2.88mm Thk 4 SPACER 40.8mm ID x 61.5mm OD x 3.5mm Thk 2 PIN 40mm OD x 164mm L 4 SNAP RING M45 x 2.88mm Thk, Int 4 SPACER 45.37mm ID x 66.5mm OD x 3.5mm L 2 PIN 45mm OD x 215mm L 1 SUPPORT 4 BELLEVILLE WASHER 13mm ID x 24mm OD x 0.6mm Thk
B115B-BACKHOE LOADER TIER 3 (2008)
1.21.5/02
p1 1/2018

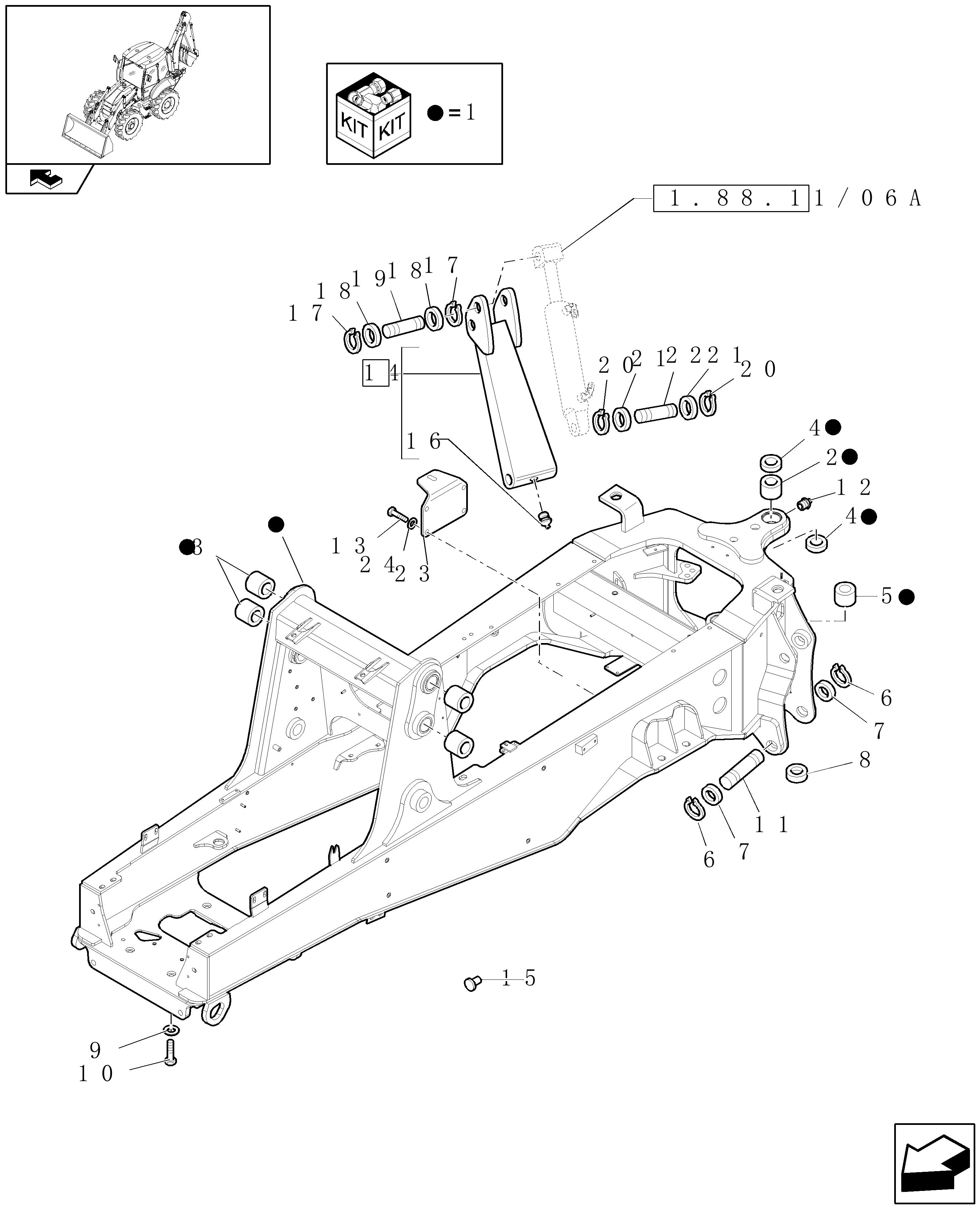

FRAME (CENTER PIVOT)
FRAME (CENTER PIVOT)
REF FN PART NUMBER
1 1 87626861 2 85700728 3 85804468 4 85808422 5 83910645 6 83911020 7 81901837 8 81875248 9 10520431 10 15989134
11 83911000 12 11198679 13 15540531 14 85803960 14 85803959 15 16043421 16 81818824 17 83910630 18 83910629 19 83999466 20 83911019 21 83910977 22 85801262 23 85804171
(1) Includes 2 - 5
1.21.5/02
p1 1/2018
YR/SN QTY DESCRIPTION
1 FRAME ASSY 2 BUSHING 70.24mm ID x 86.01mm OD x 50.5mm L 4 BUSHING 60.15mm ID x 73.98mm OD x 94.5mm L 2 PLUG Black 2 BUSHING 70.35mm ID x 80.18mm OD x 32mm L 4 SNAP RING 46mm ID, Ext 4 WASHER 2.02" ID x 3" OD x 0.12" Thk 4 SEAL 70mm ID x 80.1mm OD x 5mm Thk 6 WASHER 21mm ID x 35mm OD x 4mm Thk 20x35 6 BOLT Hex, M20 x 1.5 x 100mm, Cl 10.9 Front Axle to Frame fixing 2 PIN 50mm OD x 348mm L 4 BELLEVILLE WASHER 13mm ID x 24mm OD x 0.6mm Thk 4 SCREW Hex, M12 x 1.25 x 35mm, Cl 10.9, Full Thd 1 STABILIZER ASSY, RH 1 STABILIZER ASSY, LH 2 BOLT Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd 1 LUBE NIPPLE 90 Degree, 1/8"-27 NPT 4 RING 36.75,37.10mm ID x 2.72,2.88mm Thk 4 SPACER 40.8mm ID x 61.5mm OD x 3.5mm Thk 2 PIN 40mm OD x 164mm L 4 SNAP RING M45 x 2.88mm Thk, Int 4 SPACER 45.37mm ID x 66.5mm OD x 3.5mm L 2 PIN 45mm OD x 215mm L 1 SUPPORT
