Assembling rotors.............................................................4

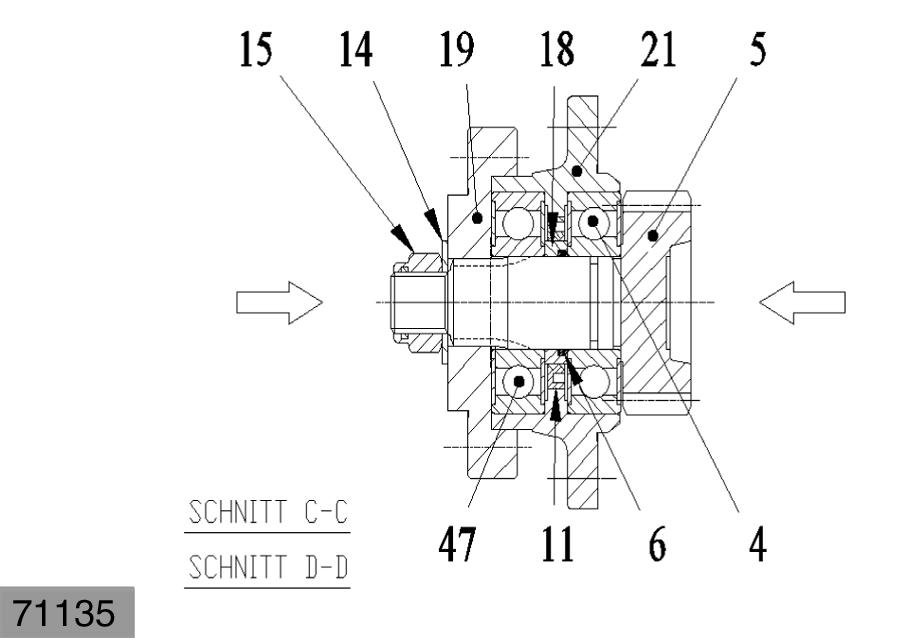

14 Assembling rotors Install roller bearings(4) in bearing flange(21). Install assembled bearing flange(21) on pinion(5). Install o-ring(6) on pinion(5); ensure that the o-ring is not damaged. Grease o-ring(6). Install bush (18).
Caution!
Do not damage radial shaft seal during assembly. –Use suitable tools. When installing the radial shaft seal make sure that there is space between the radial shaft seal(11) and bearings(47) and(4)! –Install radial shaft seal(11) about 0.5mm lower than the bearing base (47).
Install radial shaft seal(11).
Install roller bearings(47) with the outside race fixed with LOCTITE603. Wipe off excess LOCTITE.
Important!
During installation of the mowing disc flange note mark/notches on the parts!
Install mowing disc flange on pinion(5). Install washer(14) and position nut(15) with LOCTITE270. Tighten nut(15) with a torque of 343Nm. Wipe off excess LOCTITE. (Fig.14)
