SECTION 2 – SET UP
D. HYDRAULIC CONNECTIONS
1) Connect motor hoses to steel tubes and run to the pickup motor using the clamps and brackets provided in the crate.
2) Install orifice and 90o elbow into hold down master cylinder. See Operator’s manual “Hydraulic System” section.
E. SHOCK INSTALLATION

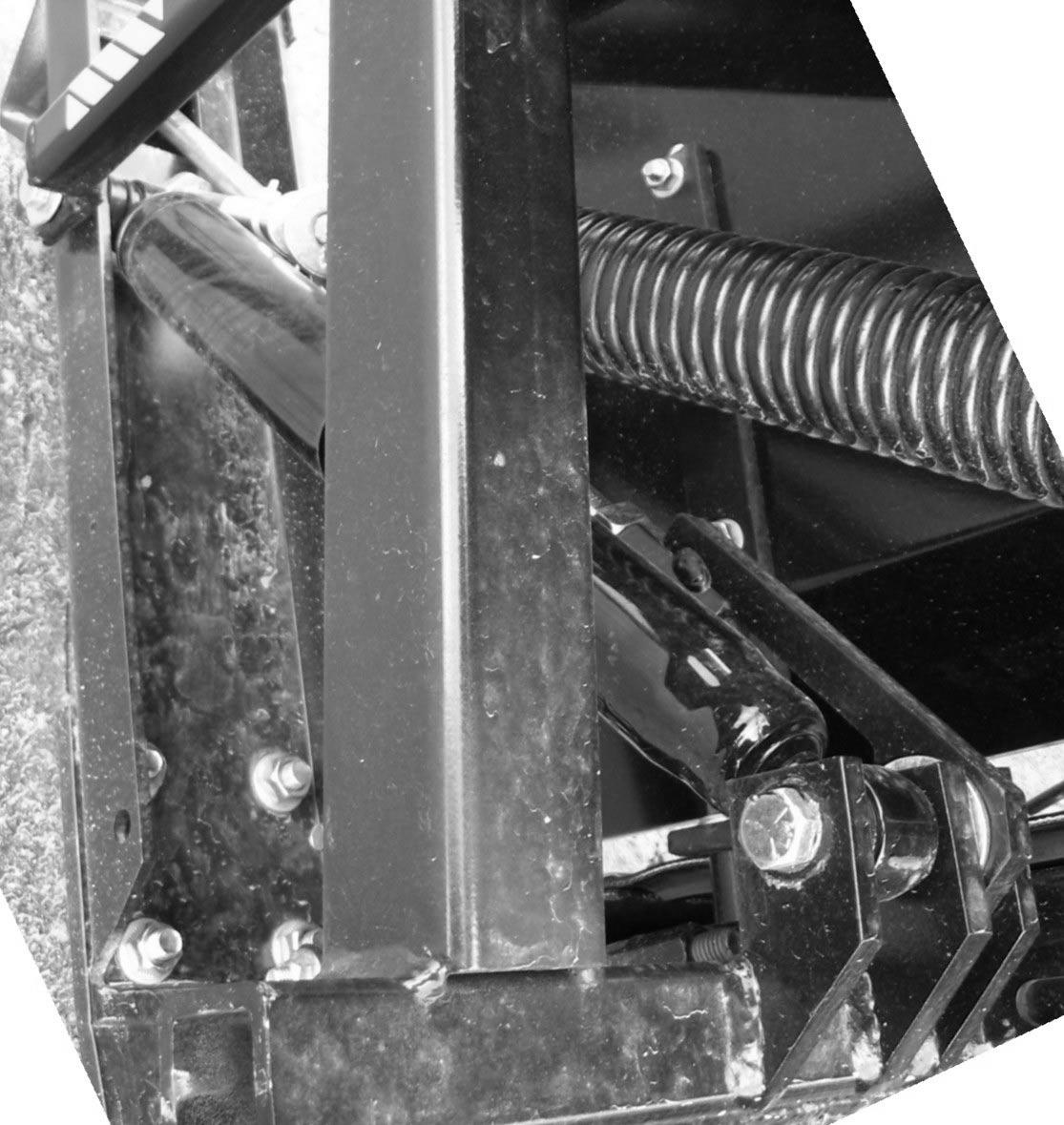

Attach shock to channel upright and frame as shown.
See your parts manual for detailed diagrams and your operator’s manual for suspension adjustment procedure.
