Tine rotors

5

5

6 10

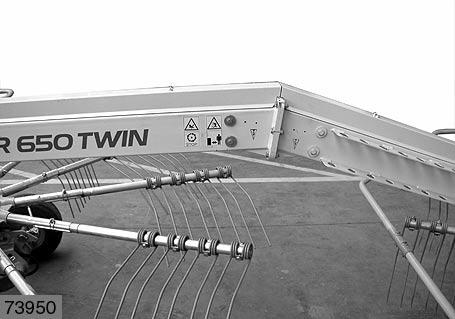

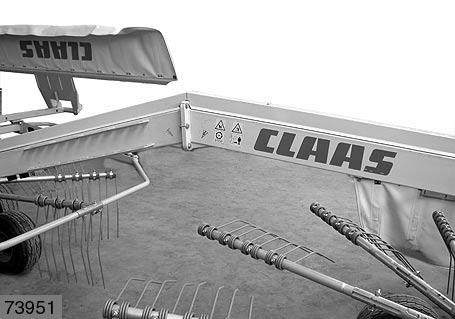

11 Warning symbol 0514876.1(5)

Stay clear while engine is running. (Fig.10,11,12)

12

6 13

14 15

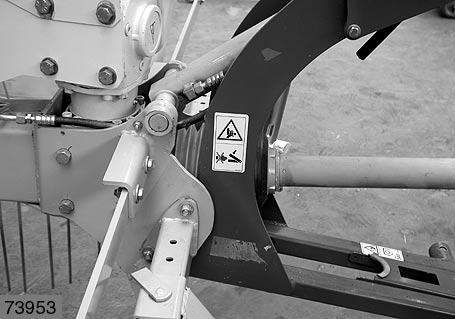

Warning symbol 0516038.0(6)

Never put hand inside zones that are marked as crushing hazard, as long as the parts can move. (Fig.13,14,15)
