Swing lighting bracket upwards

4

5

4 3

6 19

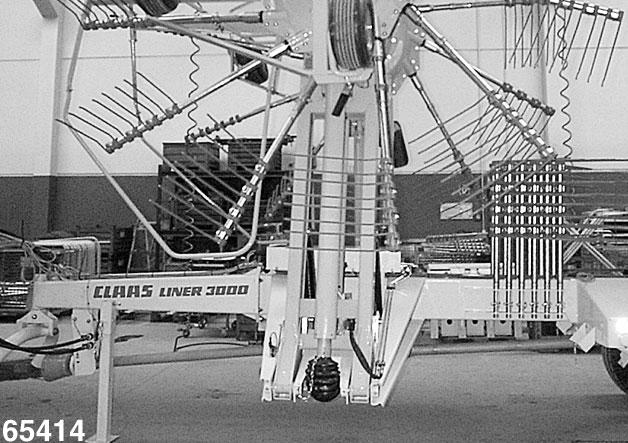

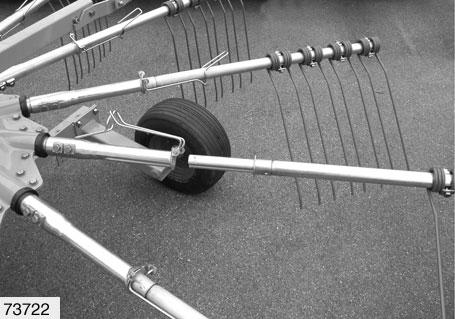

From Serial No. 60501858 onwards • Fold the spring brackets(4) inwards and hook into the fixing screw(6). • Remove the tine arms(3) from the tine arm mounts(5), and • insert them in the racks(7). (Fig.19,21)

Attention!

When the rotors are running, unsecured spring brackets(4) can be damaged. –Secure the spring brackets of the removed tine arms.

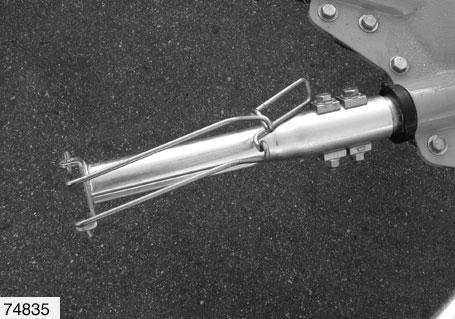

• If necessary, seal the ends of the mounting tubes –see Parking the machine at sub-zero temperatures, page44.

20

65414

1

2 7

21

22 9.4.2 Swing lighting bracket upwards

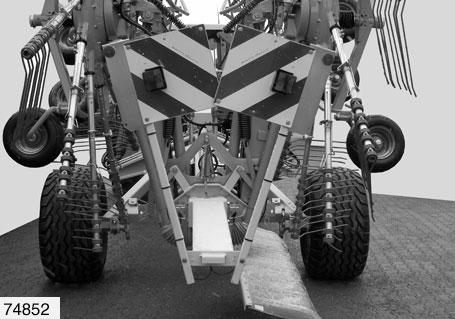

To allow the machine to pass through narrow entrances, the lighting bracket can be folded up. Proceed as follows: • Swing warning plates(2) upwards, and • secure with a screw(1). (Fig.22)
