Coupling the swath displacer to the mower units.............6 Setting the belt conveyor and mower unit in transport

64532F

4

67214

1 2

4

4 4 4 Use as a front-rear combination

NOTE!

The DISCO8550ASPlus (withswath displacers) can only be operated as a front-rear combination!

(Fig.4)

DANGER!

Work on the mower unit may only be carried out with the drive disengaged and the engine switched off. – Remove the ignition key! Only work on a raised mower unit when it is securely supported. – Use suitable stands!

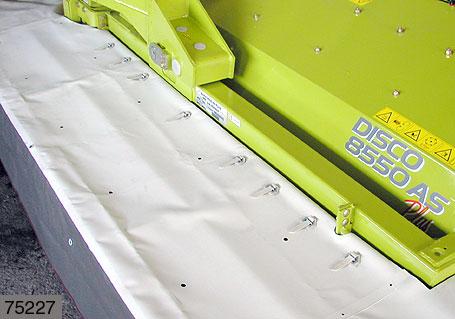

Safety frame side mower units

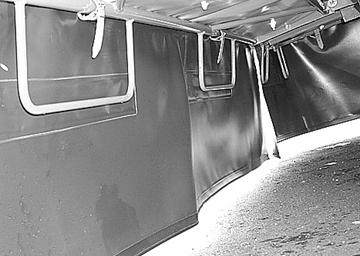

Fit the safety frame in accordance with Fig.7 and attach it to the conditioner framework. Place the safety guards(1) over the safety frames(2) of the side mower units and secure with the belts(4). (Fig.5,6)

5

6 NOTE!

For easier attachment of the belts, the lower screws(3) can be removed and the safety frame swung upwards out of the way. (Fig.7)
