REMOVING ONLINE CONTROLS OF THE “R76” SOLENOID VALVES....................................................................G1

multifunction armrest

– Coat the screws with Loctite(243). – Tighten the 3 screws at a torque of 0,6 daN.m. – Connect the “x4” and “x2” connectors. – To affix the protection, refer to 'gluing the protection' in this group.

Removing online controls of the “R76” solenoid valves

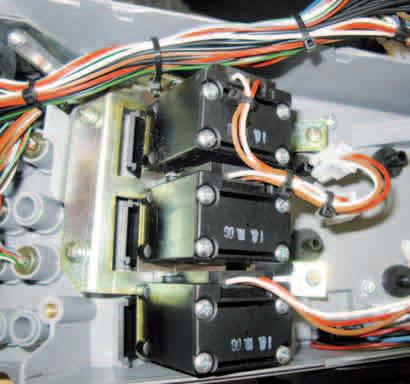

– Removing the “MFAA100” electronic module. – Disconnect the connectors of online controls of the “R76” solenoid valves. – Cut the strap (1). – Remove the screws (2). – Remove all online controls of the solenoid valves.

Note: Before removing an online control of a solenoid valve, mark its position and the connector number.

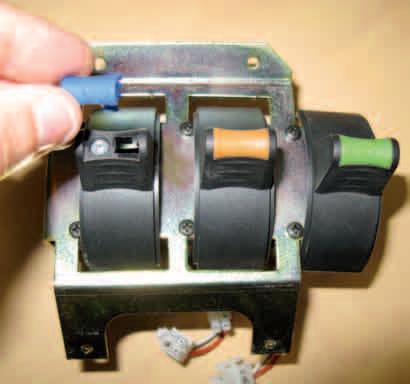

– To remove an online control of a solenoid valve: – Remove the panel (1). – Loosen screw (2).

1

2

R76 R76

601msm0h

3 1

2

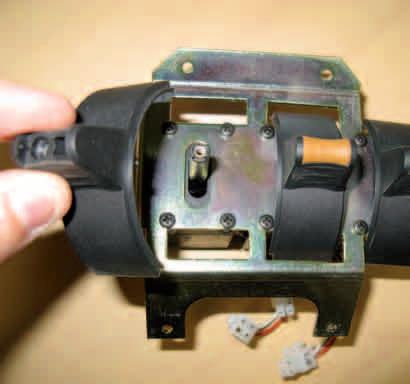

– Remove the panel (3). – Remove the screws (4). – Remove the control (5).

601msm0i

3 4

5

4 2

Fig. 35

Fig. 36
