Description
C
Engine
Y320 E
B
A15 D
101msm58 Fig. 1 101msm59 Fig. 2
Description

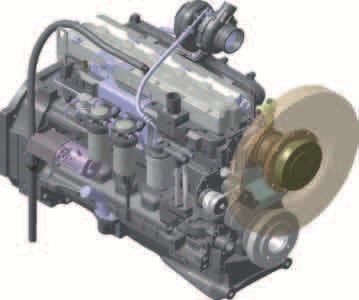

A15 “ENG” engine module. B Injection system “common rail”. C Turbocharger. D Heating flange. E Identification plate. Y320 Injector.
– “Powertech E” engines are fitted with a common rail injection system similar to that on the “Powertech Plus”, except that the injectors are fitted outside the cylinder head cover. This faily of engines features a fixed geometry turbocharger, an internal exhaust gas recycling system and 2 valves per cylinder.
