Assembly

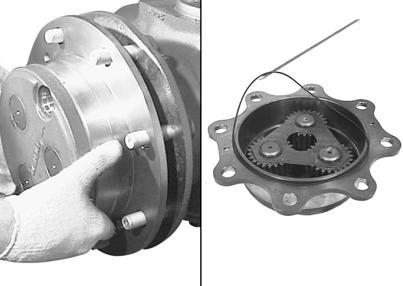

–Unscrew and remove both fastening screws (1) of the planetary carrier (3) with a wrench.

–Remove the planetary carrier (3) from the wheel hub and collect the relative O-Ring (4). –Position the planetary carrier (3) on a workbench and check its wear conditions.

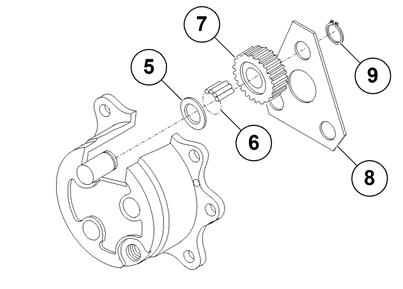

–If required replace the planetary gears as follows: • remove the lock rings (9) on every pin; • remove the triangular plate (8); • remove the planetary gears (7) from the pins; • collect the needle bearings (6), checking their conditions; • collect the washer (5).

Fig.14

Fig.15

Fig.16

Assembly

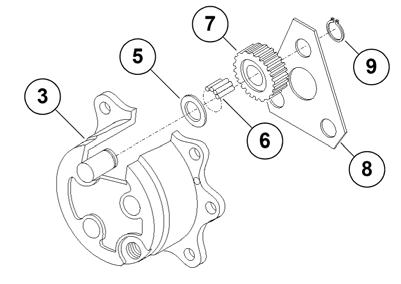

–Some of the following pictures may not show exactly your axle, but the indicated operations are correct anyway. –Collect all epicyclic reduction gear parts: the planetary carrier (3), the thrust washers (5), the needle bearings (6), the planetary gears (7), the triangular plate (8) and the snap rings (9) of every pin. Note: with new planetary gears is advisable to assembly new roller bearings.

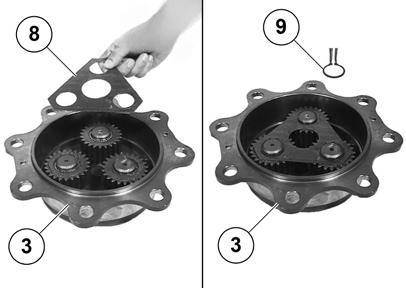

–Position the planetary carrier on a workbench. –Insert the thrust washers (5) and the epicyclic gears (7) in the planetary carrier pins. –Insert the needle bearings (6) in the epicyclic gears (7). Note: grease well the needles. –Assemble the triangular plate (8) and the related snap rings (9).

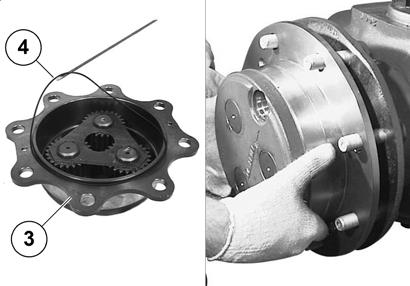

–Assemble a new O-ring (4) on the planetary carrier (3). –Assemble the epicyclic reduction gear on the wheel hub.

Fig.17

Fig.18

Fig.19
