DISENGAGE TRACKS

DISENGAGE TRACKS

Ravensworth Service Equipment Crawler Units

Prior to towing the crawler units, the hub brakes must be disengaged. Failure to disengage the brakes will cause damage to the equipment.

DANGER: Before attempting to free-wheel the machine, ensure the following:

1. Hydraulic power to the crawler circuit is switched off

2. Machine is positioned on a level ground and not moving

3. Towing vehicle has the capacity to brake this additional load in up and down grades

4. Towing vehicle is attached to this machine

Once both hubs are disengaged, this machine will not have any sort of brake capability and there is a danger of running away on grades if the towing vehicle doesn’t have the braking capacity.

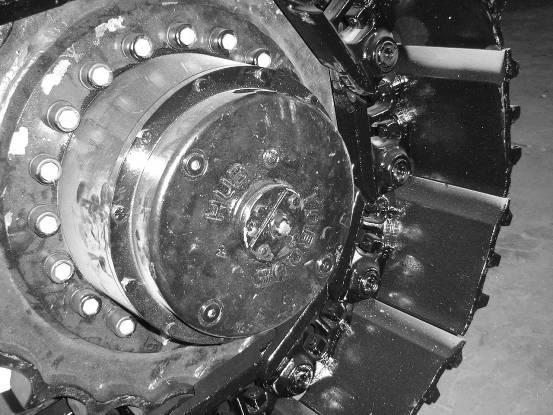

Torque Hub Disengage Cap in normal position; hub engaged

The picture above shows the normal tram condition of the Torque Hub Disengage Cap. The cap is secured by two ¼”UNC hex head bolts.

Ravensworth Service Equipment Crawler Units

Removing the cap bolts

1. Remove the two UNC bolts using suitable socket spanner.

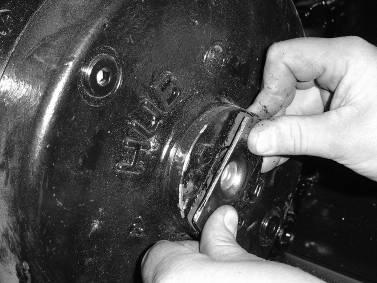

Cap removed

2. Remove the Disengage cap as shown above. Do not remove any other component from the

Hub.

Ravensworth Service Equipment Crawler Units

Reversing the disengage cap

3. Reverse the Disengage cap as shown above.

Using the over turned cap to push in the pin.

4. Push the pin in with the reversed cap and position as shown above.

Ravensworth Service Equipment Crawler Units

Secure the cap with the two bolts.

5. Tighten the two bolts with the appropriate spanner.

Cap secured and the hubs disengaged.

6. The hub is now disengaged and the brakes not operating. Repeat the same procedure with the other Torque Hub. The Brake is now disengaged and ready for towing.

Ravensworth Service Equipment Crawler Units

Once the vehicle has been towed to the required location, the disengage cap on both hubs must be reversed to tram condition, as shown below, so that the brakes are activated before detaching the towing vehicle.
