Installation of Hydraulic Hoses
from CAT Feeder Breaker Ravensworth Service Equipment Crawler Units (Size 9) Operation & Maintenance Manu
Ravensworth Service Equipment Crawler Units
Installation of Hydraulic Hoses
Lay the hydraulic hoses properly behind the brackets and clamps provided for them. Always lay hydraulic hoses so that they: Always have a little slack.

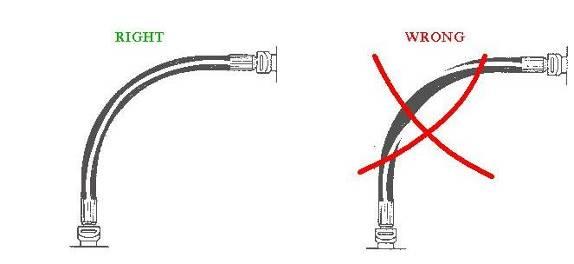

Are not twisted.

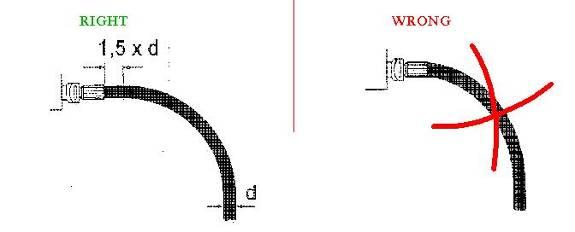

Are not bent directly behind the connections (distance min. 1.5 x nominal diameter).
Ravensworth Service Equipment Crawler Units
Cannot chafe.
Are not kinked. Do not have to withstand tensile strains. Are protected against thermal radiation. Are accessible at all times. Push hydraulic hoses into the sockets only by hand. Never try to drive the hydraulic hoses in with a tool as this will damage the connections. When installing the hydraulic hoses, ensure that they cannot be: Torn out. Kinked. Crushed. Driven over. Twisted. Damaged by the movement of the machine.
