EXHAUSTSYSTEM

Blakefield South FBL-55H Service Manual

EXHAUST SYSTEM General description

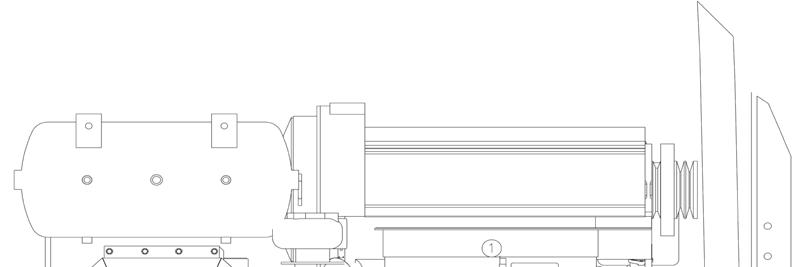

The exhaust system is designed to be used in a hazardous zone of an underground coal mine. The system comprises of: 1) Exhaust Manifold 2) Turbocharger 3) Downpipe/Purifier 4) Exhaust Conditioner 5) Particulate Filter 6) Outlet Pipe. The surface temperature of the system is controlled by water jacketed components. While the exhaust gas temperature is controlled via a wet bath type exhaust conditioner.

EnginePackage

Safety precautions

The following safety precautions are not intended to be exhaustive. Safe work practices should be applied to heavy machinery operation and servicing. ALWAYS give the engine an opportunity to cool down before performing lubrication system servicing. ALWAYS wear personal protective equipment including safety glasses, gloves and suitable clothing, and dust mask particularly when accessing the exhaust system. ALWAYS be aware of, and isolate, other forms of energy and pinch points (fan, belts, pulleys) when accessing the engine compartment including pneumatic stored pressure, engine coolant pressure and other heat sources such as engine block and exhaust system components. ALWAYS replace all guards and covers before returning the machine to service.

WARNING Wear suitable eye protection, gloves and dust mask when performing work on the exhaust systems as particulates may be harmful to the respiratory system. Immediately wash any particulate matter from skin with warm, soapy water.
