Blakefield South FBL-55H Service Manual

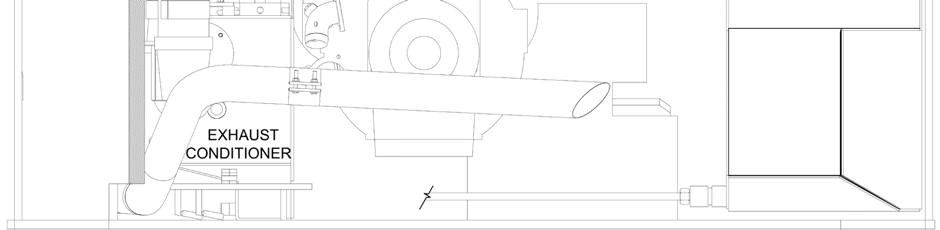

EXHAUST MAKE UP TANK

There is one make up tank that supplies water to the exhaust conditioner. Water flows from the tank to the exhaust conditioner via one hose. There is also a breather on the top of the tank. The make up tank is pressurised at 7 psi from a pressure reducing valve in the pneumatic circuit.

Engine Assembly
